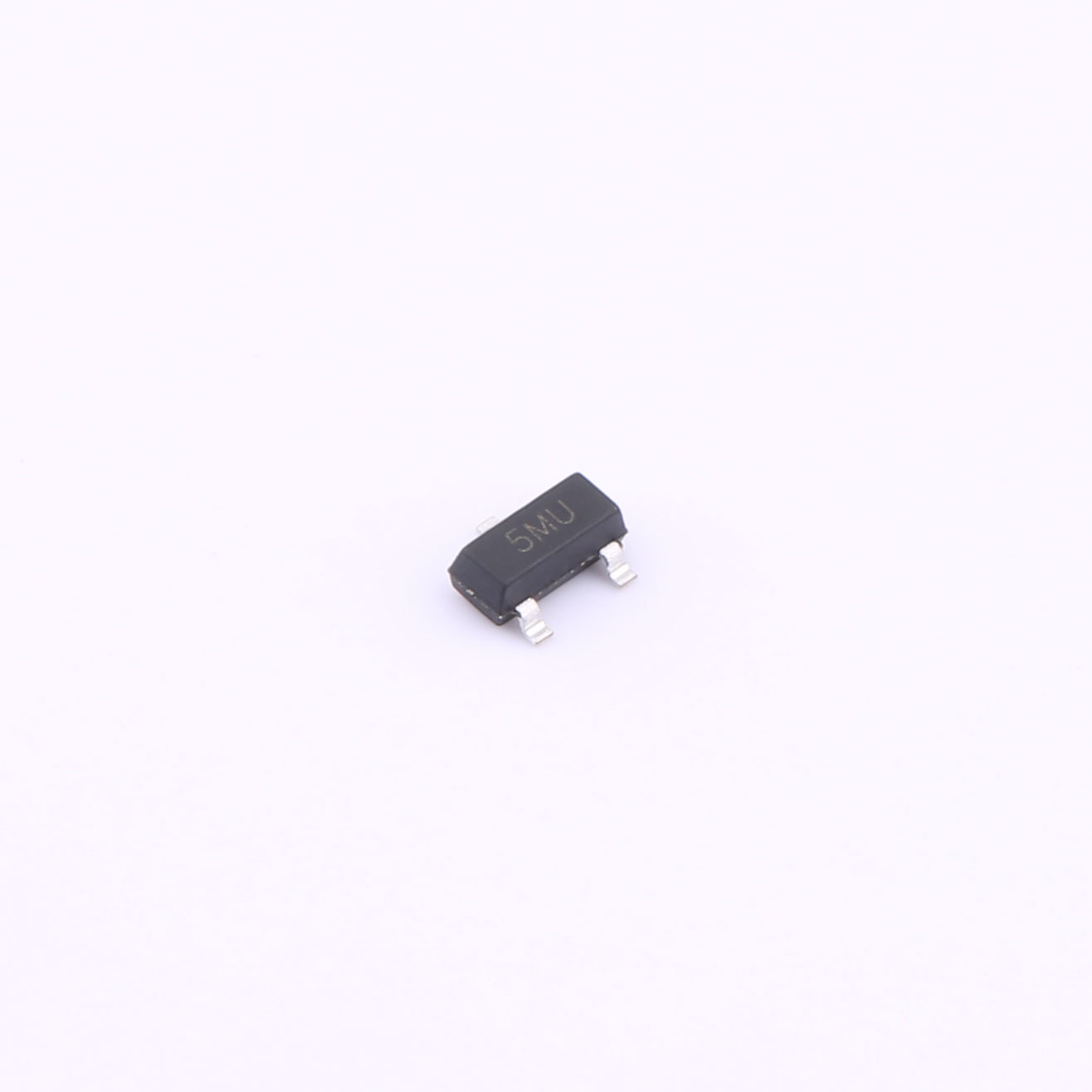

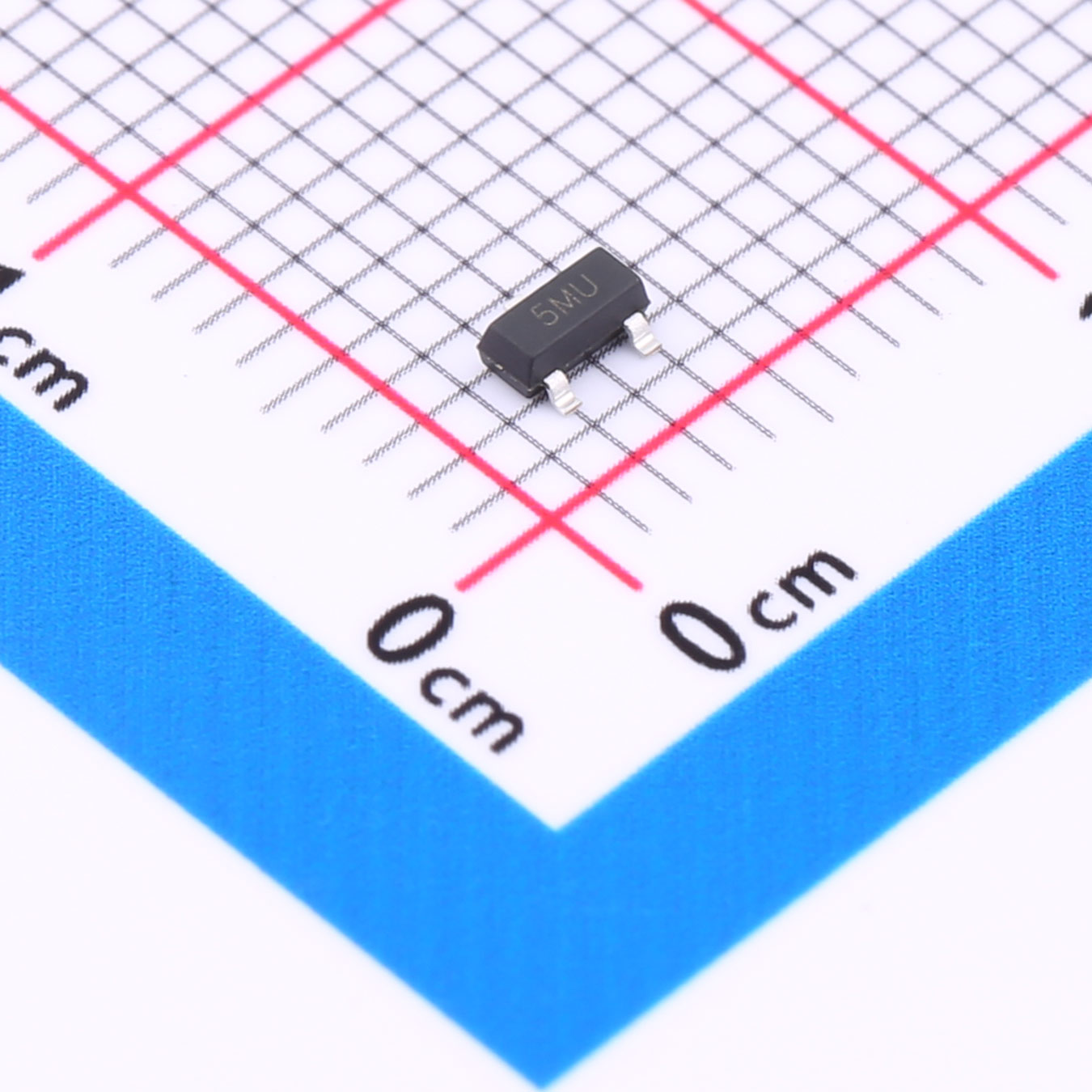

The SLESDSLC5V0E is a high-performance Electrostatic Discharge (ESD) protection diode designed to safeguard sensitive electronic components from transient voltage spikes caused by ESD events. Encapsulated in an SOT-23 package, this diode offers robust protection in a compact form factor suitable for integration into various electronic designs.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLESDSLC5V0E is a high-performance Electrostatic Discharge (ESD) protection diode designed to safeguard sensitive electronic components from transient voltage spikes caused by ESD events. Encapsulated in an SOT-23 package, this diode offers robust protection in a compact form factor suitable for integration into various electronic designs.

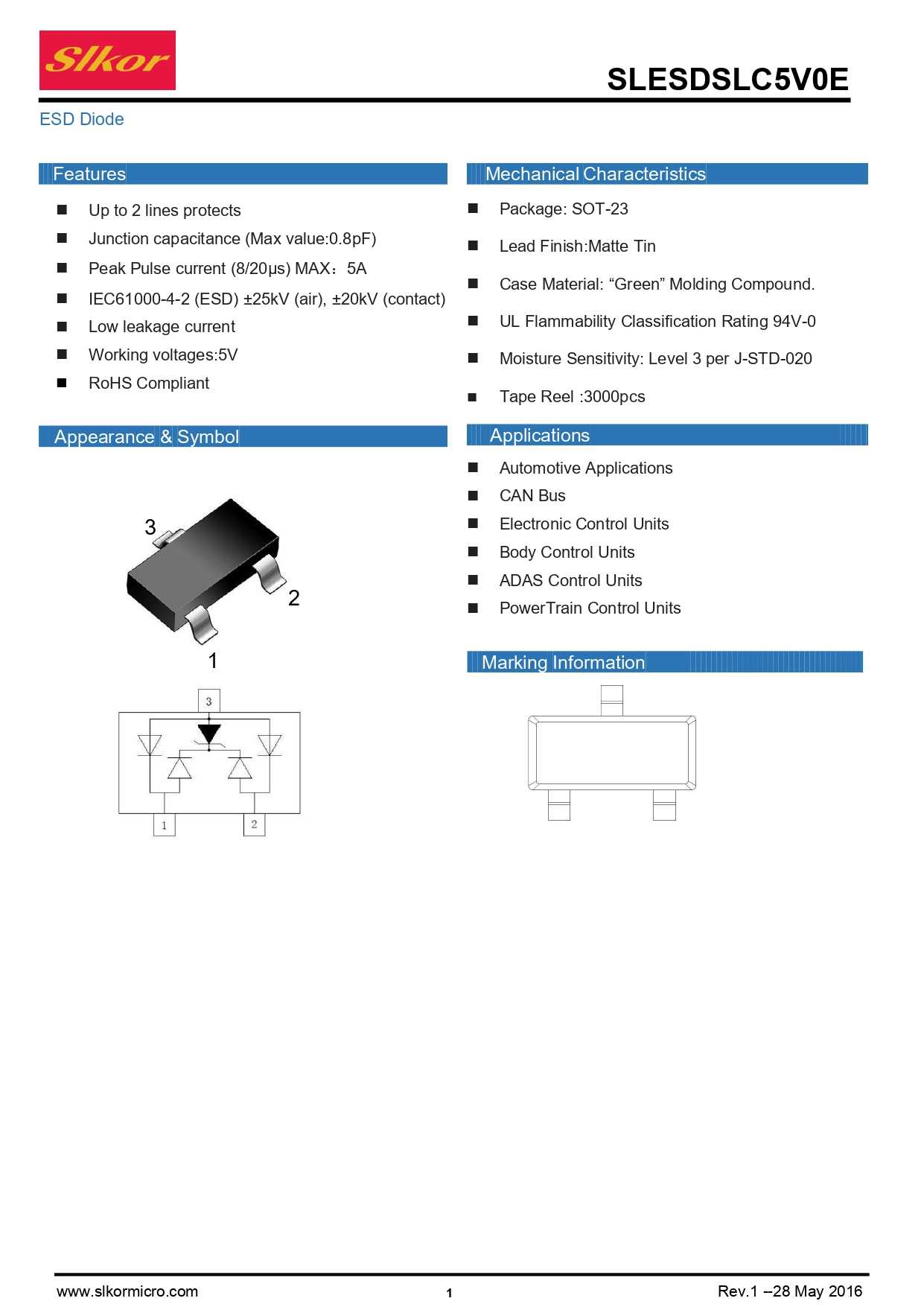

Features
●Up to 2 lines protects
●Junction capacitance (Max value:0.8pF)
●Peak Pulse current (8/20μs) MAX：5A
●IEC61000-4-2 (ESD) ±25kV (air), ±20kV (contact)
●Low leakage current
●Working voltages:5V
●RoHS Compliant
Applications
●Automotive Applications
●CAN Bus
●Electronic Control Units
●Body Control Units
●ADAS Control Units
●PowerTrain Control Units
| File Name | Title | Description |
|---|---|---|
| C7496544_静电和浪涌保护(TVS-ESD)_SLESDSLC5V0E_规格书_WJ412155.PDF | C7496544_静电和浪涌保护(TVS-ESD)_SLESDSLC5V0E_规格书_WJ412155 | - |
