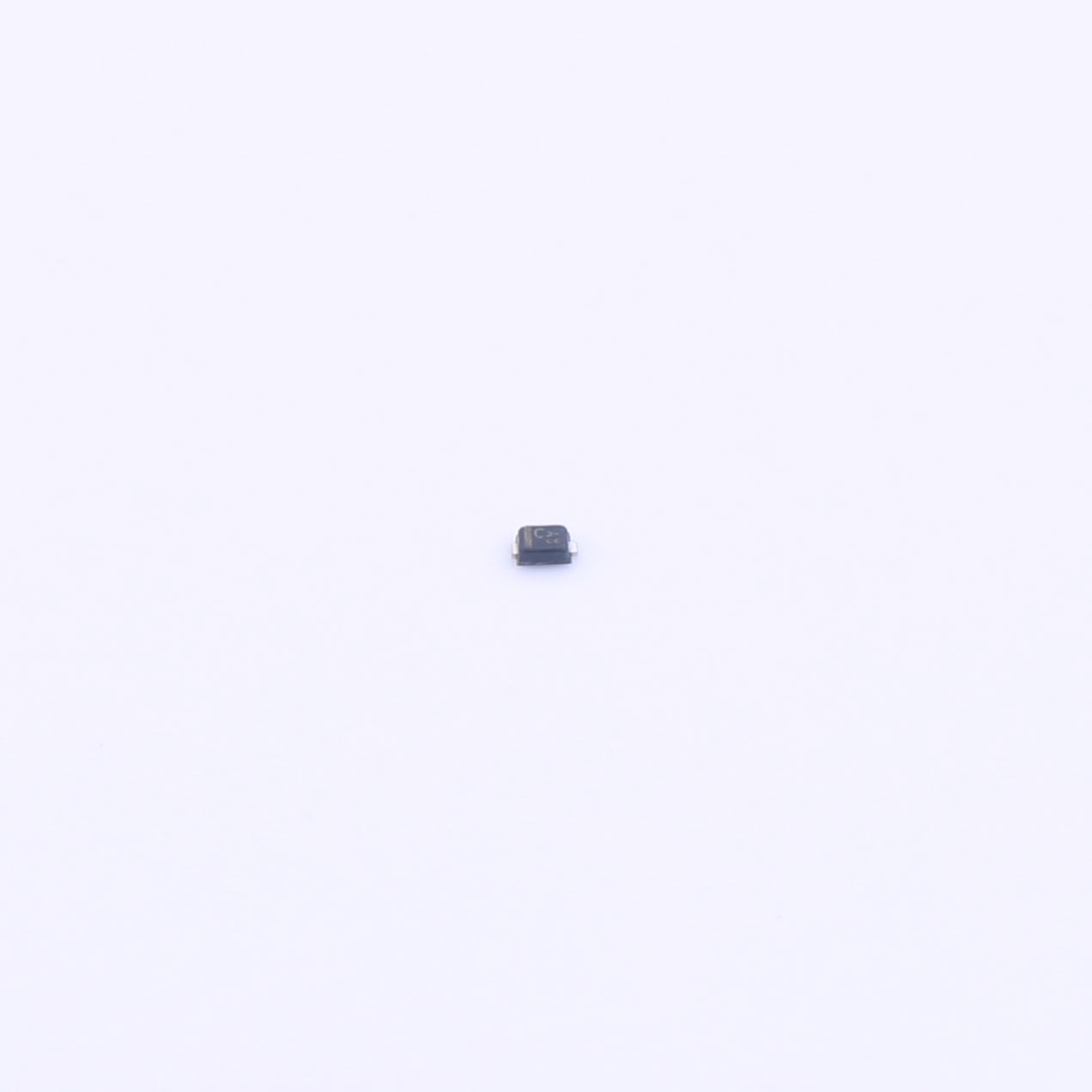

The SLESD9B5.0ST5G is designed to protect voltage sensitive components from ESD and transient voltage events.Excellent clamping capability,low leakage,and fast response time,make these parts ideal for ESD protection on designs where board space is at a premium. Beacuse of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space is at a premium.
Download datasheet Inquiry
Transient Voltage Suppressors for ESD Protection
Our adventage
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt forproduction outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLESD9B5.0ST5G is designed to protect voltage sensitive components from ESD and transient voltage events.Excellent clamping capability,low leakage,and fast response time,make these parts ideal for ESD protection on designs where board space is at a premium. Beacuse of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space is at a premium.
Features
● Small Body Outline Dimensionsz
● Low Body Heightz
● Peak Power up to 150 Watts @ 8 x 20 μs Pulsez
● Low Leakage currentz
● Response Time is Typically < 1 nsz
● ESD Rating of Class 3 (> 16 kV) per HumanBody Modelz
● IEC61000?4?2 Level 4 ESD Protectionz
● IEC61000?4?4 Level 4 EFT Protection
Applications
● Cellular phonesz
● Portable devicesz
● Digital camerasz
● Power supplies

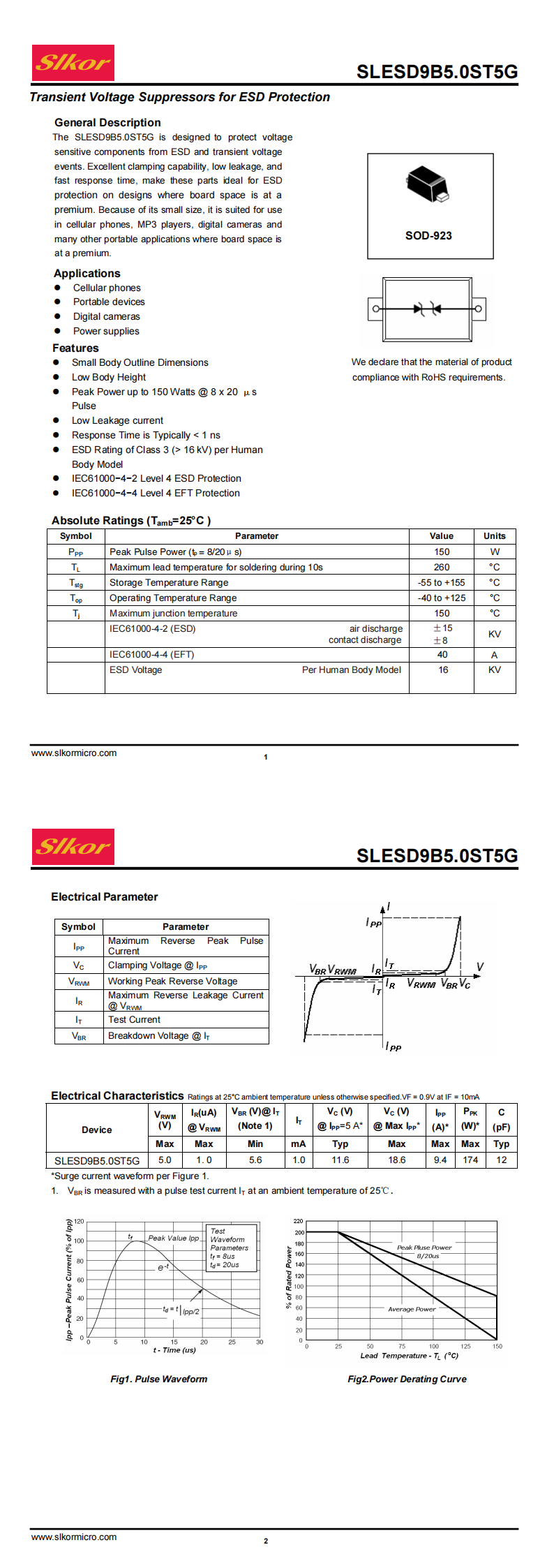

| File Name | Title | Description |
|---|---|---|
| SLESD9B5.0ST5G SOD-923.pdf | SLESD9B5.0ST5G SOD-923 | - |
