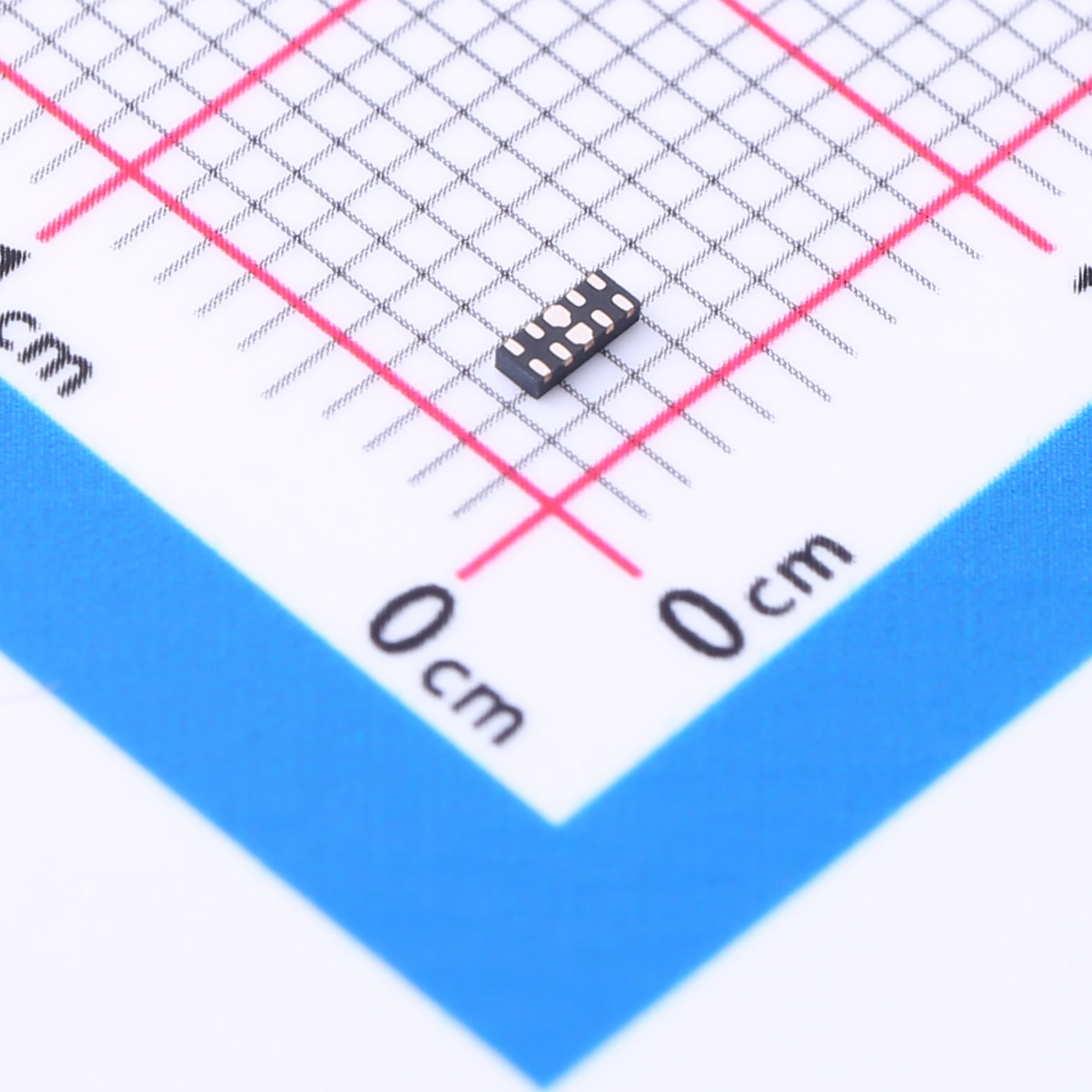

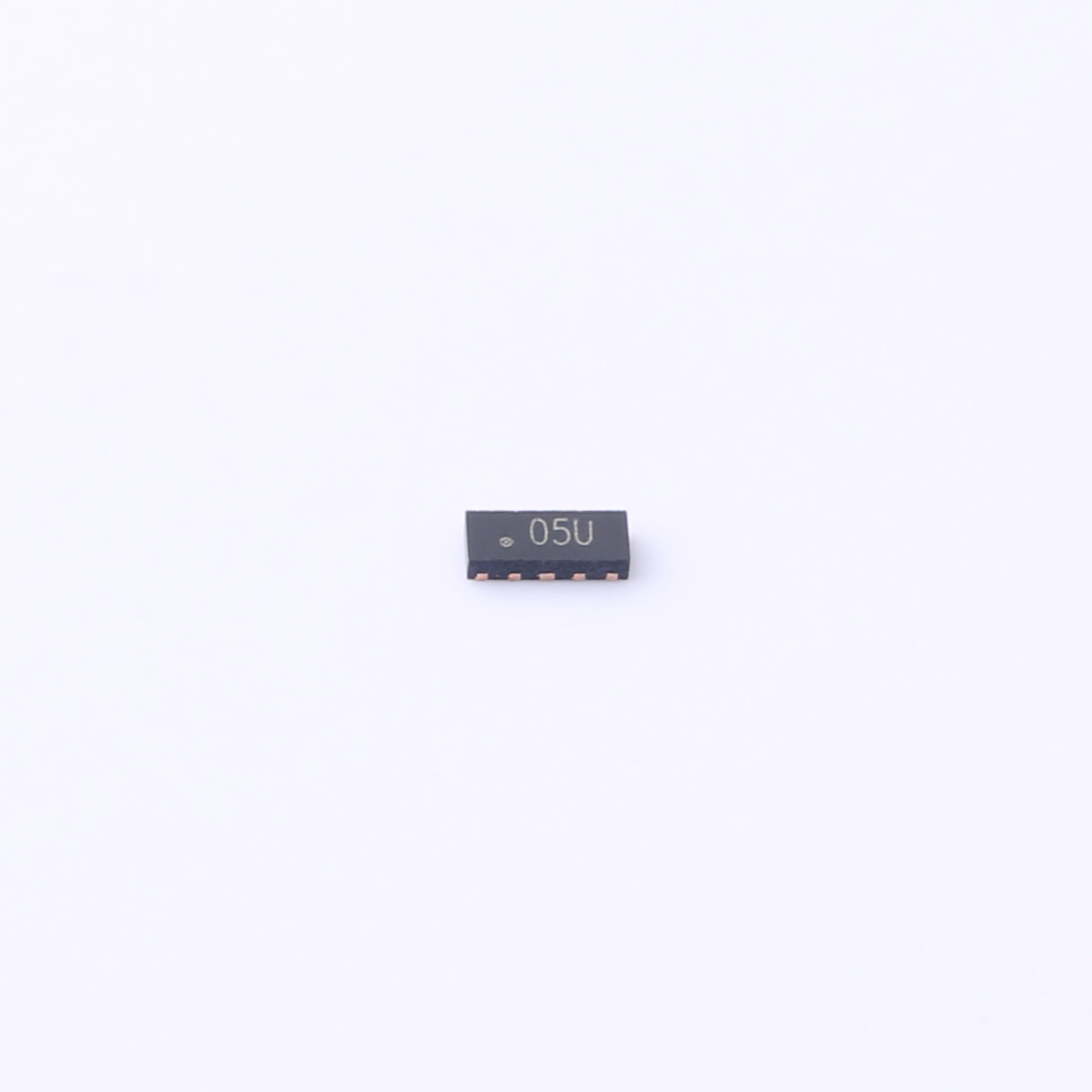

The SLESD5304D provides excellent ESD protection for electronic circuits operating at 5V, ensuring durability and reliability in various demanding environments. Its compact DFN2510 package is well-suited for modern electronic designs requiring space-efficient solutions without compromising performance.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLESD5304D provides excellent ESD protection for electronic circuits operating at 5V, ensuring durability and reliability in various demanding environments. Its compact DFN2510 package is well-suited for modern electronic designs requiring space-efficient solutions without compromising performance.
Features
● Ultra-Low capacitance:0.5pF(typ.)
● Reverse stand-off voltage:5V
● IEC 61000-4-2 (Air): ±20KV
IEC 61000-4-2 (Contact): ±15KV
Application
● USB 3.0, USB 2.0
● HDMI 1.3/1.4, Display Port 1.3, eSATA
● Unified Display Interface (UDI)
● Digital Visual Interface (DVI)
● High speed serial interfaces
| File Name | Title | Description |
|---|---|---|

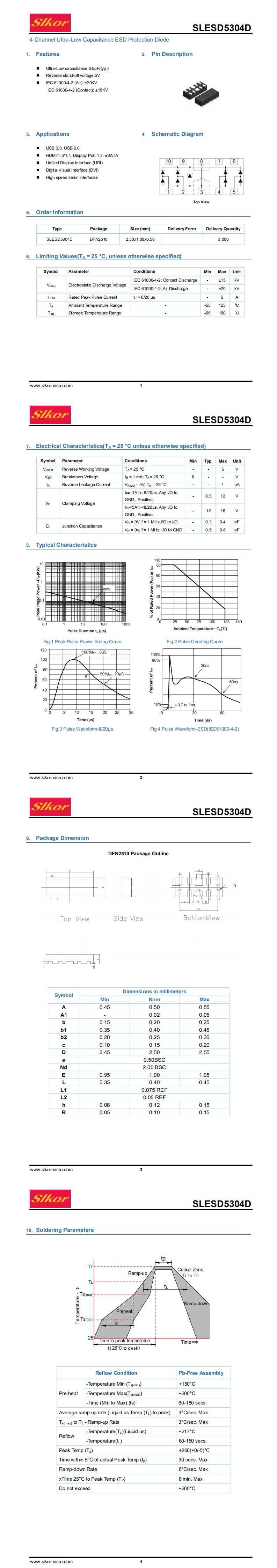

| SLESD5304D DFN2510.pdf | SLESD5304D DFN2510 | - |
