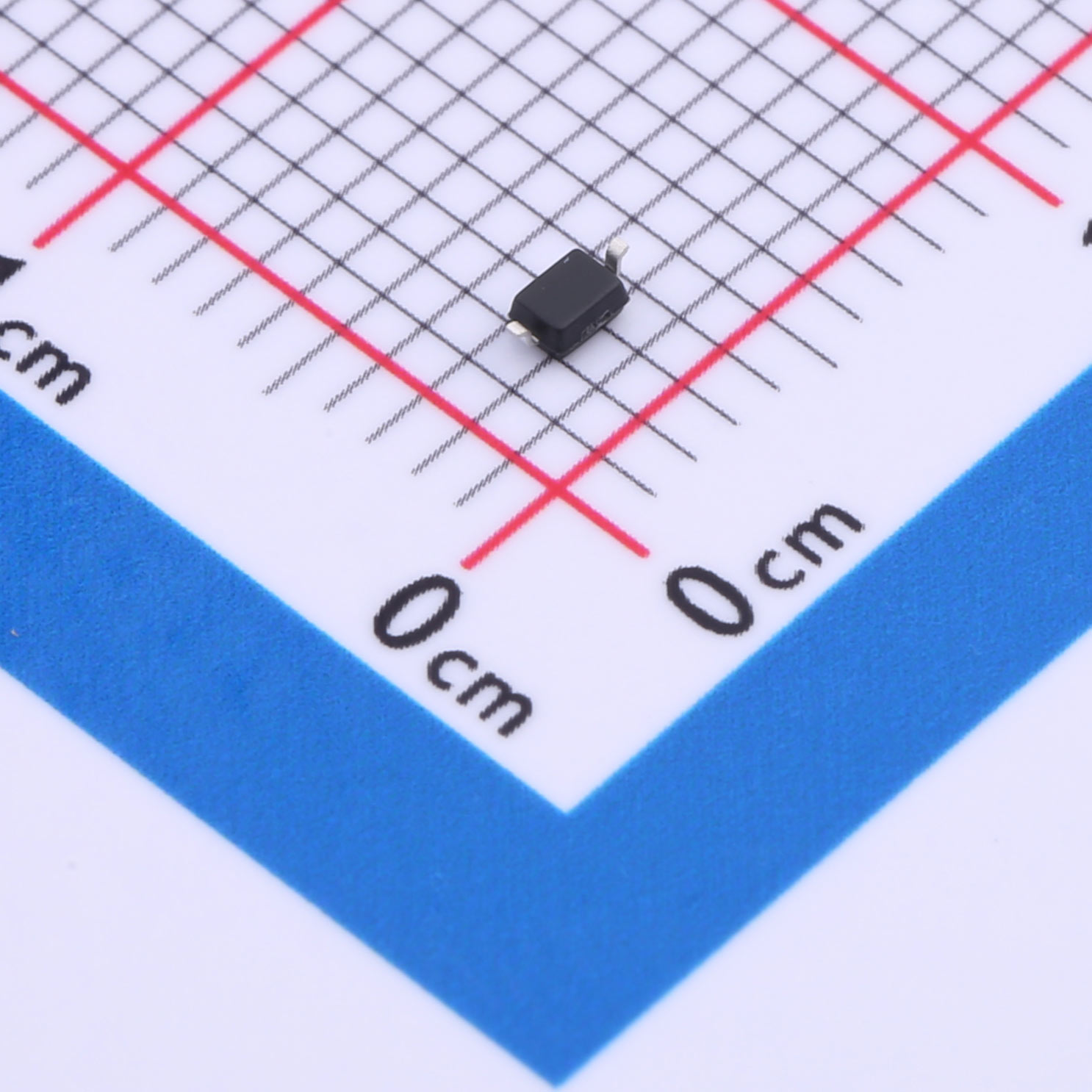

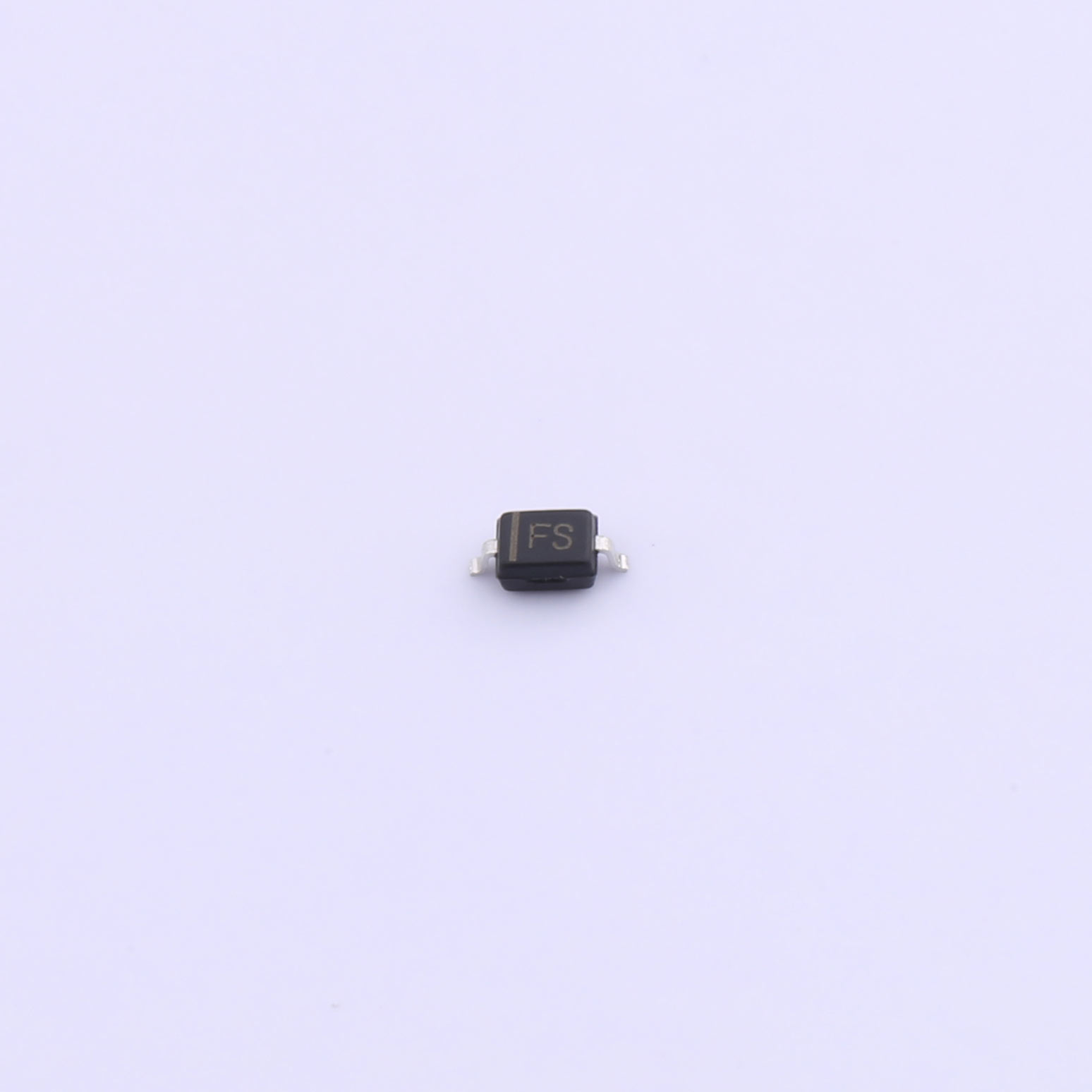

The SLESD4V5S TVS diode is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebooks, and PDA's. It offers superior electrical characteristics such as low clamping voltage, low leakage current and high surge capability. It is designed to protect sensitive electronic components which are connected to power lines, from over-stress caused by ESD (Electrostatic Discharge), EFT (Electrical Fast Transients) and Lighting. The SLESD4V5S is in a SOD-323 package and will protect one unidirectional line. It may be used to provide ESD protection up to ±30kV (Contact and air discharge) according to IEC61000-4-2 , and used to protect USB voltage bus pin (8/20 us) according to IEC61000-4-5.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLESD4V5S TVS diode is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebooks, and PDA's. It offers superior electrical characteristics such as low clamping voltage, low leakage current and high surge capability. It is designed to protect sensitive electronic components which are connected to power lines, from over-stress caused by ESD (Electrostatic Discharge), EFT (Electrical Fast Transients) and Lighting. The SLESD4V5S is in a SOD-323 package and will protect one unidirectional line. It may be used to provide ESD protection up to ±30kV (Contact and air discharge) according to IEC61000-4-2 , and used to protect USB voltage bus pin (8/20 us) according to IEC61000-4-5.
Features
● Transient protection for high-speed data lines
IEC 61000-4-2 (ESD) ±30kV (Contact)
±30kV (Air)
● Peak power dissipation: 1260W (8/20μs)
● Working voltages : 4.5V
● Low leakage current
● Low clamping voltage
● Solid-state silicon-avalanche technology
Applications
● Power lines
● Personal digital assistants (PDA's)
● Microprocessors based equipment
● Notebooks, Desktops, and Servers
● Cell phone Handsets and Accessories
● Portable Electronics
● Peripherals
| File Name | Title | Description |
|---|---|---|

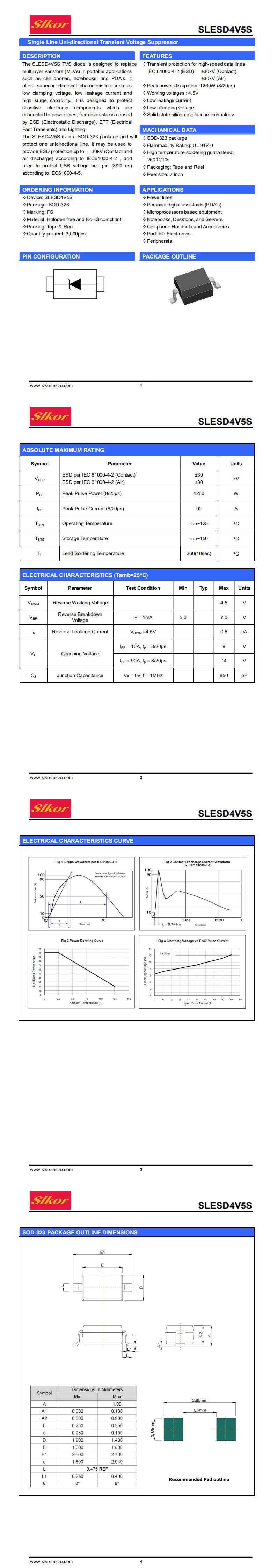

| SLESD4V5S SOD-323.pdf | SLESD4V5S SOD-323 | - |
