SLESD0524P is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to protection for high-speed data interfaces. With typical capacitance of 0.2pF (I/O to I/O) only, SLESD0524P is designed to protect parasiticsensitive systems against over-voltage and overcurrent transient events. It complies with IEC 61000-4-2 (ESD), Level 4(±8KV contact, ±15KV air discharge), IEC61000-4-4 (electrical fast transient-EFT) (40A, 5/50ns), very fast charged device model (CDM) ESD and cable discharge event (CDE) etc. SLESD0524P uses ultra-small DFN2510 package. Each SLESD0524P device can protect four highspeed data lines. The combined features of ultralow capacitance, ultra-small size and high ESD robustness make SLESD0524P ideal for highspeed data ports and high-frequency lines (e.g., HDMI &DVI) applications. The low clamping voltage of the SLESD0524P guarantees a minimum stress on the protected IC.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description

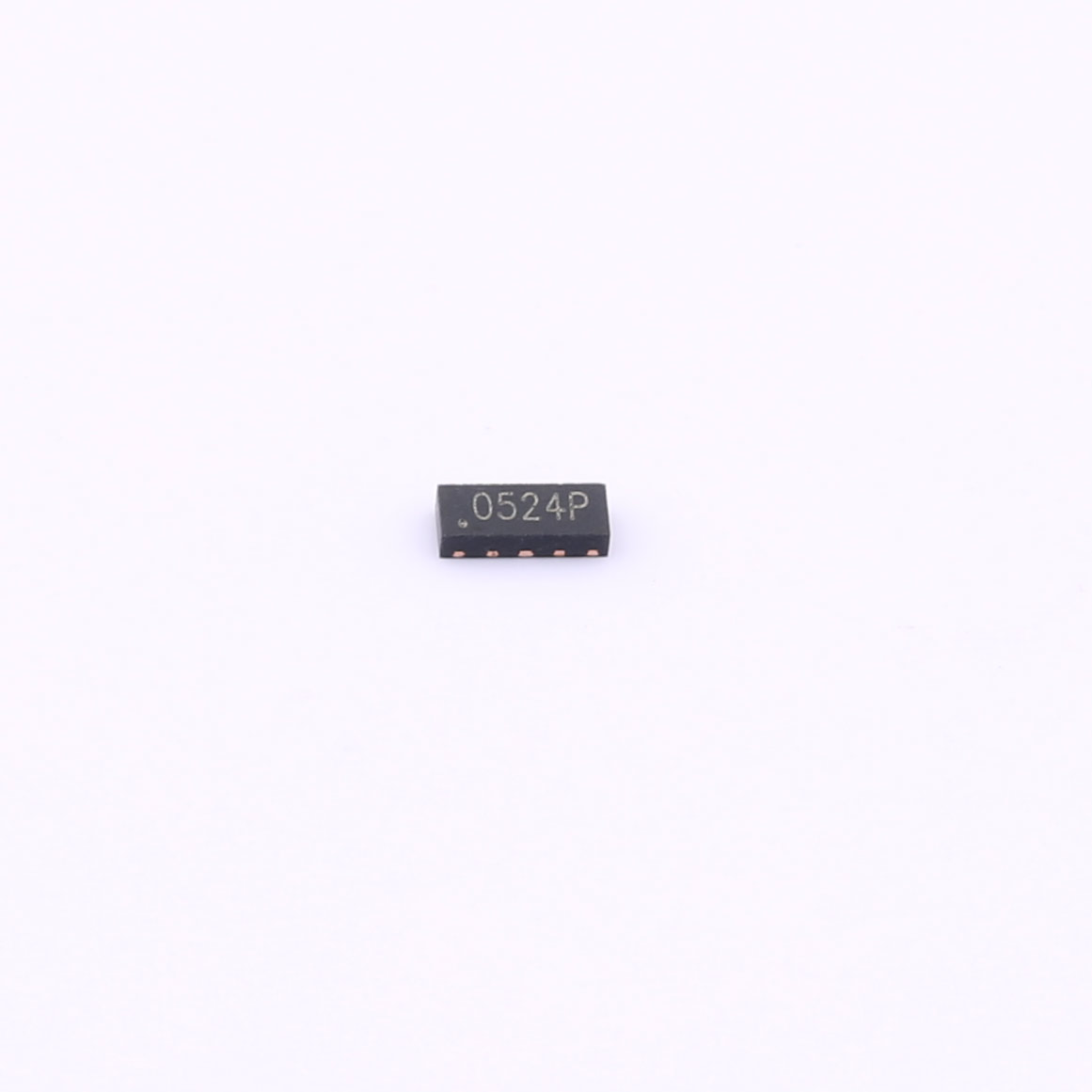

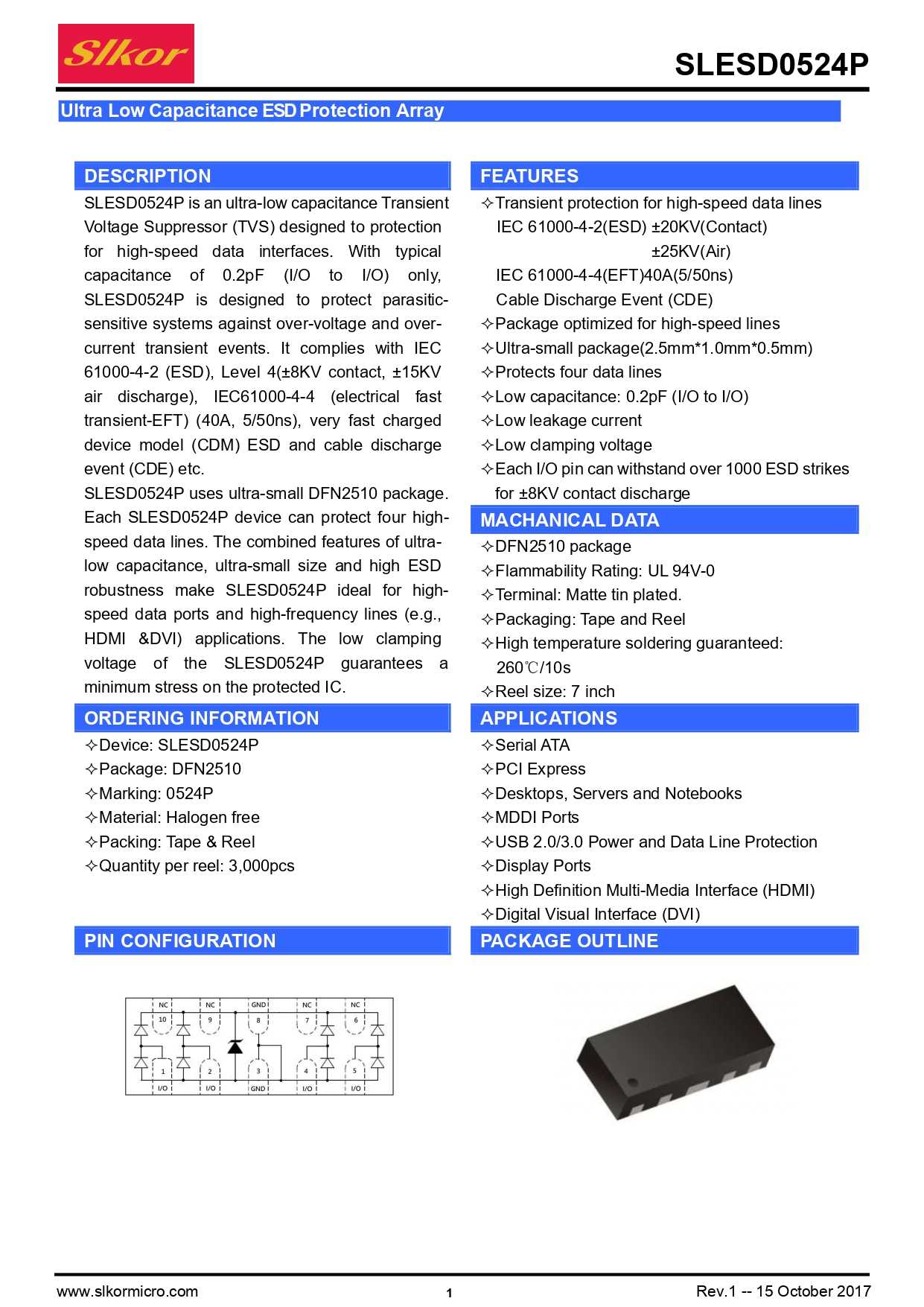

SLESD0524P is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to protection for high-speed data interfaces. With typical capacitance of 0.2pF (I/O to I/O) only, SLESD0524P is designed to protect parasiticsensitive systems against over-voltage and overcurrent transient events. It complies with IEC 61000-4-2 (ESD), Level 4(±8KV contact, ±15KV air discharge), IEC61000-4-4 (electrical fast transient-EFT) (40A, 5/50ns), very fast charged device model (CDM) ESD and cable discharge event (CDE) etc. SLESD0524P uses ultra-small DFN2510 package. Each SLESD0524P device can protect four highspeed data lines. The combined features of ultralow capacitance, ultra-small size and high ESD robustness make SLESD0524P ideal for highspeed data ports and high-frequency lines (e.g., HDMI &DVI) applications. The low clamping voltage of the SLESD0524P guarantees a minimum stress on the protected IC.
Features
●Transient protection for high-speed data lines
●IEC 61000-4-2(ESD) ±20KV(Contact) ±25KV(Air)
●IEC 61000-4-4(EFT)40A(5/50ns)
●Cable Discharge Event (CDE)
●Package optimized for high-speed lines

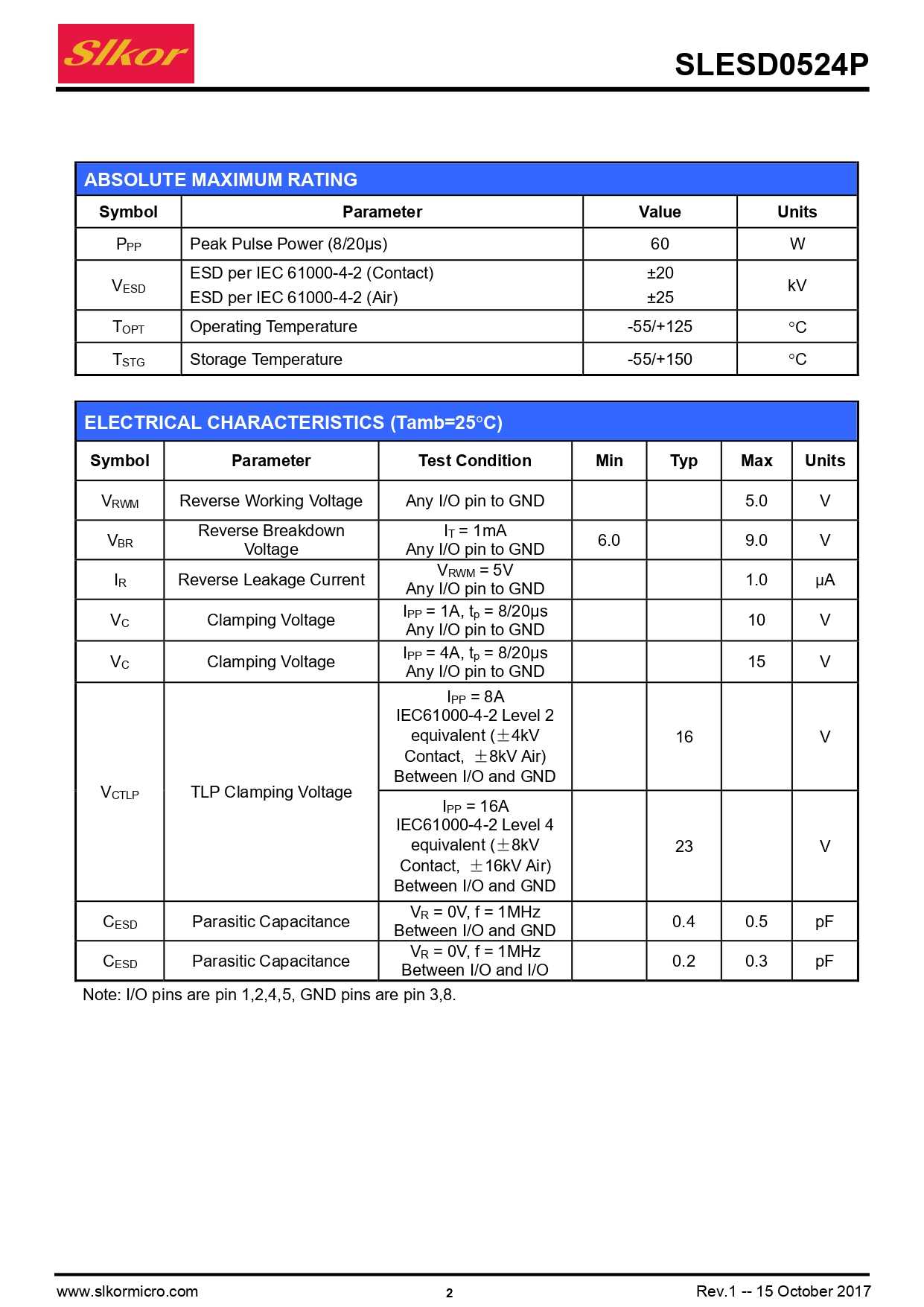

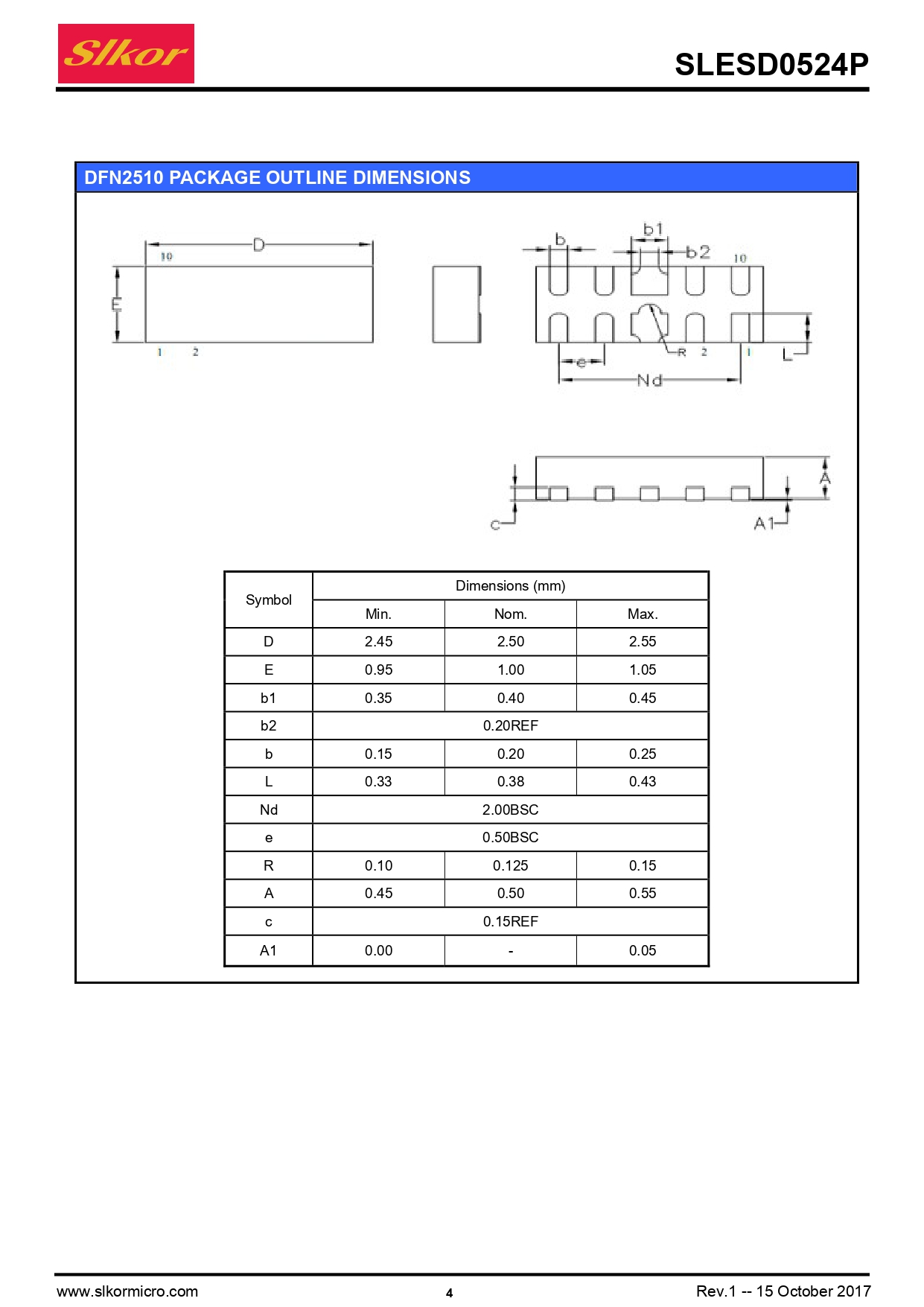

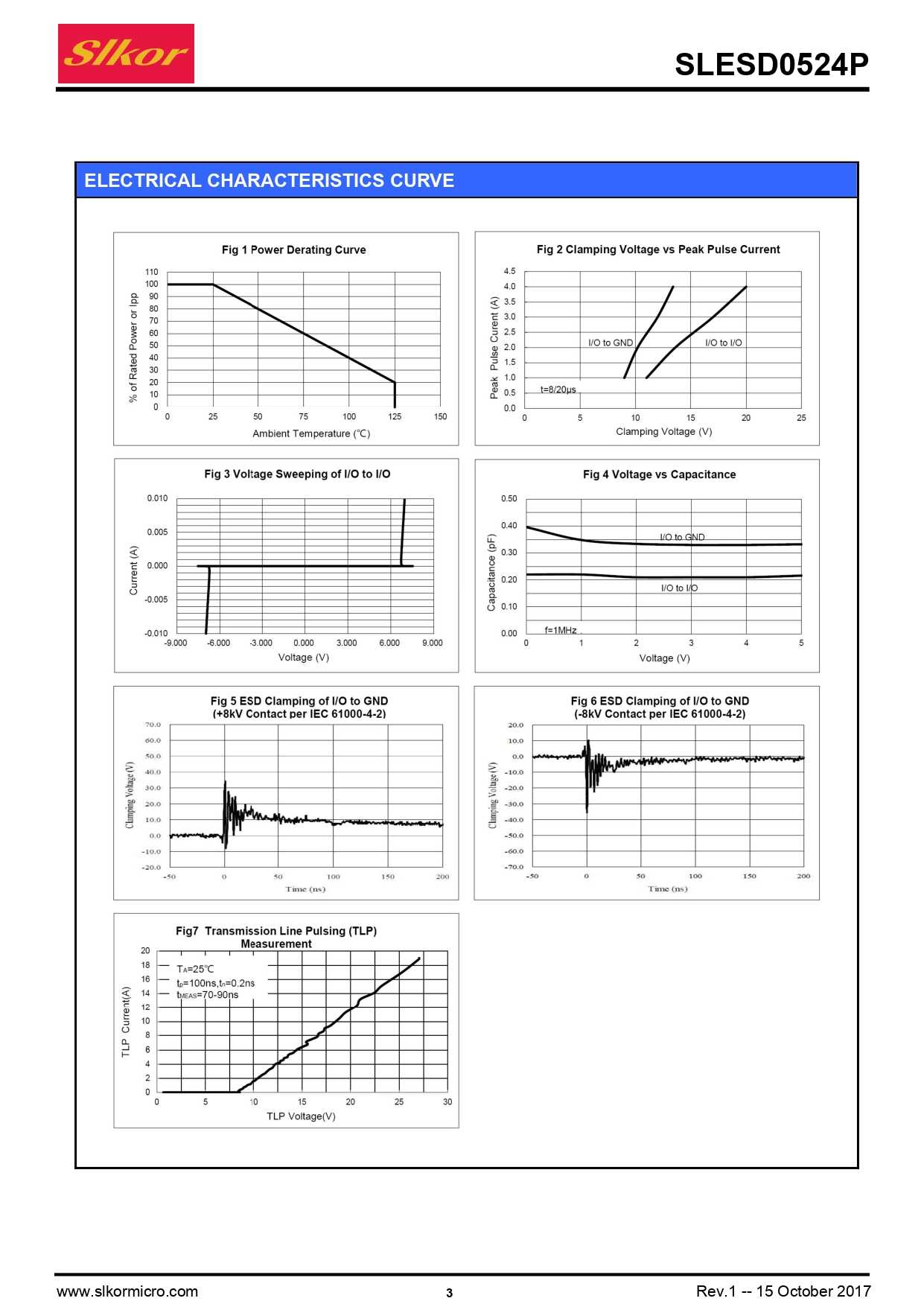

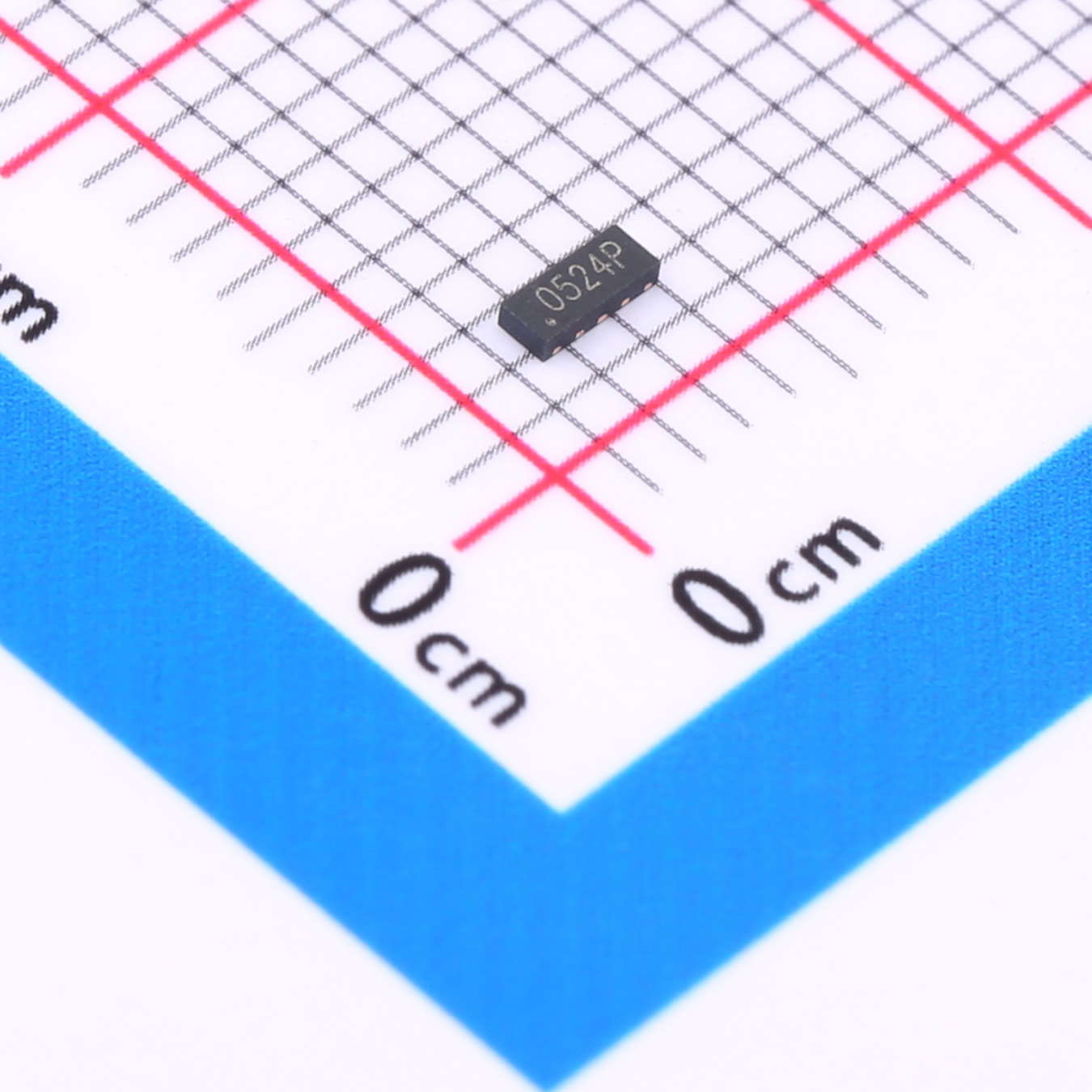

●Ultra-small package(2.5mm*1.0mm*0.5mm)
●Protects four data lines
●Low capacitance: 0.2pF (I/O to I/O)
●Low leakage current
●Low clamping voltage
●Each I/O pin can withstand over 1000 ESD strikes for ±8KV contact discharge
Applications
●Serial ATA
●PCI Express
●Desktops, Servers and Notebooks
●MDDI Ports
●USB 2.0/3.0 Power and Data Line Protection
●Display Ports
●High Definition Multi-Media Interface (HDMI)
●Digital Visual Interface (DVI)
| File Name | Title | Description |
|---|---|---|
| SLESD0524P.pdf | SLESD0524P | - |
