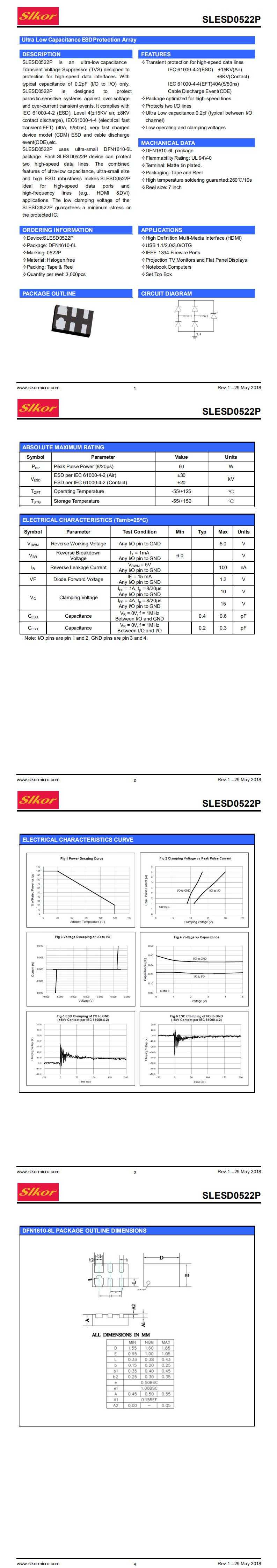

SLESD0522P is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to protection for high-speed data interfaces. With typical capacitance of 0.2pF (I/O to I/O) only, SLESD0522P is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4(±15KV air, ±8KV contact discharge), IEC61000-4-4 (electrical fast transient-EFT) (40A, 5/50ns), very fast charged device model (CDM) ESD and cable discharge event(CDE),etc. SLESD0522P uses ultra-small DFN1610-6L package. Each SLESD0522P device can protect two high-speed data lines. The combined features of ultra-low capacitance, ultra-small size and high ESD robustness makes SLESD0522P ideal for high-speed data ports and high-frequency lines (e.g., HDMI &DVI) applications. The low clamping voltage of the SLESD0522P guarantees a minimum stress on the protected IC.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
SLESD0522P is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to protection for high-speed data interfaces. With typical capacitance of 0.2pF (I/O to I/O) only, SLESD0522P is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4(±15KV air, ±8KV contact discharge), IEC61000-4-4 (electrical fast transient-EFT) (40A, 5/50ns), very fast charged device model (CDM) ESD and cable discharge event(CDE),etc. SLESD0522P uses ultra-small DFN1610-6L package. Each SLESD0522P device can protect two high-speed data lines. The combined features of ultra-low capacitance, ultra-small size and high ESD robustness makes SLESD0522P ideal for high-speed data ports and high-frequency lines (e.g., HDMI &DVI) applications. The low clamping voltage of the SLESD0522P guarantees a minimum stress on the protected IC.
Features
● Transient protection for high-speed data lines
IEC 61000-4-2(ESD) ±15KV(Air)
±8KV(Contact)
IEC 61000-4-4(EFT) 40A(5/50ns)
Cable Discharge Event (CDE)
● Package optimized for high-speed lines
● Protects two I/O lines
● Ultra Low capacitance:0.2pf (typical between I/O channel)
● Low operating and clamping voltages
Applications
● High Definition Multi-Media Interface (HDMI)
● USB 1.1/2.0/3.0/OTG
● IEEE 1394 Firewire Ports
● Projection TV Monitors and Flat Panel Displays
● Notebook Computers
● Set Top Box
