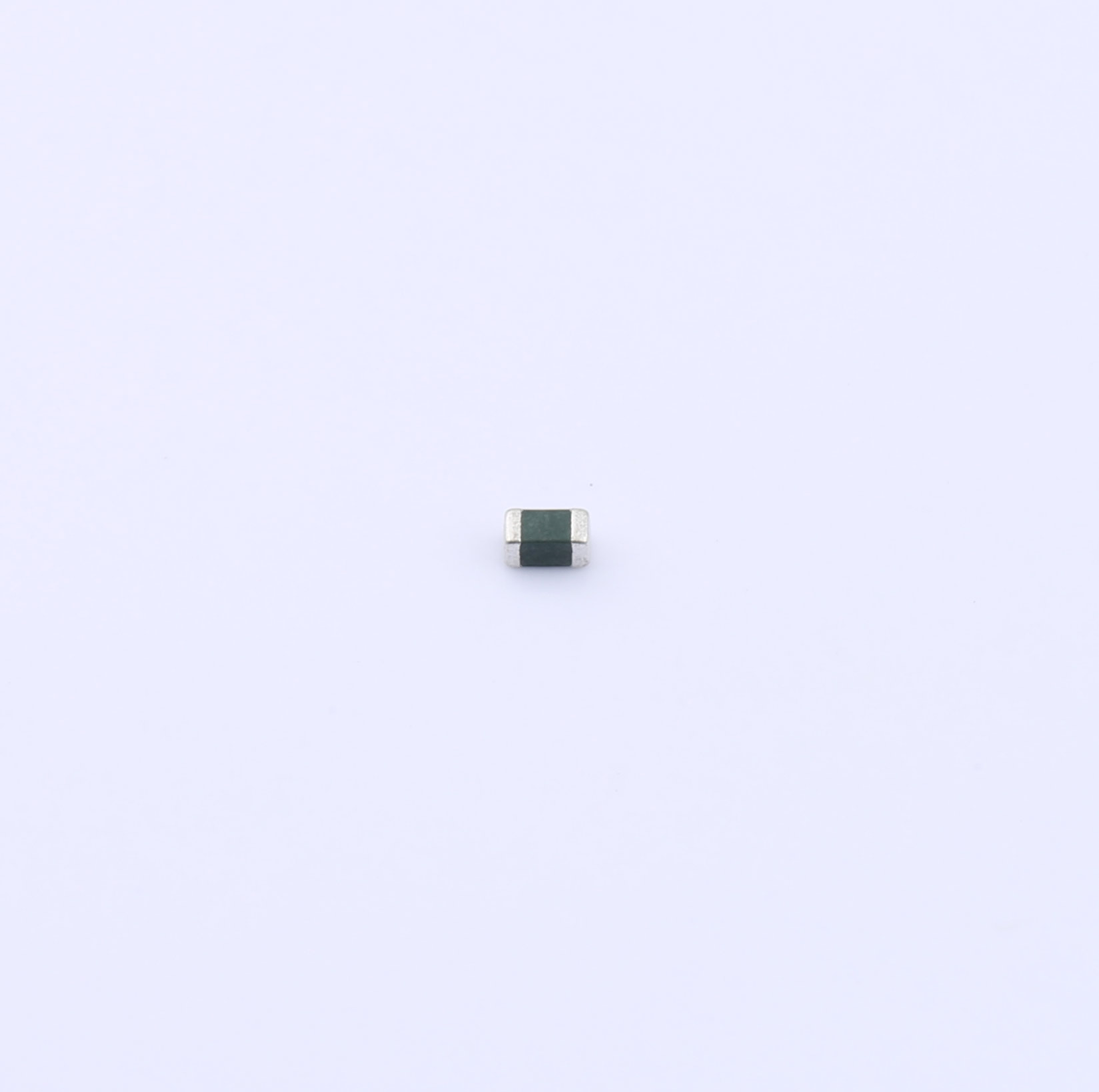

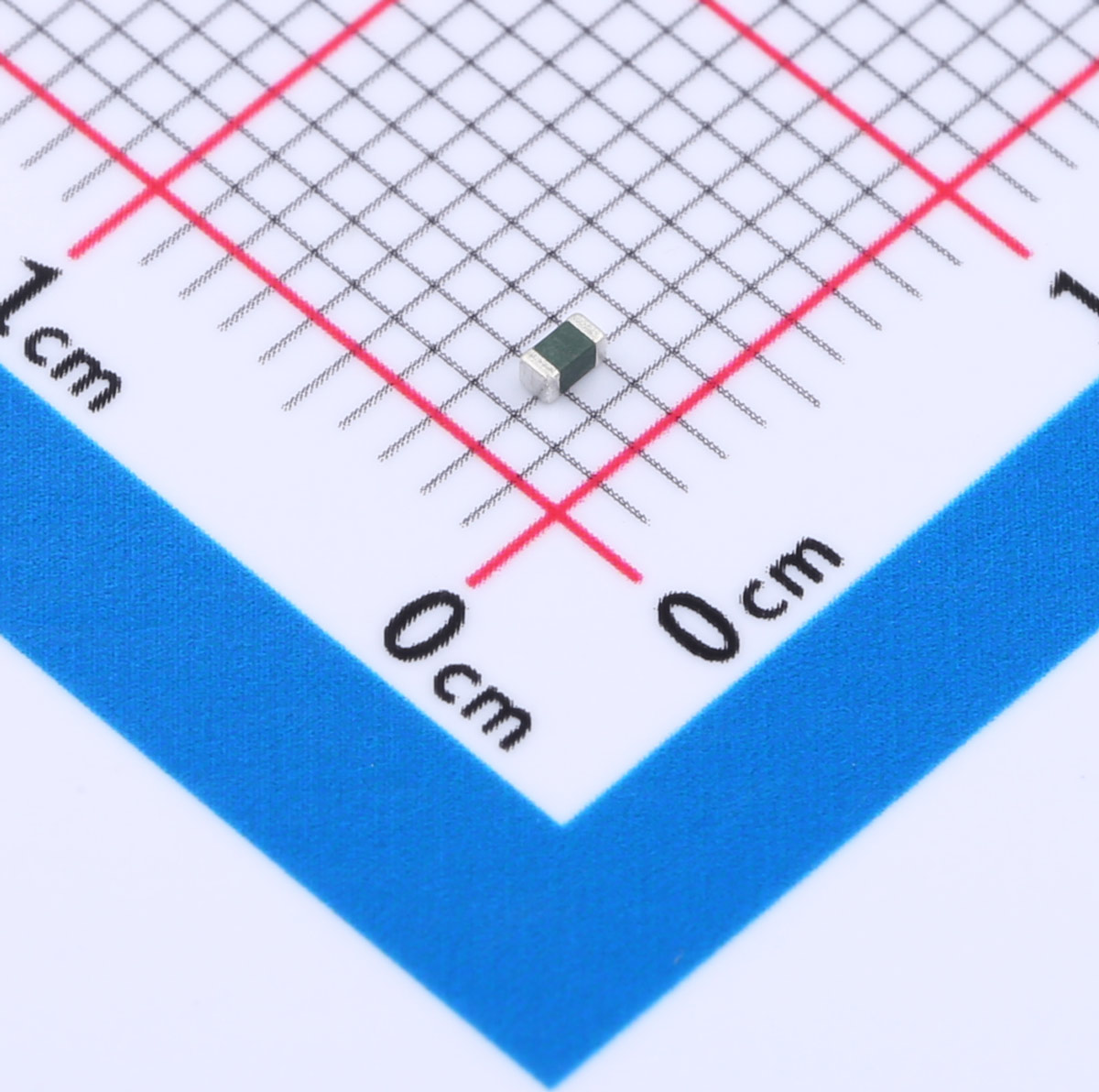

The SL0603ESDA-TR1 is a highly efficient Electrostatic Discharge (ESD) protection device designed in a compact 603 package. It serves to safeguard sensitive electronic components from damage caused by electrostatic discharge events. This device operates by quickly diverting electrostatic discharge currents away from critical circuitry, thereby preserving the integrity and reliability of electronic systems.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description

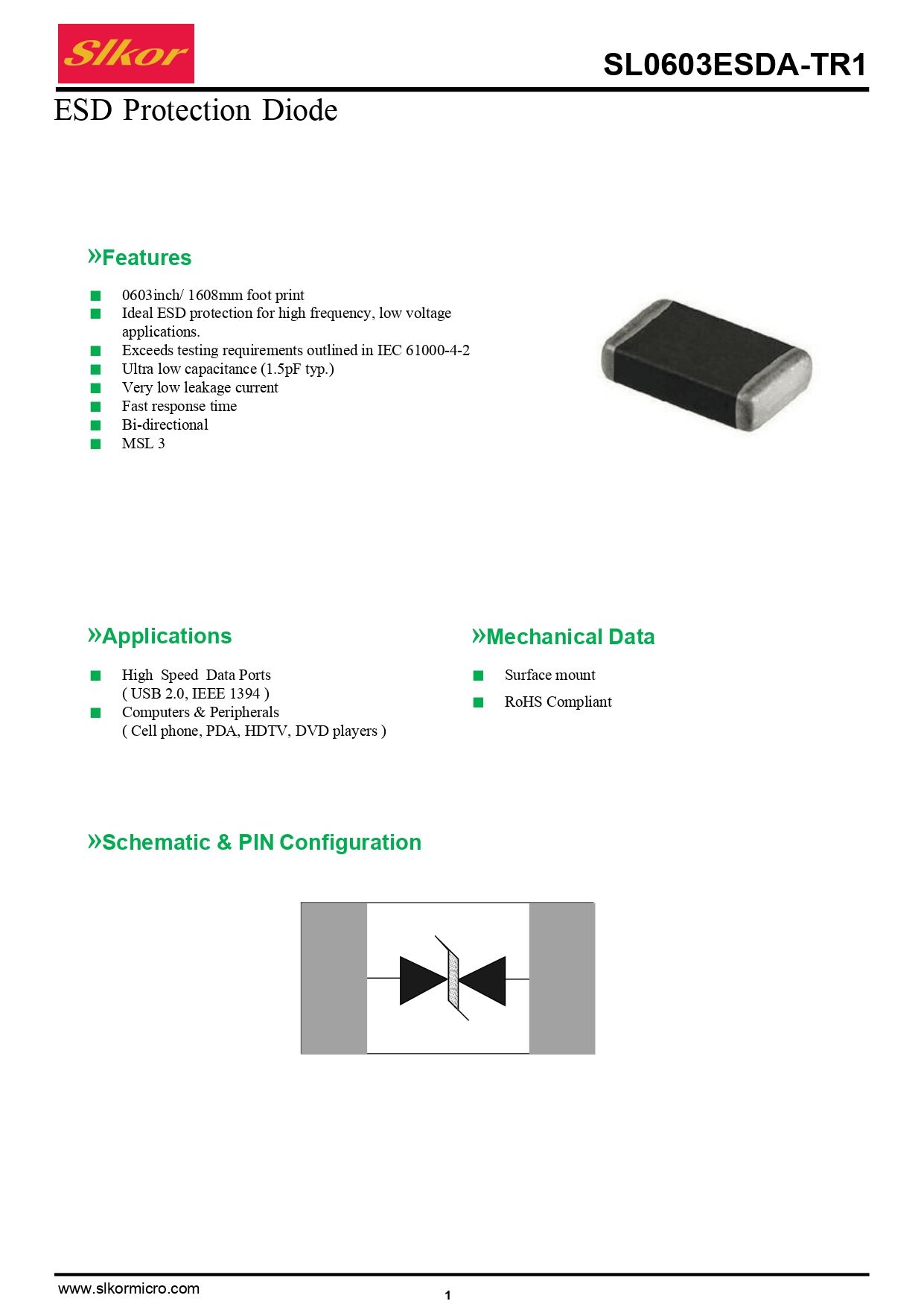

Features
●0603inch/ 1608mm foot print
●Ideal ESD protection for high frequency, low voltage applications.
●Exceeds testing requirements outlined in IEC 61000-4-2
●Ultra low capacitance (1.5pF typ.)
●Very low leakage current
●Fast response time
●Bi-directional
●MSL 3
Applications
●High Speed Data Ports ( USB 2.0, IEEE 1394 )
●Computers & Peripherals ( Cell phone, PDA, HDTV, DVD players )
| File Name | Title | Description |
|---|---|---|
| 6383885678145004771262763.PDF | 6383885678145004771262763 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Introducing the SLPESD0603M05, an ultra-compact ESD protection diode engineered to safeguard sensitive electronic circuits from electrostatic discharge (ESD) and transient voltage spikes. With its diminutive 0603 package size, this diode offers robust protection while occupying minimal board space.
VRWM (max):5V VBR(min): 5.6V IR(max): 1μA VC(max): 9.5V Cj(max):15pF Package: DFN1006
VRWM (max):36V VBR(min): 40V IR(max): 1μA VC(max): 75V Cj(max):35pF Package: SOD-323
VRWM (max):24V VBR(min): 26.7V IR(max): 1μA VC(max): 52V Cj(max):50pF Package: SOD-323
VRWM (max):8V VBR(min): 8.5V IR(max): 1μA VC(max): 13.4V Cj(max):0.8pF Package: SOD-323
The SLPESD3V3L2BT Series is designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. These devices are ideal for situations where board space is at a premium.This series has been specifically designed to protect sensitive components which are connected to power、data and transmission lines from overvoltage caused by ESD(electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients).
The SLESDLC5V0K5 is a high-performance transient protection diode designed to safeguard sensitive electronic components from transient voltage spikes. Encased in the compact SOT-363 package, this diode is engineered to provide robust protection while ensuring minimal space consumption on your circuit board. It features a precise breakdown voltage range, making it ideal for applications requiring reliable over-voltage protection.
This high-power TVS (Transient Voltage Suppression) Diode is engineered to provide superior protection against voltage spikes and transients. It features a color-banded cathode for easy installation and ensures reliable performance in a range of electronic applications.
