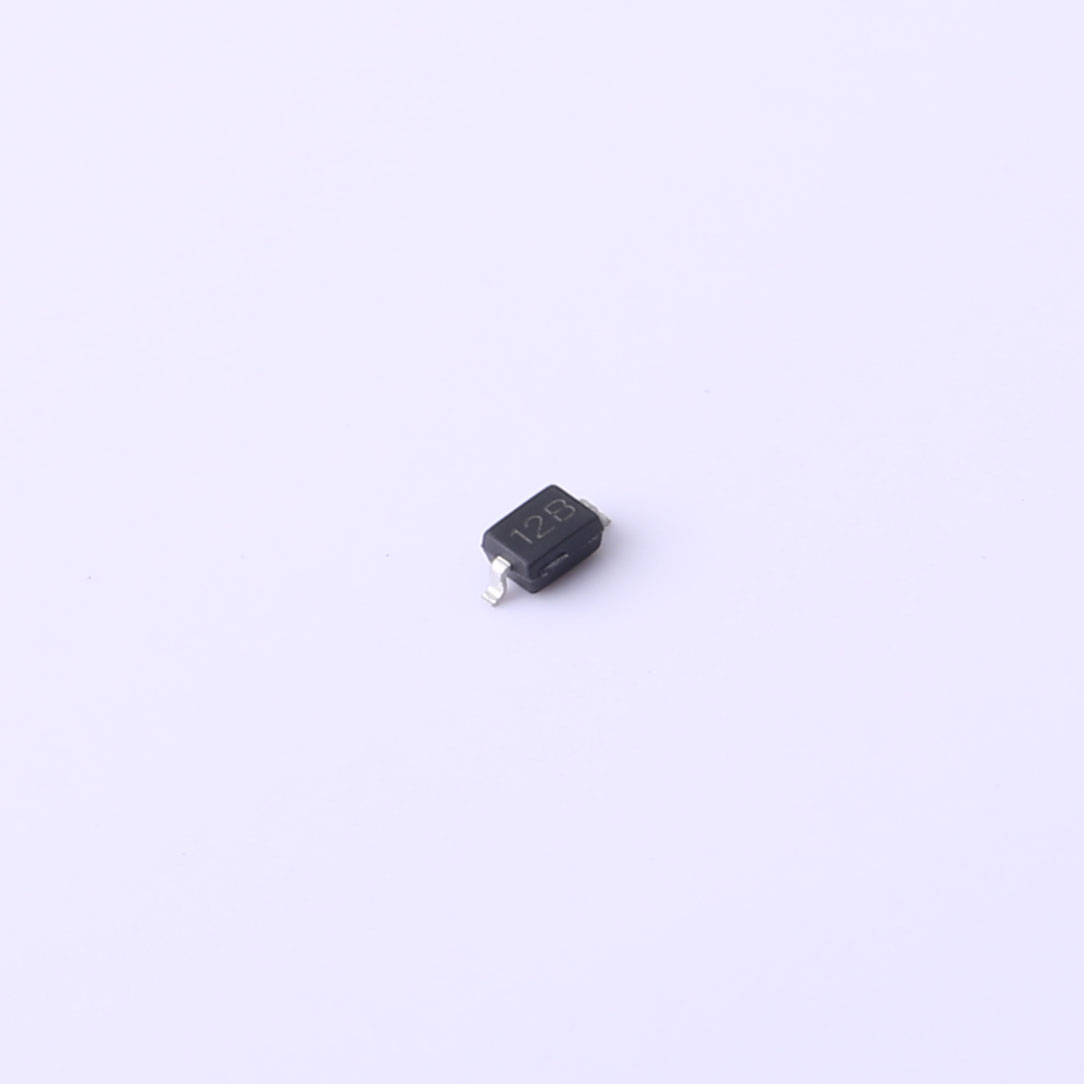

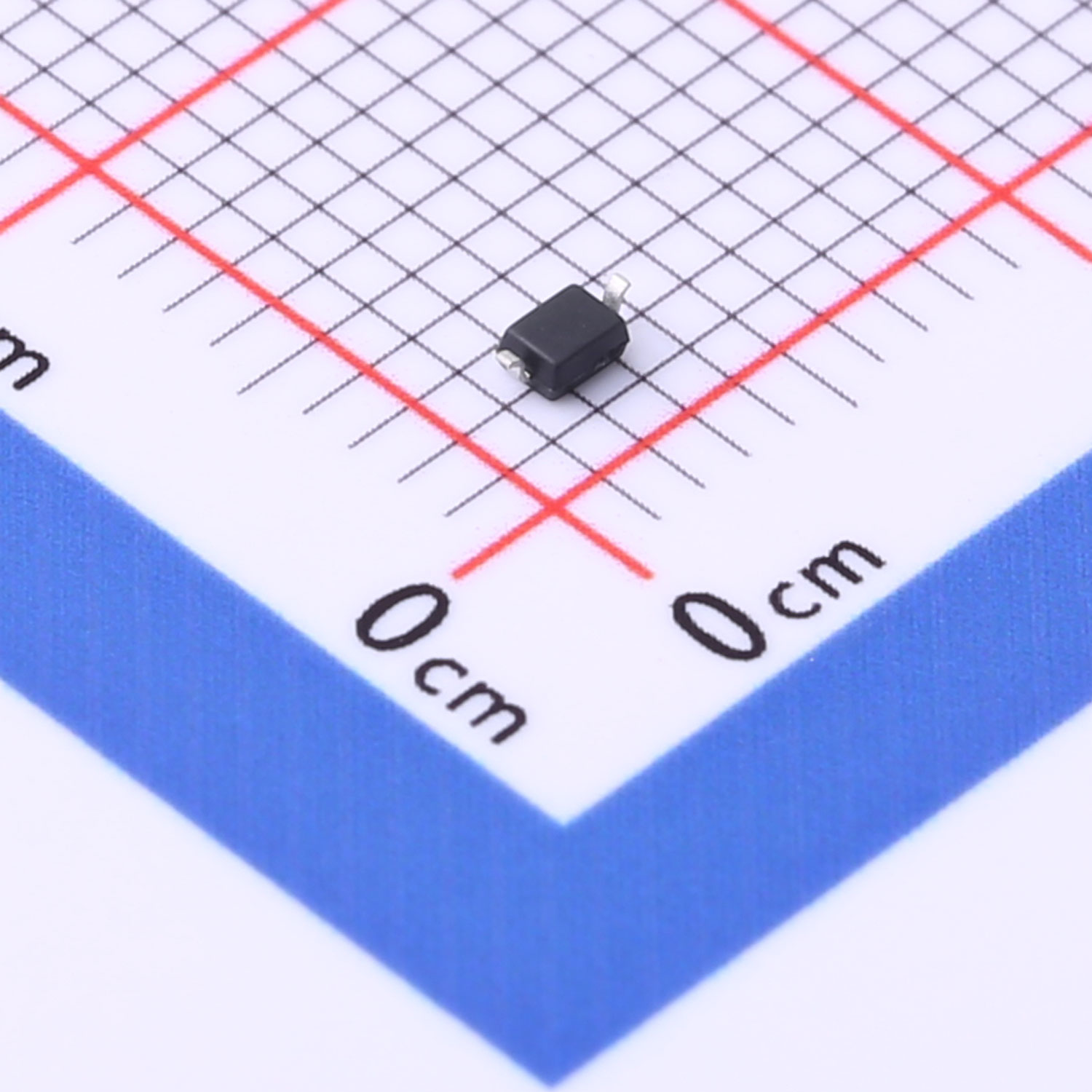

The SD12C is designed to protect voltage sensitive components from ESD and transient events. Excellent clamping capability, low leakage, and fast response time, make this part ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Slkor alternative equivalents to Brightking.
| Brightking | Slkor Replacements | ||
| Part Number | Part Number | Product Category | Package |
| SDD32C12L01 | SD12C | TVS | SOD-323 |
Description
The SD12C is designed to protect voltage sensitive components from ESD and transient events. Excellent clamping capability, low leakage, and fast response time, make this part ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications.
Features
● Peak Power ? 350 W (8 20 s)
● Low Leakage
● Low Clamping Voltage
● Small Package for use in Portable Electronics
● Meets IEC61000?4?2 Level 4
● Meets IEC6100?4?4 Level 4
● Meets 16 kV Human Body Model ESD Requirements
● These Devices are Pb?Free and are RoHS Compliant
● 350 Watts Peak Pulse Power per (tp=8/20us)
● Protects one l/O line (bidirectional)
● Working voltages 3V, 5, 8V, 12V, 15V, 18V, 24V, 36V
Applications
● Digital Cameras
● MP3 players
● Portable Devices
● Cell Phone Handsets and Accessones
● Microprocessor based equipment
● Personal Digital Assistants (PDA's)
● Notebooks, Desktops, and Servers
● Portable Instrumentation
● Networking and Telecom
● Serial and Parallel Ports.
● Peripher als
Mechanical Data
● SOD-323 package
● Flammability Rating: UL 94V-0
● Packaging: Tape and Reel
● High temperature soldering guaranted: 260 C/10s
● Reel size: 7inch
● Quantity per reel: 3,000pcs
| File Name | Title | Description |
|---|---|---|
| SD15C.PDF | SD15C | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
VRWM (max):5V VBR(min): 5.6V IR(max): 1μA VC(max): 9.5V Cj(max):15pF Package: DFN1006
VRWM (max):36V VBR(min): 40V IR(max): 1μA VC(max): 75V Cj(max):35pF Package: SOD-323
VRWM (max):24V VBR(min): 26.7V IR(max): 1μA VC(max): 52V Cj(max):50pF Package: SOD-323
VRWM (max):8V VBR(min): 8.5V IR(max): 1μA VC(max): 13.4V Cj(max):0.8pF Package: SOD-323
The TUSD03FBX Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20μs waveshape.The TUSD03FBX and Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern. This series offers a ultra low capacitance and low leakage current in a miniature SOD-323 package.
The SLESD3C031L Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20μs waveshape.The SLESD3C031L and Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern. This series offers a ultra low capacitance and low leakage current in a miniature SOD-323 package.
The SLPESD5V0S1BA is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications where board space comes at a premium. Also because of its low capacitance, it is suited for use in high frequency designs such as USB 2.0 high speed, VGA, DVI, SDI and other high speed line applications.This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD(electrostatic discharge), and EFT (electrical fast transients).
The SLESD05V32D-LC is designed to protect voltagesensitive components from ESD and transientvoltage events . Excellent clamping capability , lowleakage , and fast response time , make these partsideal for ESD protection on designs where board space isat a premium. This device has been specifically designed to protectsensitive components which are connected to data andtransmission lines from overvoltage caused by ESD(electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients).
