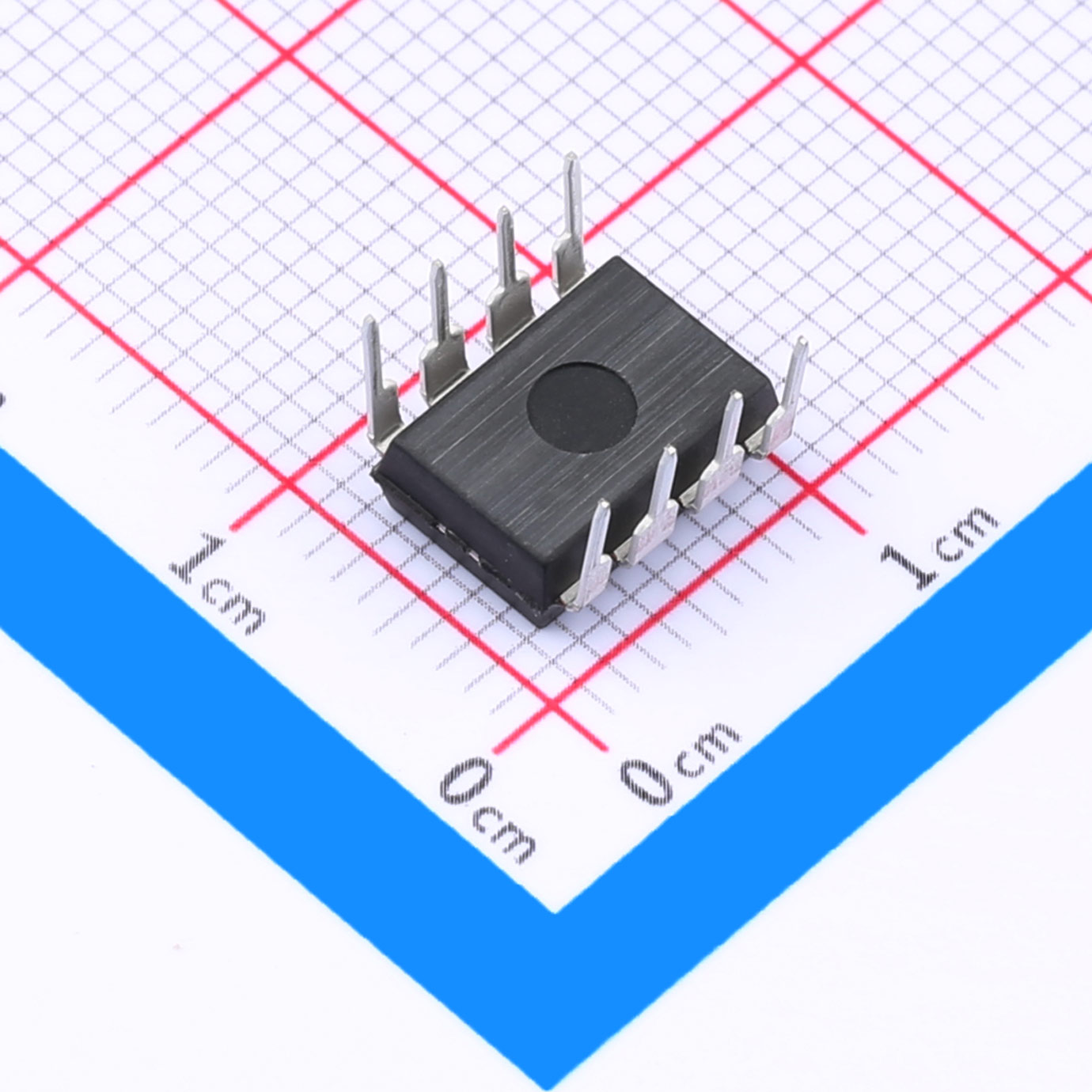

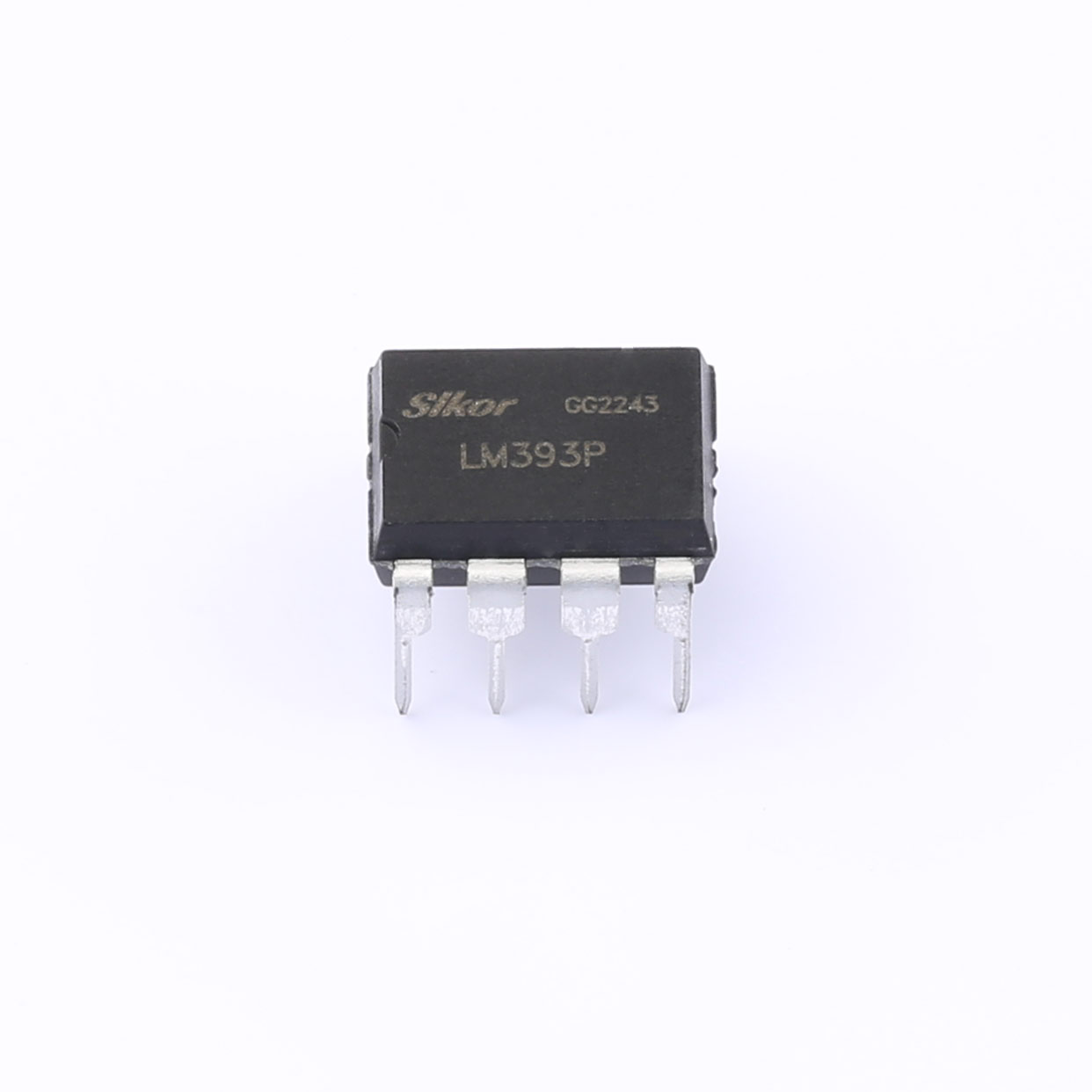

LM393 is an integrated circuit comprising two independent, high-precision voltage comparators, characterized by low offset voltage, with a maximum of 2.0mV. It is designed to operate over a wide voltage range with single-supply voltage, though it can also function with dual-supply voltage configurations. Moreover, it maintains low power consumption regardless of the supply voltage magnitude. One of its distinctive features is its ability to operate with a single-supply voltage, with the common-mode input voltage range of the comparators approaching ground level.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
LM393 is an integrated circuit comprising two independent, high-precision voltage comparators, characterized by low offset voltage, with a maximum of 2.0mV. It is designed to operate over a wide voltage range with single-supply voltage, though it can also function with dual-supply voltage configurations. Moreover, it maintains low power consumption regardless of the supply voltage magnitude. One of its distinctive features is its ability to operate with a single-supply voltage, with the common-mode input voltage range of the comparators approaching ground level.
The main applications of the LM393 include limiters, simple analog-to-digital converters, pulse generators, square wave generators, delay generators, wideband voltage-controlled oscillators, MOS clock timers, multi-frequency oscillators, and high-level digital logic gate circuits. The LM393 is designed for direct connection to TTL and CMOS logic circuits. When powered by dual supplies, it is compatible with MOS logic circuits—highlighting a unique advantage of the low-power LM393 over standard comparators.
Features
● Wide single supply voltage range or dual supplies +2v to +36v or ±1v to ±18v
● Very low supply current (0.4ma) independent of supply voltage (1mw/comparator at +5v)
● Low input bias current: 25na typ
● Low input offset current: ±5na typ
● Input common-mode voltage range includes ground low output saturation voltage: 250mv typ. (io = 4ma) differential input voltage range equal to the supply voltage
Applications
● Zero-Crossing Detection
● Pulse Width Modulation (PWM)
● Overvoltage and Undervoltage Protection
● Analog-to-Digital Conversion (ADC)
● Window Comparators
● Oscillators
● Comparator-based Frequency Detectors
● Temperature Sensing
| File Name | Title | Description |
|---|---|---|

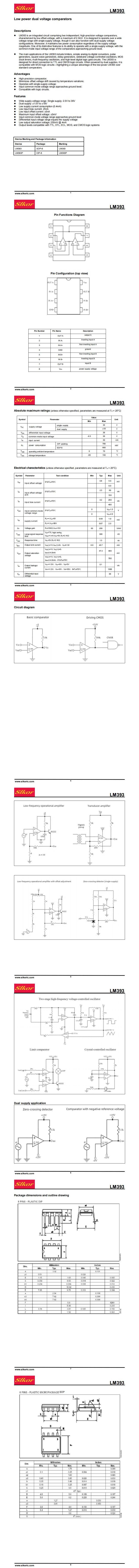

| LM393.pdf | LM393 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
LM393 is an integrated circuit comprising two independent, high-precision voltage comparators, characterized by low offset voltage, with a maximum of 2.0mV. It is designed to operate over a wide voltage range with single-supply voltage, though it can also function with dual-supply voltage configurations. Moreover, it maintains low power consumption regardless of the supply voltage magnitude. One of its distinctive features is its ability to operate with a single-supply voltage, with the common-mode input voltage range of the comparators approaching ground level.
This device consists of two independent low power voltage comparators designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible.

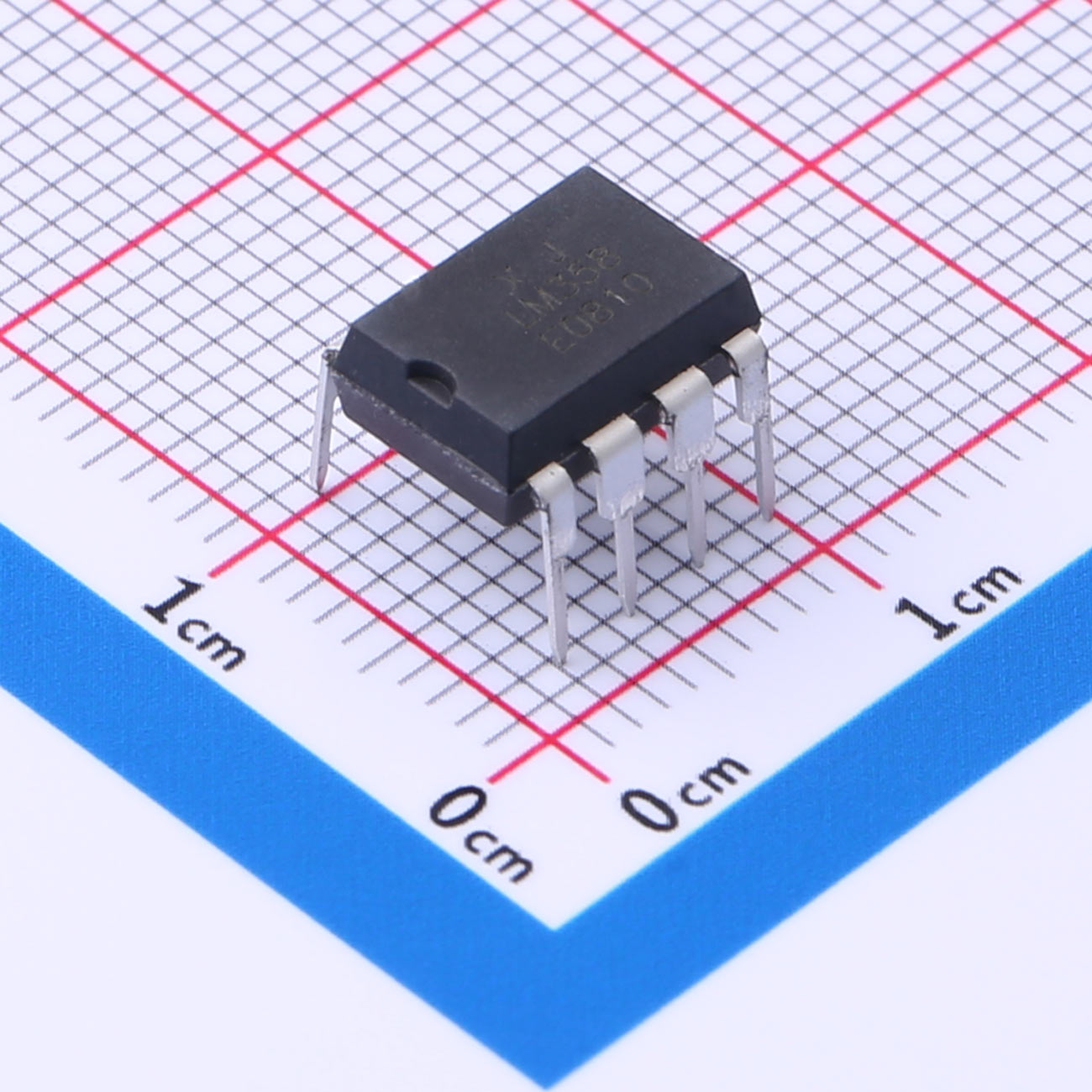

The LM358 consists of two independent, high-gain, internally frequency-compensated operational amplifiers. It is suitable for single-supply operation over a wide range of supply voltages and can also operate in dual-supply mode. Under recommended operating conditions, the supply current is independent of supply voltage. Its applications include sensor amplifiers, DC gain blocks, audio amplifiers, industrial control, DC gain stages, and any other application where operational amplifiers are used with single-supply power.
Alternative equivalent for Texas Instruments TLV9062 | Slkor SL9062D General Op-amp
Alternative equivalent for Texas Instruments TLV9062 | Slkor SL9062C General Op-amp

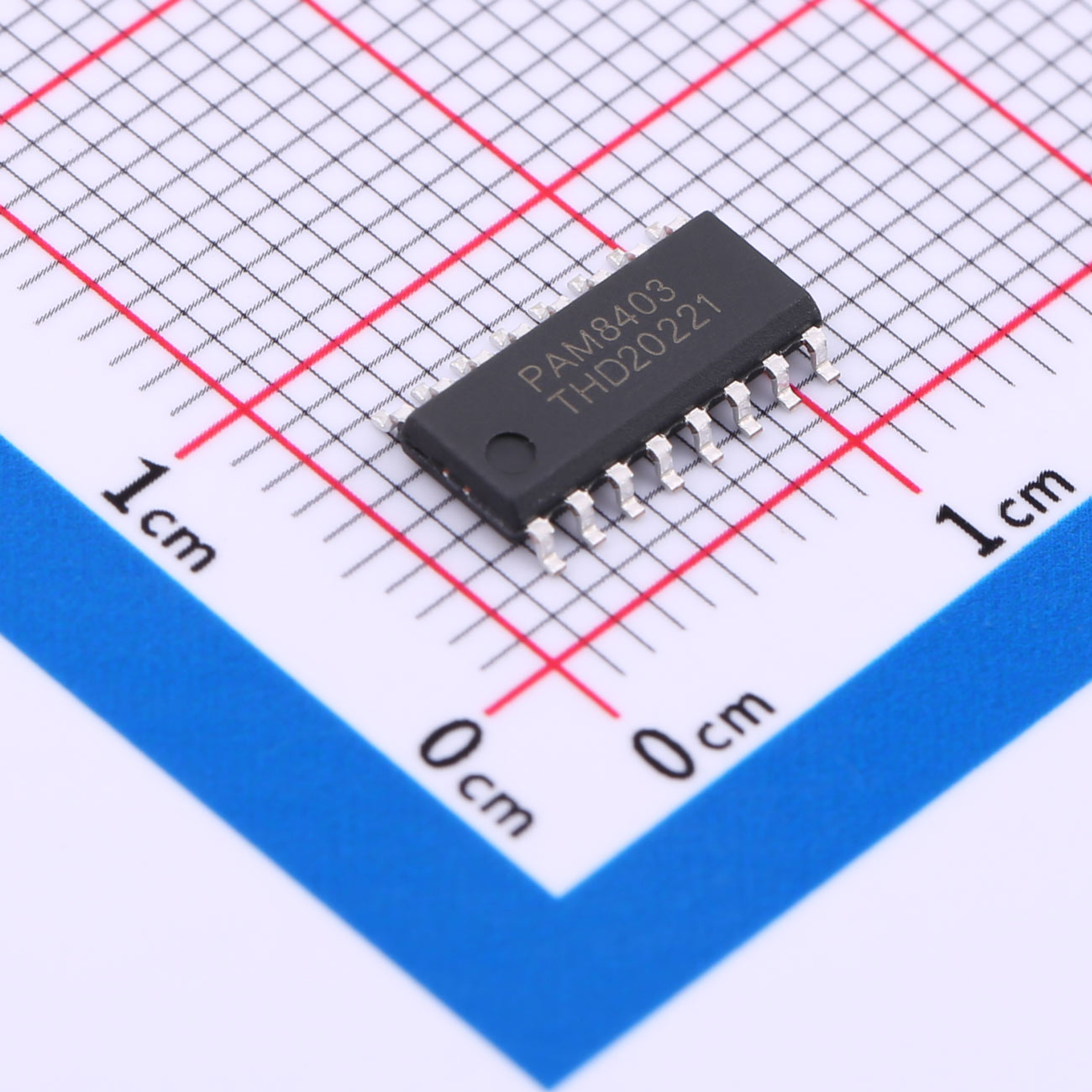

The PAM8403 stereo power amplifier provides Class D efficiency with AB amplifier performance. It features low noise and eliminates the need for traditional D-class amplifier output low-pass filters due to its filterless structure. Requiring minimal peripheral components, it saves PCB space and system costs, making it an ideal choice for portable applications. The PAM8403 achieves over 85% efficiency in delivering 3W of power, and includes system shutdown and mute control functions. Its unique circuit architecture enhances noise immunity and reduces RF interference.

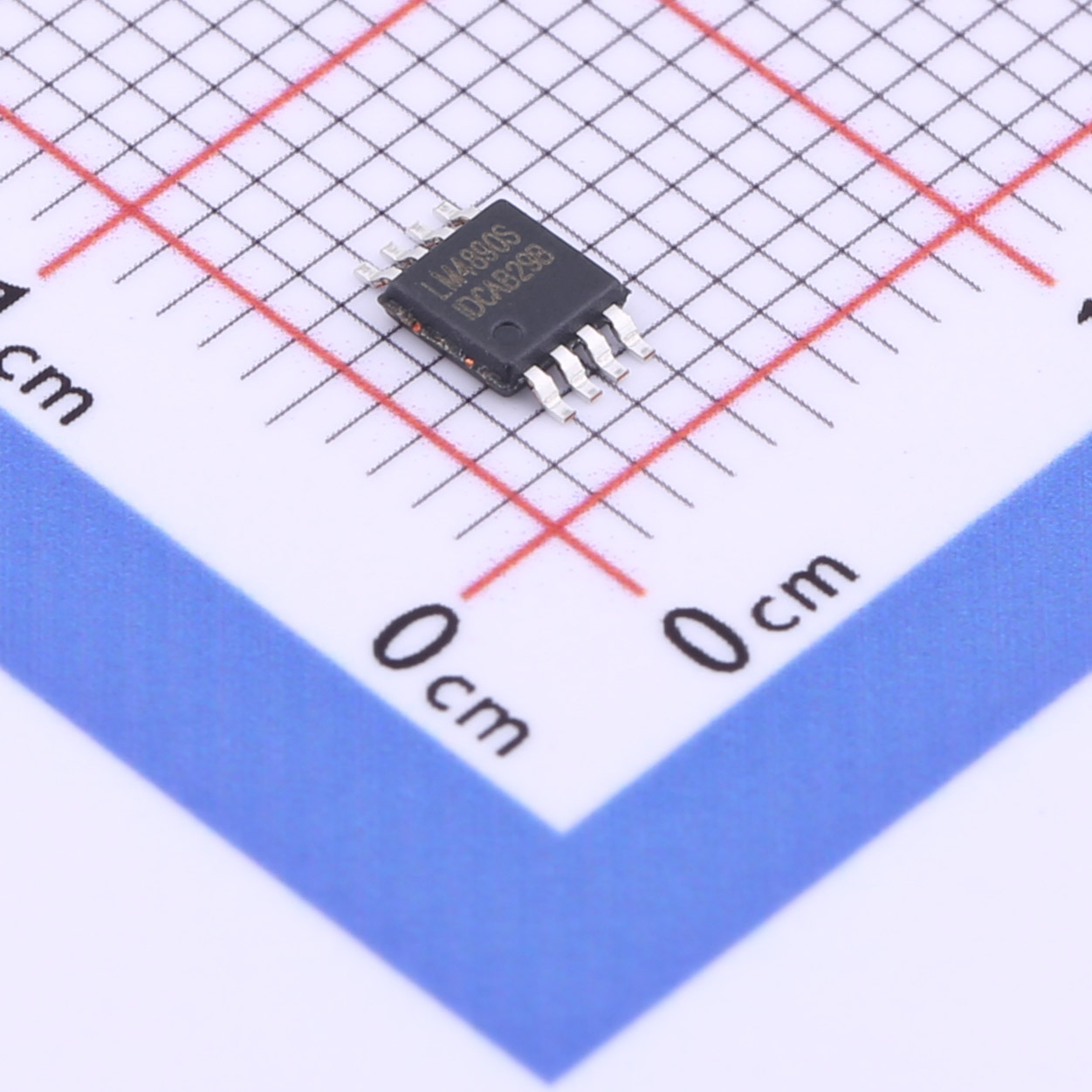

The LM4890S audio power amplifier is primarily designed for demanding applications in mobile phones and other portable communication devices. It is capable of delivering 0.5W of continuous average power into an 8Ω BTL load from a 5V DC power supply with less than 1% total harmonic distortion plus noise (THD+N).
The SL8002A is a Class AB, single-channel bridge audio power amplifier with shutdown mode. It provides a maximum driving power of 3W (4 ohm load, THD <10%) and 2W (4 ohm load, THD <1%) at 5V operating voltage with a 1kHz input signal. Total harmonic distortion and noise within the audio frequency range are less than 1% (20 Hz to 20 kHz). The SL8002A application circuit is simple, requiring only a minimal number of external components to deliver high-quality output power. The SL8002A output does not require external coupling capacitors, bootstrap capacitors, buffer networks, or feedback resistors.
