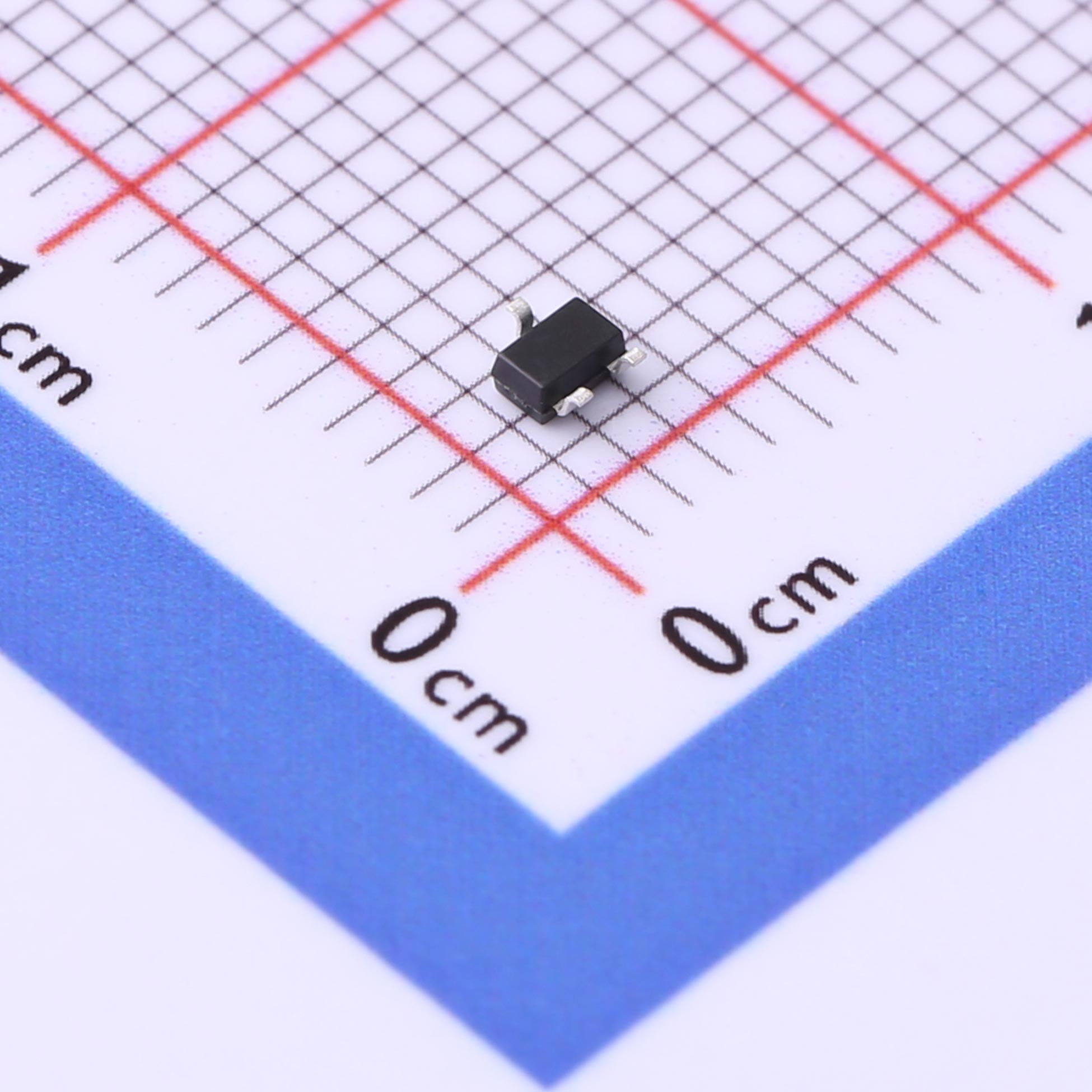

The Polar High-Speed NPN Transistor is engineered for high-frequency switching and amplification applications. With a collector-emitter voltage rating (Vceo) of 50V and a collector current rating (Ic) of 1A, this transistor is designed for reliable performance in demanding environments. Its low saturation voltage (VCE(sat) of 0.3V at 0.5mA) and high transition frequency (fT) of 250MHz ensure efficient operation in high-speed circuits. The device operates over a broad temperature range from -55℃ to +150℃, making it suitable for extreme conditions.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar High-Speed NPN Transistor is engineered for high-frequency switching and amplification applications. With a collector-emitter voltage rating (Vceo) of 50V and a collector current rating (Ic) of 1A, this transistor is designed for reliable performance in demanding environments. Its low saturation voltage (VCE(sat) of 0.3V at 0.5mA) and high transition frequency (fT) of 250MHz ensure efficient operation in high-speed circuits. The device operates over a broad temperature range from -55℃ to +150℃, making it suitable for extreme conditions.
FEATURES
● Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit)
● The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input.They also have the advantage of almost completely eliminating parasitic effects
● Only the on/off conditions need to be set for operation, making device design easy
Applications
● High-Speed Switching
● RF Amplifiers
● Communication Systems
● Automotive Electronics
● Consumer Electronics
| File Name | Title | Description |
|---|---|---|
| DTC113ZUA SOT-323.pdf | DTC113ZUA SOT-323 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
VCC(V)：50V IO(mA)：50mA VI(off)(V)：0.5V VI(on)(V)：3V fT(MHz)：250MHz Package：SOT-323
VCC(V)：50V IO(mA)：100mA VI(off)(V)：0.5V VI(on)(V)：3V fT(MHz)：250MHz Package：SOT-323
The DTC143EUA NPN Digital Transistor SOT-323 is designed for efficient, high-frequency performance in compact applications. This transistor operates with a maximum collector-emitter voltage (VCC) of 50V and a high current handling capability of up to 100mA. Featuring a low input voltage for turn-off (VI(off)) of 0.5V and a turn-on voltage (VI(on)) of 3V, it ensures reliable switching operations. With an impressive transition frequency (fT) of 250MHz, this component delivers superior speed and performance. The transistor comes in a space-saving SOT-323 package, ideal for modern electronic designs where size and efficiency are critical.
The UMC3N NPN+PNP Digital Transistor SOT-323 is a high-performance component designed to meet rigorous electronic needs. With a VCC of -50V and an IO rating of -50mA, this transistor provides robust performance for various circuits. The voltage thresholds are finely tuned with VI(off) at -0.5V and VI(on) at -3V, ensuring precise control over signal flow. With a high transition frequency of 250MHz, this transistor excels in high-speed applications. Packaged in the compact SOT-353, it is ideal for space-constrained environments.
This transistor is engineered to operate efficiently at high frequencies while maintaining a robust operating range. With a maximum collector-emitter voltage of -50V and a high transition frequency of 250MHz, it ensures reliable operation for demanding electronic circuits.
The MMST5551 NPN Digital Transistor engineered to deliver exceptional reliability and efficiency in demanding electronic applications. With a robust maximum collector-emitter voltage (Vceo) of 160V and a maximum collector current (Ic) of 600mA, this transistor is designed for use in high-voltage and high-current circuits. It excels in scenarios requiring high-frequency operation and has a wide operational temperature range, making it suitable for challenging environments.
DTA123JUA NPN Digital Transistor SOT-323
Vceo:6V Ic:80mA Pd:380mW VCE:- fT:11GHz Working temperature:150℃@(Tj)
