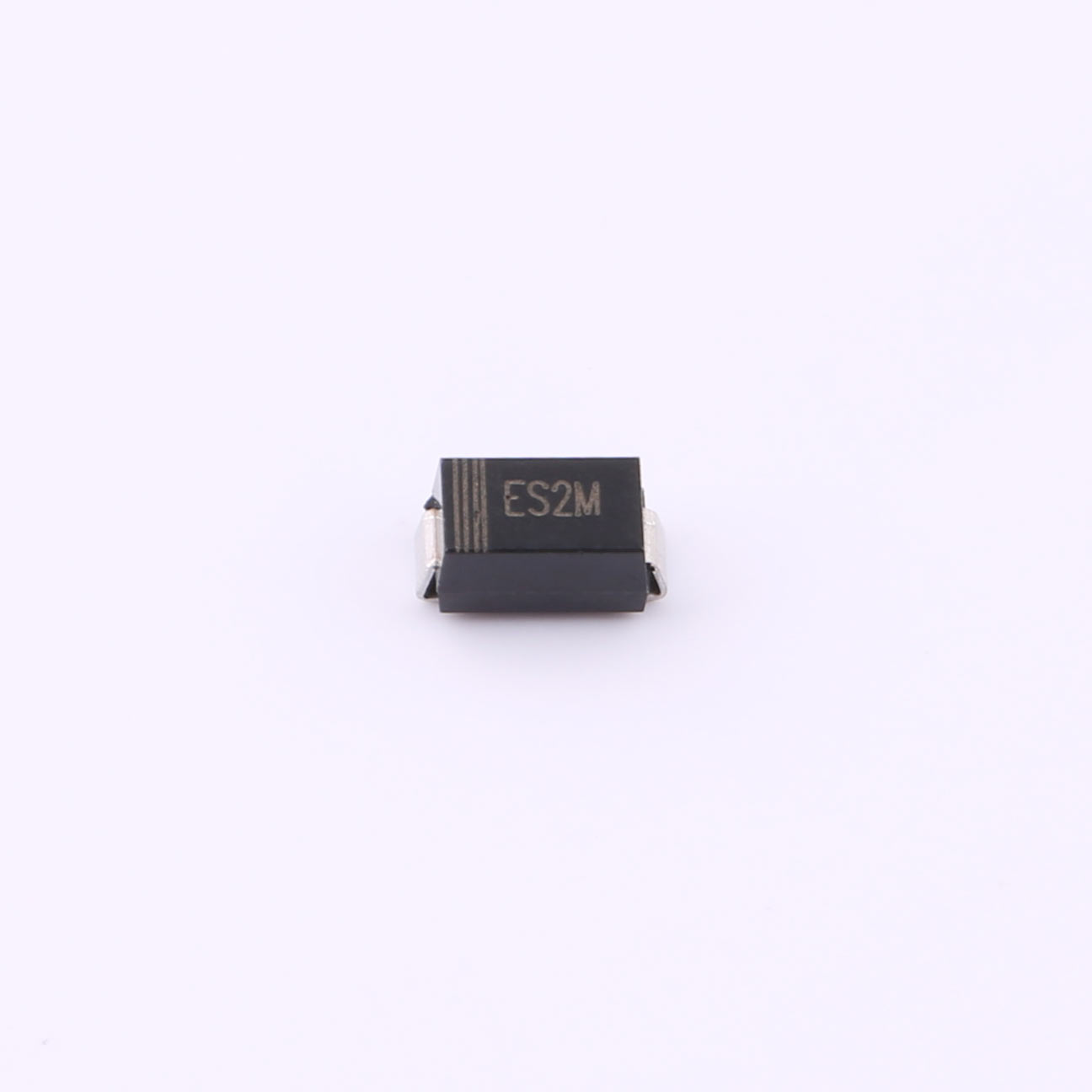

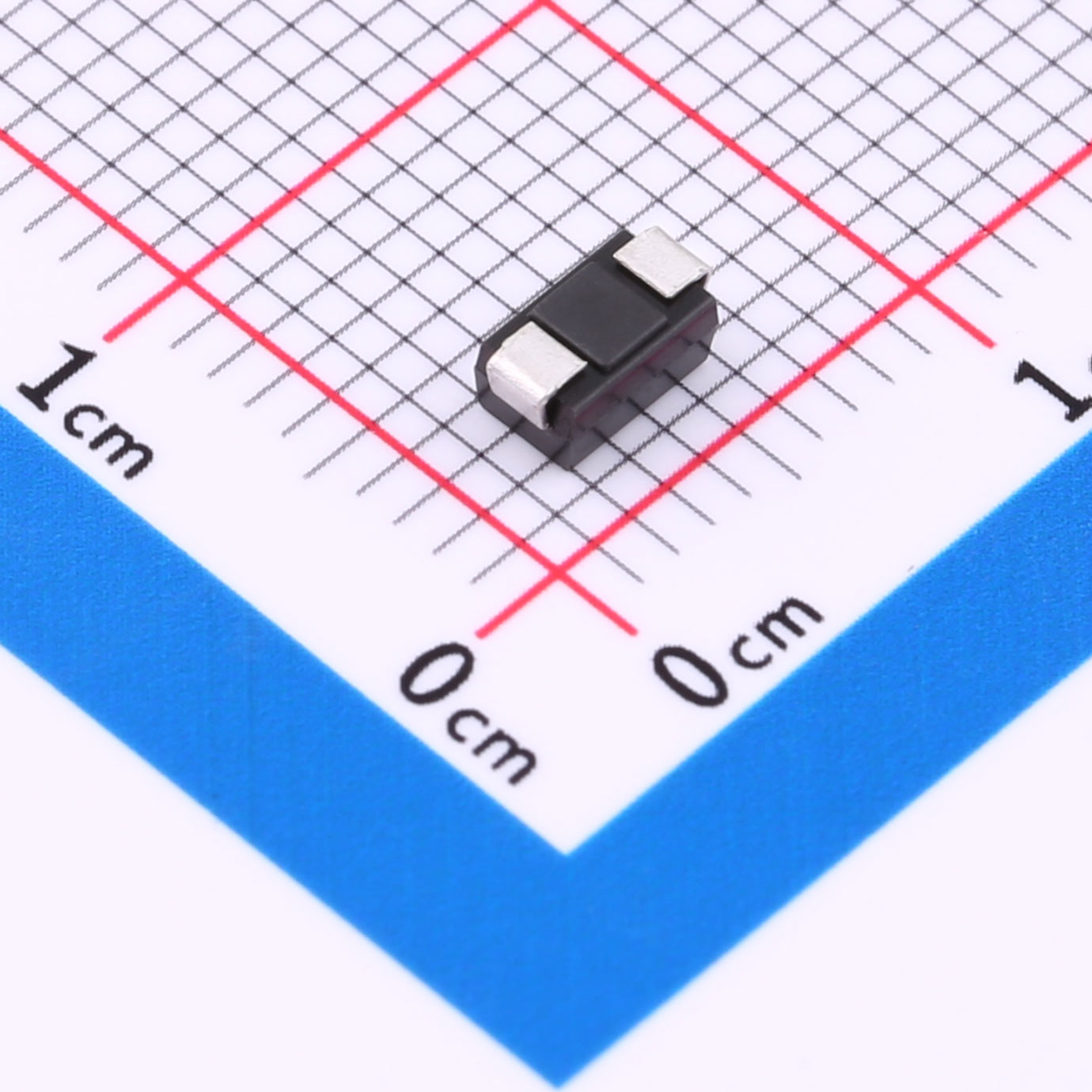

This diode features a robust VRRM of 1000V, ensuring it can handle high-voltage environments with ease. Designed with a low forward voltage drop of 1.7V and an ultra-low reverse leakage current of just 5μA, it provides exceptional performance while minimizing power loss and heat generation.
Download datasheet Inquiry
OUR ADVANTAGE
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
DESCRIPTION
This diode features a robust VRRM of 1000V, ensuring it can handle high-voltage environments with ease. Designed with a low forward voltage drop of 1.7V and an ultra-low reverse leakage current of just 5μA, it provides exceptional performance while minimizing power loss and heat generation.
FEATURES
● The plastic package carries Underwriters Laboratory
● Flammability Classification 94V-0
● For surface mounted applications
● Super fast switching for high efficiency
● Low reverse leakage
● Built-in strain relief,ideal for automated placement
● High forward surge current capability
● High temperature soldering guaranteed: 260C/10 seconds at terminals
APPLICATIONS
● Power Adapters and Chargers: Ensures reliable operation and efficiency in power conversion and regulation.
● High-Voltage Rectification: Handles high reverse voltages with minimal leakage for stable performance.
● Switching Power Supplies: Provides fast recovery and low forward voltage drop for improved efficiency in switching applications.
● Motor Drives: Enhances reliability and performance in circuits driving motors and other inductive loads.
| File Name | Title | Description |
|---|---|---|

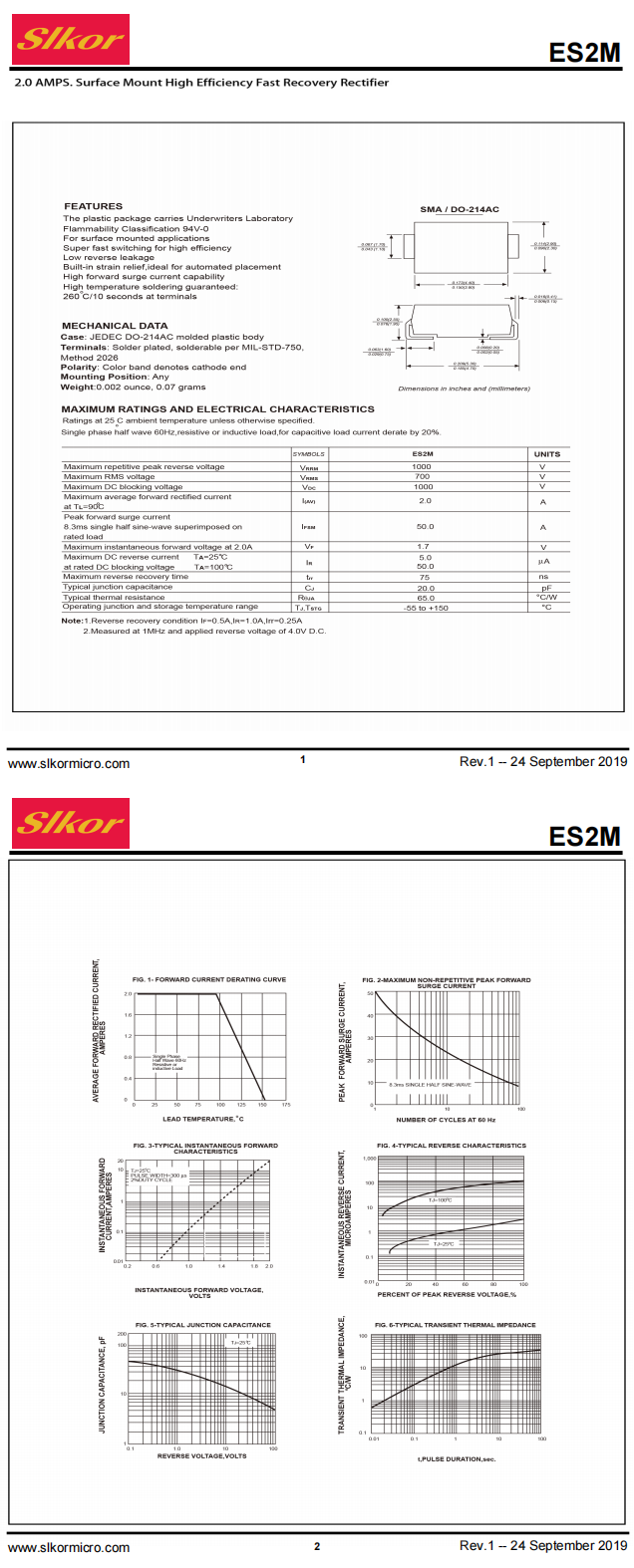

| ES2M SMA.pdf | ES2M SMA | - |
