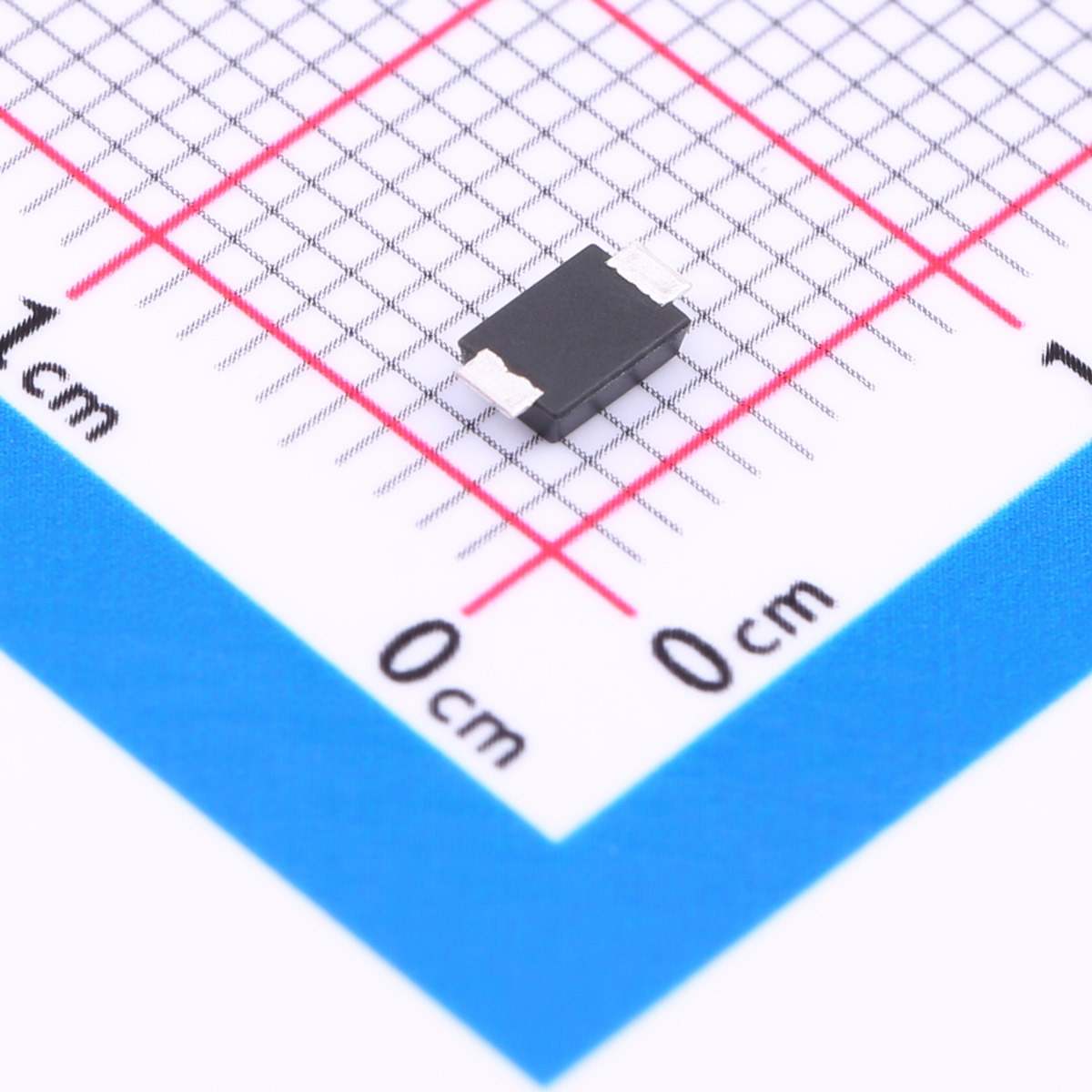

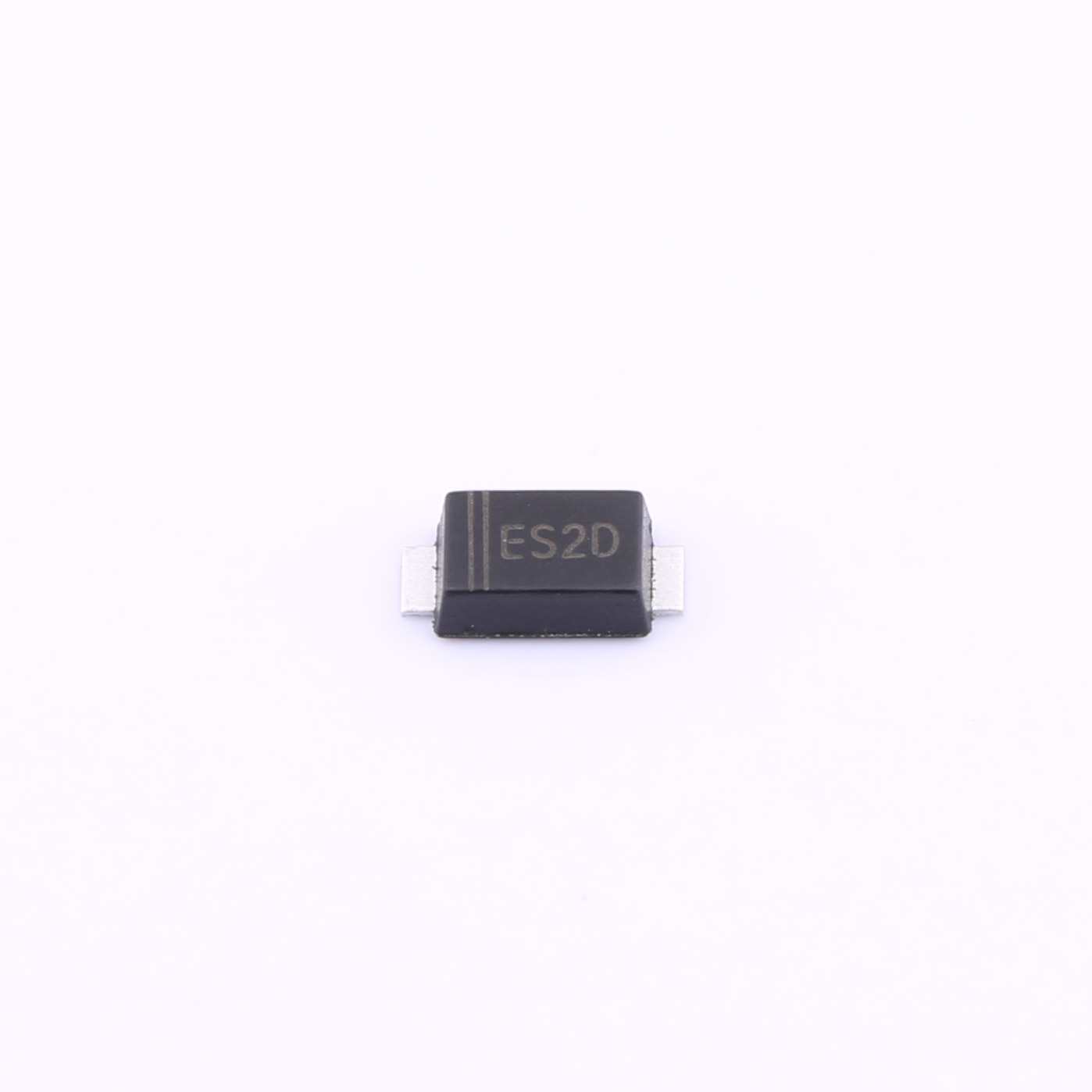

Introducing the ES2DF, a high-speed rectifier diode designed to deliver exceptional performance in fast-switching applications. Encapsulated in the SMAF package, this diode combines efficiency with reliability to meet the stringent demands of modern electronic circuits.
Download datasheet Inquiry
Surface Mount Superfast Recovery Rectifiers
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
Introducing the ES2DF, a high-speed rectifier diode designed to deliver exceptional performance in fast-switching applications. Encapsulated in the SMAF package, this diode combines efficiency with reliability to meet the stringent demands of modern electronic circuits.
Features
● For surface mounted applications
● Low profile package
● Glass Passivated Chip Junction
● Superfast reverse recovery time
● Lead free in comply with EU RoHS 2011/65/EU directives
Applications
● Switching Power Supplies: Ideal for use in fast-switching power supply applications where efficiency and speed are critical.
● Voltage Regulation: Suitable for rectification and voltage regulation tasks in DC-DC converters and voltage multiplier circuits.
● Telecommunications: Ensures reliable performance in telecom equipment such as routers, switches, and base stations.
● Consumer Electronics: Used in various electronic devices for rectification and energy conversion, ensuring stable operation and efficiency.
| File Name | Title | Description |
|---|---|---|

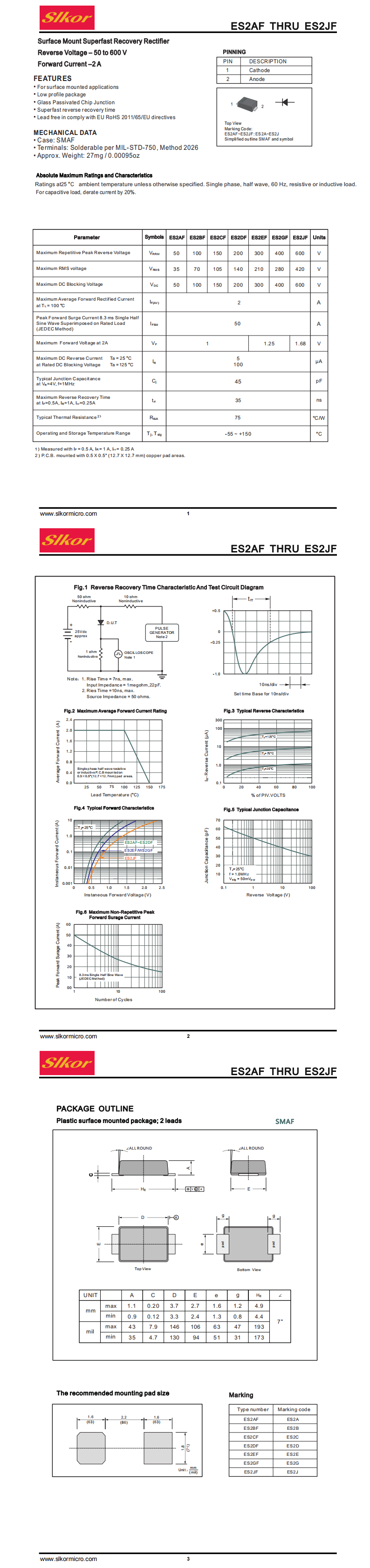

| ES2DF SMAF.pdf | ES2DF SMAF | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
This diode features a peak reverse voltage rating (VRRM) of 200V and is engineered to provide consistent performance with a forward voltage drop (VF) of 1V. Its fast reverse recovery time (trr) of just 50ns ensures efficient switching, making it ideal for high-speed applications. The diode boasts a low reverse leakage current (IR) of 5μA, enhancing its reliability and efficiency in various circuits.
This diode features a peak reverse voltage rating (VRRM) of 400V and is engineered to provide consistent performance with a forward voltage drop (VF) of 1.3V. Its fast reverse recovery time (trr) of just 50ns ensures efficient switching, making it ideal for high-speed applications. The diode boasts a low reverse leakage current (IR) of 5μA, enhancing its reliability and efficiency in various circuits.
This diode features a peak reverse voltage rating (VRRM) of 600V and is engineered to provide consistent performance with a forward voltage drop (VF) of 1.65V. Its fast reverse recovery time (trr) of just 75ns ensures efficient switching, making it ideal for high-speed applications. The diode boasts a low reverse leakage current (IR) of 5μA, enhancing its reliability and efficiency in various circuits.
This diode features a peak reverse voltage rating (VRRM) of 1000V and is engineered to provide consistent performance with a forward voltage drop (VF) of 1.65V. Its fast reverse recovery time (trr) of just 75ns ensures efficient switching, making it ideal for high-speed applications. The diode boasts a low reverse leakage current (IR) of 5μA, enhancing its reliability and efficiency in various circuits.
This diode features a peak reverse voltage rating (VRRM) of 200V and is engineered to provide consistent performance with a forward voltage drop (VF) of 1V. Its fast reverse recovery time (trr) of just 50ns ensures efficient switching, making it ideal for high-speed applications. The diode boasts a low reverse leakage current (IR) of 5μA, enhancing its reliability and efficiency in various circuits.
This diode features a peak reverse voltage rating (VRRM) of 400V and is engineered to provide consistent performance with a forward voltage drop (VF) of 1.3V. Its fast reverse recovery time (trr) of just 50ns ensures efficient switching, making it ideal for high-speed applications. The diode boasts a low reverse leakage current (IR) of 5μA, enhancing its reliability and efficiency in various circuits.
This diode features a peak reverse voltage rating (VRRM) of 600V and is engineered to provide consistent performance with a forward voltage drop (VF) of 1.65V. Its fast reverse recovery time (trr) of just 75ns ensures efficient switching, making it ideal for high-speed applications. The diode boasts a low reverse leakage current (IR) of 5μA, enhancing its reliability and efficiency in various circuits.
This diode features a peak reverse voltage rating (VRRM) of 1000V and is engineered to provide consistent performance with a forward voltage drop (VF) of 1.65V. Its fast reverse recovery time (trr) of just 75ns ensures efficient switching, making it ideal for high-speed applications. The diode boasts a low reverse leakage current (IR) of 5μA, enhancing its reliability and efficiency in various circuits.
