Invisible Forces, Tangible Electricity: How Do Hall Sensors Work?

2025-11-10 16:32:29 12

Have you ever wondered why the screen of your laptop turns off when you close the lid? Or why the screen of your smartphone rotates when you flip it over? Or how the motor of an electric vehicle can control its speed so precisely? These phenomena all rely on the work of an unsung hero—the Hall sensor.

wps2

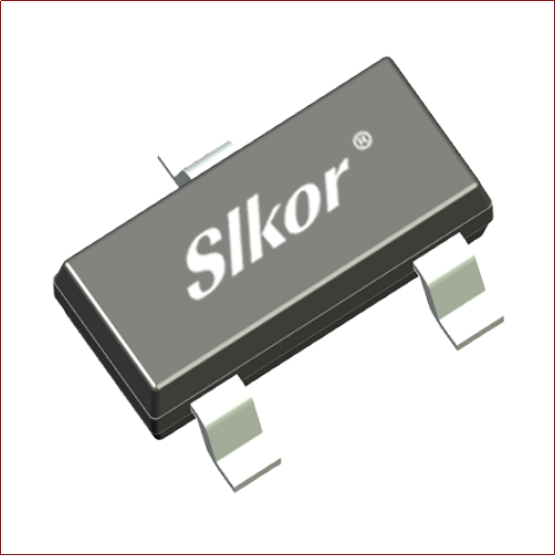

Slkor Hall Sensors

To understand how it works, we need to go back to a physics discovery made over a century ago.

1. The Origin: The Hall Effect—A Classic Physical Phenomenon

In 1879, a young physicist named Edwin Hall made a fascinating discovery during an experiment. He found that when an electric current passes through a thin conductor (or semiconductor) and a magnetic field is applied perpendicular to the current, something unexpected happens.

Let’s use a vivid analogy to help understand:

1. Imagine a highway (the conductor): Electrons are like cars driving at a constant speed, flowing in one direction, creating an electric current.

2. Apply a magnetic field: Now, a strong crosswind (the magnetic field) blows from the side of the highway. This wind pushes all the cars (electrons) as they drive.

3. Voltage Difference is Created: Due to the wind's push, the cars (electrons) shift toward one side of the highway. This causes more cars to gather on one side, while the other side becomes sparse.

4. This is the Hall Voltage: The accumulation of charges generates a voltage between the two sides of the highway, and this is known as the Hall voltage.

Key Takeaway: The Hall effect reveals that when a magnetic field and electric current interact, a voltage proportional to the magnetic field strength is generated across the conductor. The stronger the magnetic field, the greater the Hall voltage.

2. From Phenomenon to Device: The Components of Modern Hall Sensors

Now that we understand the principle, engineers began working on miniaturizing this phenomenon. They used advanced semiconductor technologies (like silicon and gallium arsenide) to integrate the "Hall plate," signal amplifiers, and processing circuits onto a tiny chip smaller than a grain of rice.

Here’s the general process:

1. Sensing: The Hall element (a tiny semiconductor) is exposed to an external magnetic field. When the magnetic field passes through it, it generates a very weak Hall voltage (typically in the microvolt range).

2. Amplification: This raw signal is too weak to be used directly, so an amplifier built into the chip boosts it to a usable level.

3. Processing: Depending on the design, the processing is divided into two main types, corresponding to the two most common types of Hall sensors:

Digital Hall Sensors (Switching/Latched):

Operation: The chip contains a Schmitt trigger (essentially a noise-immune comparator circuit). It compares the amplified voltage to a preset "threshold."

Result: When the magnetic field strength exceeds the "turn-on" threshold, the sensor’s output immediately switches from high to low (or vice versa), like flipping a switch. When the magnetic field weakens below the "turn-off" threshold, the output returns to its original state.

Applications: Contactless switches—For example, lid detection on laptops, car door lights, electric toothbrush activation.

Analog Hall Sensors (Linear):

Operation: The output voltage is directly proportional to the magnetic field strength. The stronger the magnetic field, the higher the output voltage; the weaker the field, the lower the output voltage.

Result: These sensors provide continuous signals, allowing them to detect not only the presence of a magnetic field but also its strength and polarity (north or south).

Applications: Contactless distance, angle, and current measurements—For example, throttle position sensors in cars, joint angle measurement in robotics, and current detection in circuits (by measuring the magnetic field around a live wire, it indirectly calculates the current—very safe).

3. Ubiquitous Applications: Why Do We Love Hall Sensors?

The appeal of Hall sensors lies in their contactless operation, long lifespan, high reliability, and high-frequency response.

Contactless: No physical contact means no mechanical wear, no sparking, and extremely long life—ideal for harsh environments (dust, oil, vibration).

High Speed: They respond incredibly fast, making them perfect for detecting high-speed rotating objects, such as motor speed measurement.

High Accuracy: Linear Hall sensors provide very precise measurements.

As a result, you can find them in a variety of settings:

Consumer Electronics: Automatic screen rotation on phones and tablets; lid detection for Bluetooth earphone cases.

Industrial and Automotive: Motor speed control; piston position detection in cylinders; commutation in brushless motors; current monitoring in battery management systems.

Home Appliances: Drum speed measurement in washing machines; flow measurement in water purifiers.

Conclusion

From the pure physics discovery in 1879 to the smart "sensors" embedded in billions of devices today, Hall sensors perfectly demonstrate how basic science can drive technological revolutions. They act as a bridge, turning invisible, intangible magnetic fields into precise electrical signals that electronic systems can understand and use. The next time your phone screen lights up as you rotate your wrist, you can smile, knowing that the brilliance of Dr. Hall and countless engineers is quietly working behind the scenes to serve you.
