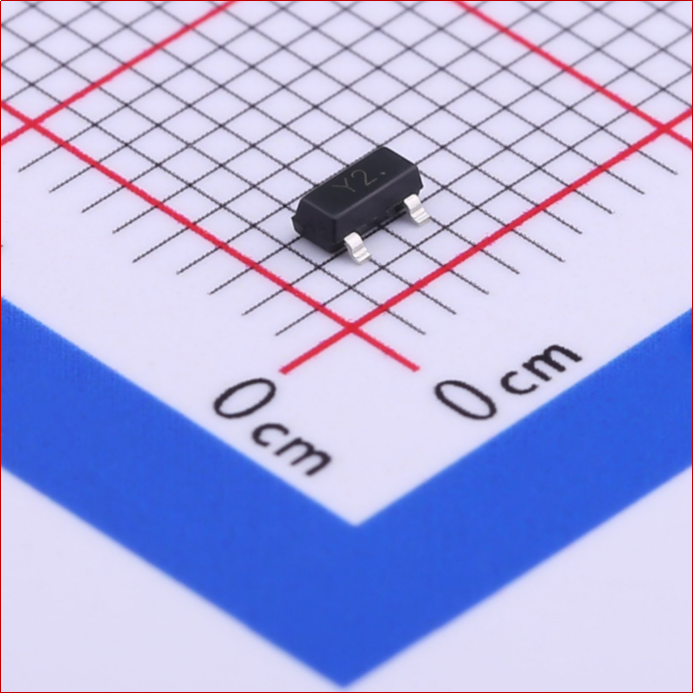

No.1. S8050
main applications include but are not limited to the following aspects:Amplifier circuit : S8050 can be used to amplify audio, video, RF and other signals, such as in audio equipment, radios, televisions, etc. as a preamplifier or power amplifier.
Switch circuit : Because the switching speed of S8050 is fast, it can be used in digital circuits for switch control, such as in computers, mobile phones, etc. as a switching element of logic gates.
Power management : In some power management circuits, S8050 can be used as a switching tube to control the on and off of the power supply to achieve efficient power management.
Driver circuit : S8050 can be used to drive loads such as relays, solenoid valves, and motors, such as in automation control systems, robots, etc. as a driving element.
Oscillator : S8050 can be combined with other components to form an oscillator to generate sinusoidal waves, square waves, and other signals, such as in clock circuits, counters, etc. as an oscillating element.

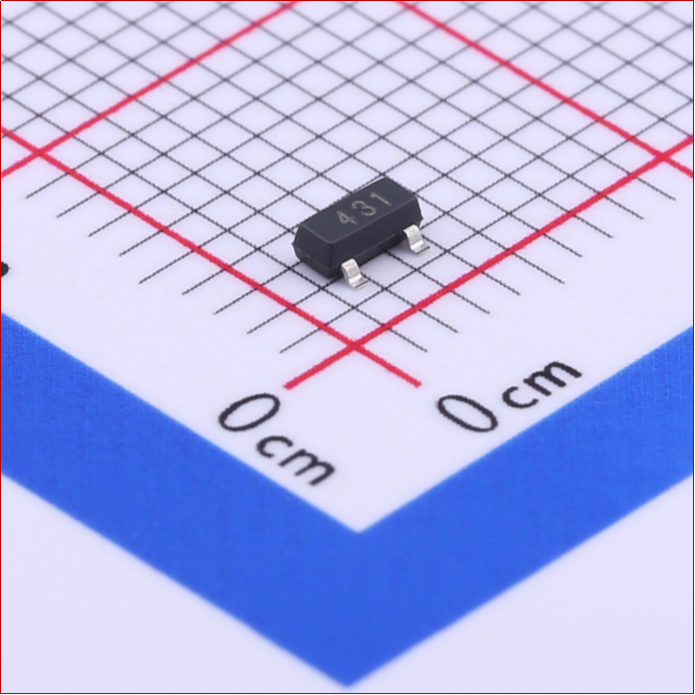

No.2. TL431 main applications are as follows:
Reference voltage source : TL431 can provide a stable reference voltage for calibration, measurement, and comparison of voltages in circuits. It can be used as a reference voltage for other circuit modules to ensure the accuracy and stability of the entire system.
Voltage regulation : TL431 can be used in conjunction with an external resistor divider network to achieve precise voltage regulation. By changing the value of the voltage divider resistor, the output voltage can be adjusted to meet different application requirements.
: In power management circuits, TL431 is often used to monitor the power supply voltage and perform feedback control. It can be used with an error amplifier to form a feedback loop to ensure the stability and accuracy of the power supply output.
: TL431 can be used in overvoltage protection circuits. When the input voltage exceeds the set threshold, TL431 can trigger a protection action, such as turning off the power supply or issuing an alarm, to prevent damage to the circuit.
Battery charger : In battery chargers, TL431 can be used to control the charging voltage to ensure the safety and efficiency of the battery charging process.
Sensor interface : TL431 can be used with sensors to convert the output of the sensor into a standard voltage signal for subsequent processing and measurement.
: TL431 can be used in analog signal processing circuits, such as as a reference voltage for filters, amplifiers, and comparators.
Here are some specific application examples:
In data acquisition systems , TL431 can be used as a reference voltage for ADC (analog-to-digital converter) to ensure the accuracy of the conversion results.
In electronic loads , TL431 can be used to control the load voltage to achieve constant voltage or constant current mode of operation.
In power supply modules , TL431 can be used to adjust the output voltage to meet the power supply requirements of different devices.
In automotive electronics , TL431 can be used in battery management systems to monitor battery voltage and perform charging control.
No.3. SS8550 uses :
Amplification : It can amplify weak signals into electrical signals with a large amplitude, and is often used in audio amplification, oscillators, and other circuits.
: It can be used as a contactless switch to control the on and off of the circuit.
Voltage stabilization : It can play a role in stabilizing the voltage in some voltage stabilization circuits.
Electronic load : It can be used to build an electronic load to simulate the working conditions of the actual load.
RF circuit : It can be used in RF circuits for signal amplification and frequency conversion.
No.4. FR107 main applications include:
High-frequency rectification : In the secondary rectification part of the switching power supply, due to the high operating frequency, a fast recovery diode is required for rectification. FR107 can quickly turn on and off, reducing energy loss and improving the overall efficiency of the power supply.
Freewheeling : In circuits with inductive loads, when the switching tube is turned off, the inductor will generate a reverse electromotive force. FR107 can provide a freewheeling path to protect the switching tube from reverse voltage impact.
: FR107 can be used in circuit protection, such as at the input or output of the power supply, to prevent damage to the circuit from overvoltage or overcurrent.
Other applications : FR107 can also be used in electronic devices such as charging circuits, LCD power supplies, electronic flash cameras, and Bluetooth devices.

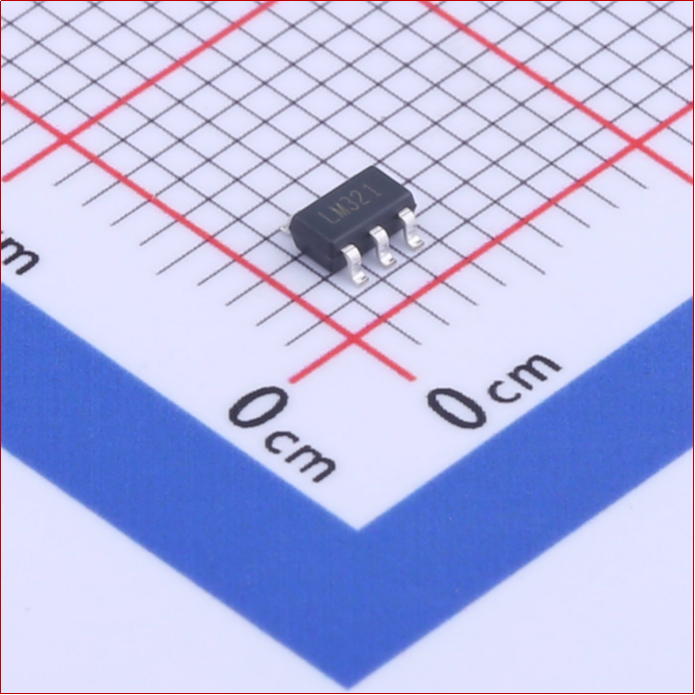

No.5. LM321 main applications include but are not limited to the following aspects:
Signal amplification : LM321 can amplify input signals, such as audio signals and sensor signals. It can amplify weak signals to a level sufficient to drive subsequent circuits.
Signal processing : Operational amplifiers can be used for various signal processing tasks, such as filtering, summing, integration, and differentiation. By configuring external circuit components, different types of filters and signal processing functions can be realized.
: LM321 can be used as a comparator to compare the input signal with the reference voltage and output the corresponding logic level. This is very useful in detection and control applications.
Data acquisition : In data acquisition systems, operational amplifiers can be used for signal conditioning and amplification to improve measurement accuracy and resolution.
Sensor interface : It can interface with various sensors to amplify and process the output signals of the sensors for subsequent processing and analysis.
Audio amplification : In audio equipment, LM321 is often used in preamplifiers, power amplifiers, and other circuits to provide audio signal amplification and processing.
Industrial control : In industrial automation systems, operational amplifiers can be used in sensor signal processing, motor control, process control, and other applications.
Laboratory and test equipment : LM321 is widely used in laboratory and test equipment for signal amplification, measurement, and analysis.

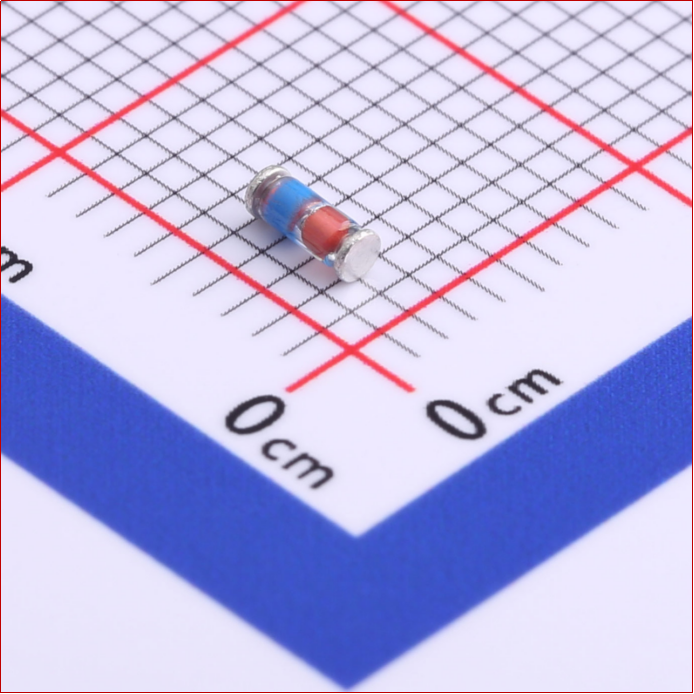

No.6. ZMM5V6
Power supply voltage stabilization : In the power supply circuit, ZMM5V6 can stabilize the output voltage to ensure a stable power supply for other components in the circuit.
Signal processing : In signal processing circuits, it can be used as a reference voltage to help maintain the accuracy and stability of the signal.
Protection circuit : ZMM5V6 can be used to protect other components from damage caused by excessive or too low voltage, such as in overvoltage protection circuits.
Reference voltage source : Provide an accurate reference voltage for other circuits.

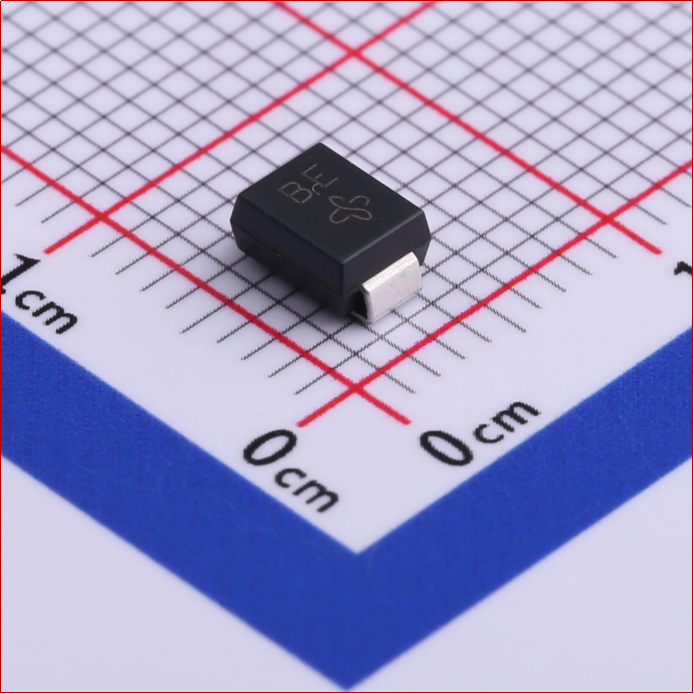

No.7. SMBJ12CA

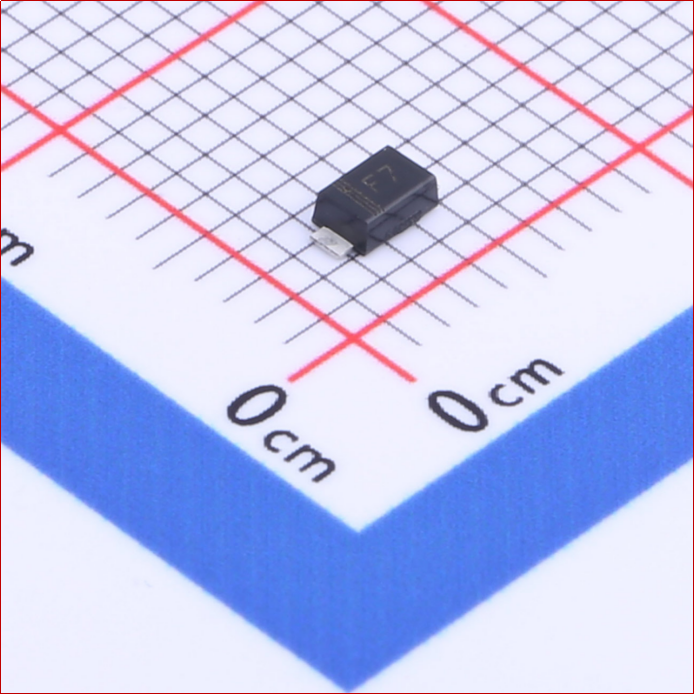

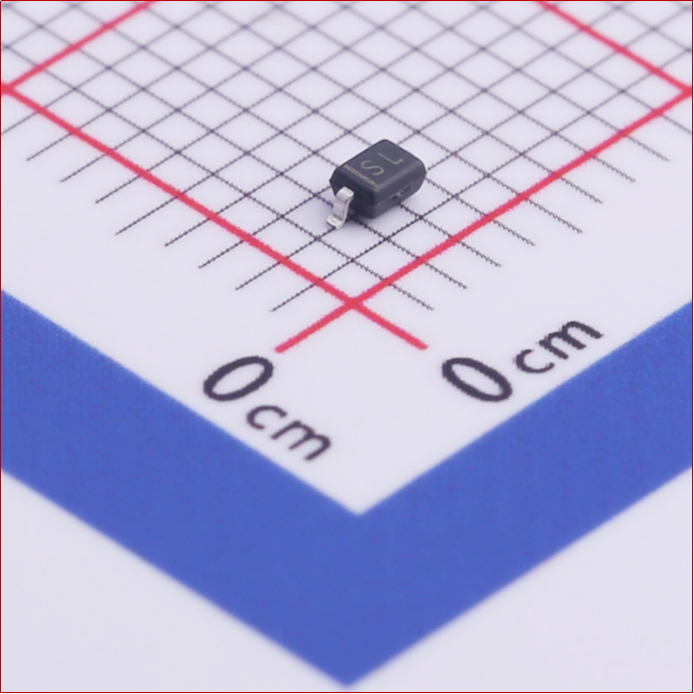

No.8. B5819WS

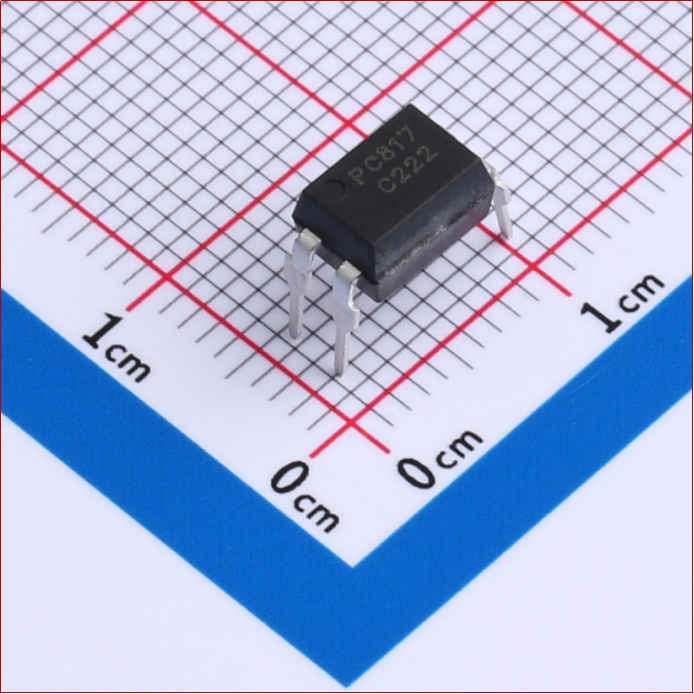

No.9. PC817C common uses :
Isolation of signals : PC817C can convert the electrical signal on the input side into an optical signal, and then optically couple it to the output side to achieve electrical isolation between the input and output. This helps prevent the spread of noise, interference, and voltage fluctuations, improving the safety and reliability of the system.
Level conversion : It can be used for signal conversion between different levels. For example, convert the TTL level of a logic circuit to the required other level, such as the CMOS level.
Signal amplification : The optocoupler can be used to amplify weak electrical signals. The electrical signal on the input side is optically coupled to the output side, and the photosensitive element on the output side can convert the optical signal into a stronger electrical signal.
Isolation drive : In some applications that require isolated drive, such as motor drive and relay control, PC817C can be used to isolate the control signal and the driven load to ensure safety and prevent interference.
Communication interface : It is often used in data communication interfaces, such as serial ports and parallel ports, to achieve data isolation and transmission.
Power isolation : In power supply circuits, PC817C can be used to isolate the power supply and load to prevent the influence of power supply noise and fluctuations on the load.
System protection : When the electrical signal on the input side is abnormal, such as overvoltage and overcurrent, the optocoupler can play a protective role to prevent damage to the subsequent circuit.

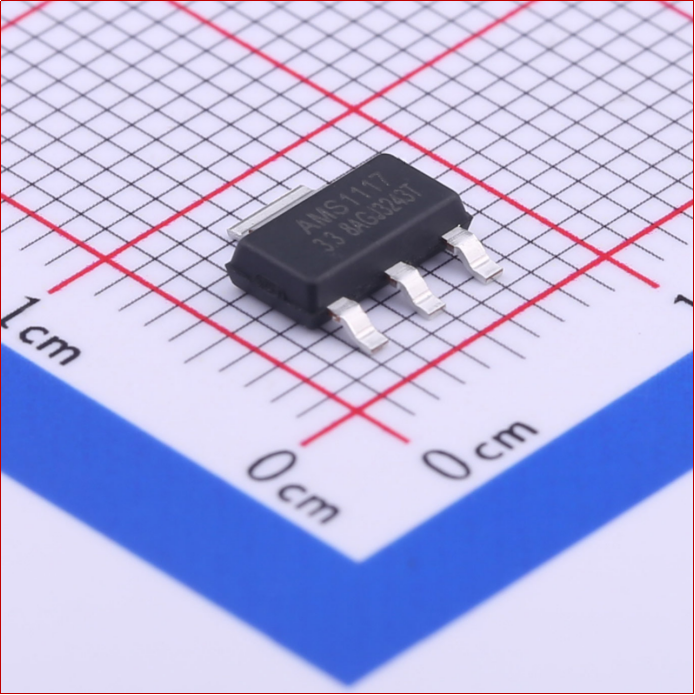

No.10. AMS1117-3.3 characteristics and applications :
l Stable output voltage: It can provide an accurate 3.3V output voltage.
l Low dropout voltage: The dropout voltage between the input voltage and the output voltage is small during operation.
l Overcurrent protection: Has a certain overcurrent protection capability to prevent the circuit from being damaged by excessive current.
l Overheat protection: It has an internal integrated overheat protection circuit to avoid damage to the chip due to overheating.
l Small package: There are various package forms, such as SOT-223, TO-252, etc., suitable for different application scenarios.
Applications :
l Provide a stable 3.3V power supply for electronic devices, such as embedded systems, sensors, power modules, development boards, etc.
l As a power management chip in circuits that require 3.3V voltage, ensure the normal operation of the circuit.
l Used in switched-mode power supplies to convert 5V voltage to 3.3V voltage.
l Provide a stable power supply for various electronic instruments and equipment to ensure their performance and reliability.
l When using AMS1117-3.3, attention should be paid to the input voltage range, load current, and heat dissipation conditions to ensure its normal operation and provide a stable output voltage. At the same time, the appropriate package form and pin arrangement should also be selected according to the specific application requirements.
