The common role of 7 MOSFET gate circuits, don't see it!

Technical Blogs|Technical Blogs|

2022-03-17 18:44:00 60

summary

MOSFET is a common voltage-type control device, which has a series of advantages such as fast switching speed, high frequency performance, high input impedance, low noise, low driving power, large dynamic range and wide safe working area (SOA). Therefore, it is widely used in switching power supply, motor control, power tools and other industries. As the weak link of MOSFET itself, if the circuit design is improper, it will easily lead to the failure of the device or even the system. Therefore, this article will sort out the common circuits of the gate for your reference and discussion, and you are welcome to put forward your own views.

Common functions of MOSFET gate circuits are as follows:

1、Remove the noise coupled into the circuit and improve the reliability of the system.

2、Accelerate the conduction of MOSFET and reduce the conduction loss.

3、Accelerate the turn-off of MOSFET and reduce the turn-off loss.

4、Lower di/dt of MOSFET, protect MOSFET DI/DT suppress EMI interference.

5、Protect the grid to prevent grid breakdown under abnormal high voltage.

6、Increasing the driving capability, MOSFET can be driven under a small signal.

The above is the function of the gate circuit that I can think of. Welcome to add your thoughts, and I will post the corresponding circuits for your discussion.The above is the function of the gate circuit that I can think of. Welcome to add your thoughts, and I will post the corresponding circuits for your discussion.

First of all, let's talk about the direct driving of power IC. The following figure is our most commonly used direct driving mode. In this kind of mode, we have not done too much processing on the driving circuit, so we should try our best to optimize the PCB LAYOUT. For example, shorten the trace length from IC to MOSFET gate, increase the trace width, and place Rg as far as possible from MOSFET gate, so as to reduce parasitic inductance and eliminate noise.

0 1 Direct drive

818432044c1fae7872a50bd9edc762cd

Of course, another problem we have to consider is the driving capability of PWM CONTROLLER. When the MOSFET is large, the driving capability of IC is small, and there will be problems such as too slow driving, too large switching loss or even inability to drive. We need to pay attention to this when designing.

0 2 When IC internal drive capability is insufficient

Of course, we can also use the following methods to solve the problem of insufficient internal driving capability of IC.

c87dec333885ce1c6e410f1912172b8a

This way of increasing driving capability not only increases the on time, but also accelerates the off time, and at the same time, it has certain effect on controlling burr and power loss. Of course, we should try our best to place these two tubes near the gate of MOSFET in LAYOUT. This has the advantage of reducing parasitic inductance and improving the anti-interference performance of the circuit.

0 3 Increase the turn-off speed of MOSFET

If we only want to increase the turn-off speed of MOSFET, then we can do it in the following way.

223c536057c7b7a880390d32adfeb758

When the turn-off current is large, the discharge speed of MOSFET input capacitor can be faster, thus reducing the turn-off loss. High discharge current can be achieved by selecting MOSFET with low output impedance or negative voltage device with N-channel cut-off, the most commonly used one is adding accelerating diode.

When the gate is turned off, the voltage drop caused by the current on the resistor is greater than that of the diode when it is turned on, and then the diode will turn on, thus bypassing the resistor. After turning on, with the decrease of the current, the role of the diode in the circuit becomes smaller and smaller, which will significantly reduce the delay time of turning off the MOSFET.

Of course, this circuit has a certain disadvantage, that is, the current at the gate still needs to pass through the output drive impedance inside the IC. What can be done to solve this problem?

Let's talk about the PNP accelerated shutdown drive circuit:

0 4 PNP accelerated shutdown drive circuit

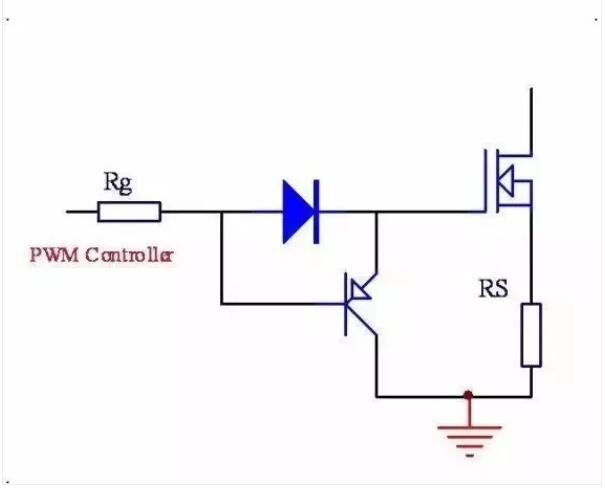

Let's talk about the following PNP accelerated shutdown circuit.

df634278a635cc56b64be2e678218101

The PNP turn-off circuit is the most widely used circuit at present, which can realize the instantaneous gate-source short circuit under the action of the accelerating diode, thus achieving the shortest discharge time. The reason why the diode is added is to protect the base of the diode on the one hand, and to provide a circuit and bias for the conduction current on the other. The advantage of this circuit is that it can achieve the push-pull effect approximately, and the acceleration effect is obvious. The disadvantage is that the gate can't really reach 0 volts because it passes through two PN sections.

0 5 Driving when the source output is high voltage

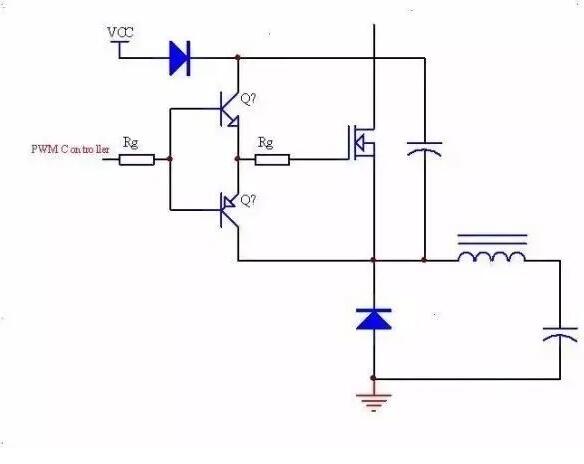

When the source output is high voltage, we need to use the bias circuit to achieve the purpose of circuit operation, that is, we set up the bias circuit with the source as the reference point, the driving voltage fluctuates between two voltages, and the deviation of the driving voltage is provided by the low voltage, as shown in the following figure.

32d947ec2858980eddc79c2ad7091d41

Of course, there is something wrong with this picture. I wonder if any heroes can see it?

Actually, the problem is that the "driving power supply" needs to be suspended, and the source of MOS should be "grounded" (to impress everyone)

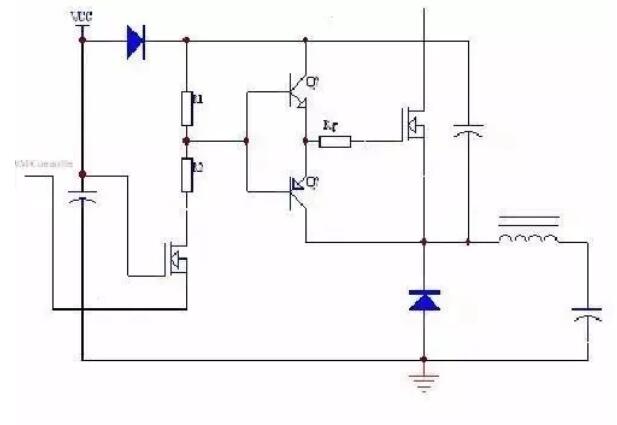

This is the correct drawing. For your reference:

f23603e7c376b7ab962a1ce50144ac57

0 6 Drive meeting isolation requirements

In order to meet the requirements of safety isolation or provide high-end floating gate drive, transformer drive is often used. This drive isolates the drive control from the MOSFET and can be applied to low-voltage and high-voltage circuits, as shown in the following figure:

70717fde4394e582c97a3830b5289c90

To put it bluntly, transformer drive is isolated drive. Now, of course, there are special driver IC to solve it, but transformer drive has its own characteristics, which makes many people insist on using it all the time.

The function of the coupling capacitor in the figure is to provide reset voltage for the magnetized magnetic core. Without this capacitor, magnetic saturation will occur.

The function of the resistor connected in series with the capacitor is to prevent the sudden change of duty cycle from causing LC oscillation, so this resistor is added to relieve it.

0 7 Bootstrap inverter diagram

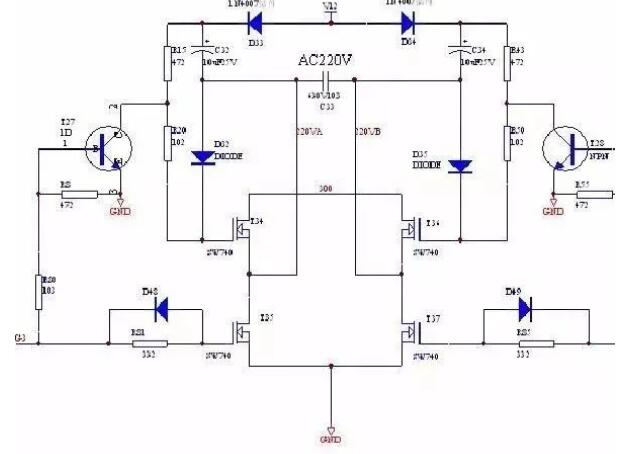

The following actual bootstrap inverter diagram is for reference:

62358d7011909630d956417d10d4f592
