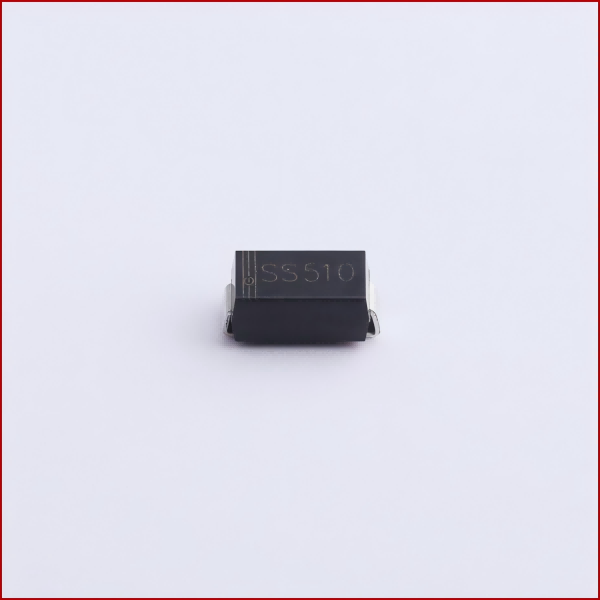

SS510 Schottky Diode: The Ideal Choice for High-Frequency Applications

2025-09-13 15:30:54 102

In the rapidly evolving world of electronics, where high-frequency switching applications continue to push boundaries, a high-performance and adaptable semiconductor device is a key factor in driving development across multiple fields. The SS510 Schottky Diode, launched by Slkor, has become a widely used product in high-frequency applications, thanks to its precise parameters, outstanding advantages, and reliable performance.


Precise Parameters, Defining Performance Benchmarks

The parameters of the SS510 are like a set of precise coordinates, clearly outlining its performance profile. It features a 100V DC reverse voltage rating (Vr), allowing it to operate stably under reverse voltage conditions. This provides reliable protection against reverse voltage spikes, effectively preventing device damage and ensuring the safe operation of circuits.

The SS510 has an average rectified current (Io) of 5A, which means it can handle higher currents and meet the demands of high-power circuits. Whether it's powering large motors in industrial production or converting high-power energy in the energy sector, the SS510 can provide consistent and strong power support for equipment.

Its forward voltage drop (Vf) is 850mV at 5A. This low forward voltage drop significantly reduces conduction losses. During operation, electrical energy is transmitted more efficiently, reducing unnecessary energy waste and improving the overall energy utilization of the circuit. This is especially significant in energy-saving and high-efficiency applications.

Significant Advantages, Creating Exceptional Performance

Low Loss, Improving Circuit Efficiency

One of the core advantages of the SS510 is its low conduction loss due to its low forward voltage drop. In power converters, this characteristic greatly reduces energy loss during the conversion process. For example, when converting AC to DC, using the SS510 reduces heat generation, improves power conversion efficiency, extends equipment lifespan, and lowers energy consumption, in line with the current trend toward green and energy-saving technologies.

Fast Recovery, Optimized for High-Frequency Switching

Fast recovery time is the "secret weapon" of the SS510 in high-frequency switching applications. In high-frequency switching circuits, the speed of signal transitions is crucial, and the recovery time of the diode directly affects the efficiency and performance of the switching process. The SS510 can quickly return to its non-conducting state, significantly reducing switching delays, ensuring faster and more accurate signal transmission and processing. In RF amplifiers and communication devices, it ensures stable transmission of high-frequency signals, improving communication quality and meeting the modern demand for high-speed and stable communication technologies.

High Current Capacity, Ready for High-Power Challenges

The SS510's ability to handle high current makes it ideal for high-power circuits. In motor drive applications, motors require substantial current support during startup and operation. The SS510 can provide the required current, enabling quick response and efficient operation of the motor. Whether in large industrial machinery or precise motors in home appliances, the SS510 enhances motor performance and reliability by handling high current demands.

High-Temperature Stability, Adapting to Harsh Environments

The SS510's high-temperature stability ensures reliable operation even in extreme conditions. In solar inverters, for example, the equipment is often exposed to outdoor environments where it faces high temperatures. Even in these conditions, the SS510 maintains stable performance, ensuring efficient conversion of solar energy into electrical energy and providing reliable support for the use of renewable energy.

Advanced Manufacturing Process, Ensuring Reliable Quality

The SS510 utilizes advanced manufacturing processes, which form the solid foundation for its outstanding performance and reliable quality. The precision of these processes ensures consistent microscopic structures, meaning each SS510 diode offers the same excellent performance. Moreover, the advanced process gives the SS510 stability and durability in extreme conditions, allowing it to withstand high temperatures, high humidity, and strong electromagnetic interference, providing a robust guarantee for the long-term stable operation of circuits.

Conclusion

Slkor, as a manufacturer dedicated to providing high-quality, high-performance semiconductor devices, offers the best solutions and support for customer designs through advanced technology and strict quality control systems. The SS510 Schottky Diode, with its precise parameters, outstanding advantages, reliable quality, and wide range of applications, has become the ideal choice for high-frequency applications, driving significant progress in the electronics industry.

About Slkor：

SLKOR, headquartered in Shenzhen, China, is a rapidly emerging national high-tech enterprise in the power semiconductor sector. With R&D centers in Beijing and Suzhou, its core technical team originates from Tsinghua University. As an innovator in silicon carbide (SiC) power device technology, SLKOR's products are widely used in new energy vehicles, photovoltaic power generation, industrial IoT, and consumer electronics, providing critical semiconductor solutions to over 10,000 clients globally. The company delivers more than 2 billion units annually, with its SiC MOSFETs and 5th-generation ultrafast recovery SBD diodes setting industry benchmarks in efficiency ratio and thermal stability. SLKOR holds over 100 invention patents and offers 2,000+ product models, continually expanding its IP portfolio across power devices, sensors, and power management ICs. Certifications including ISO 9001, EU RoHS/REACH, and CP65 compliance demonstrate the company's steadfast commitment to technological innovation, lean manufacturing, and sustainable development.
