Because the inverter layout design is simple and the number of devices is very small, the demonstration at the back of this article still uses the Layout L tool. You can experiment with the Layout XL tool yourself.

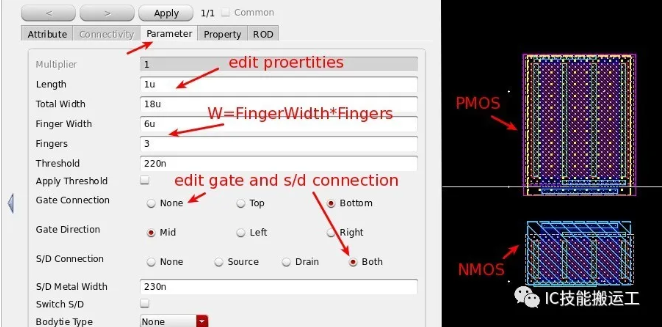

After switching in NMOS and PMOS transistors, select the device, and press the shortcut key Q to edit the device attributes according to the dimensions in the schematic diagram, so that the W and L of the MOS tube are consistent with those in the schematic diagram.

c70c73294e77fc2a7dc831ec00eb2c66

The relationship between the number of Fingers and the Finger Width, as long as the Total Width of the device is consistent with the design value.

The device calling PDK can also choose whether to add Gate Connection and whether to connect source and drain (S/D Connection, which is only useful for multi-interdigital structure). The functions provided by these PDK allow users to draw the layout conveniently.

0eb33b6faa2de6064f9cf1316d0d1037

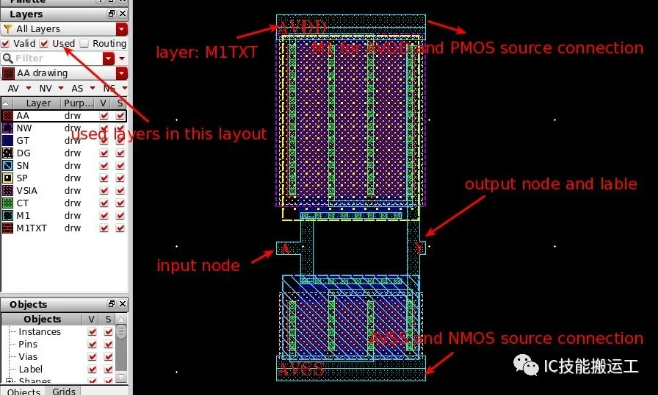

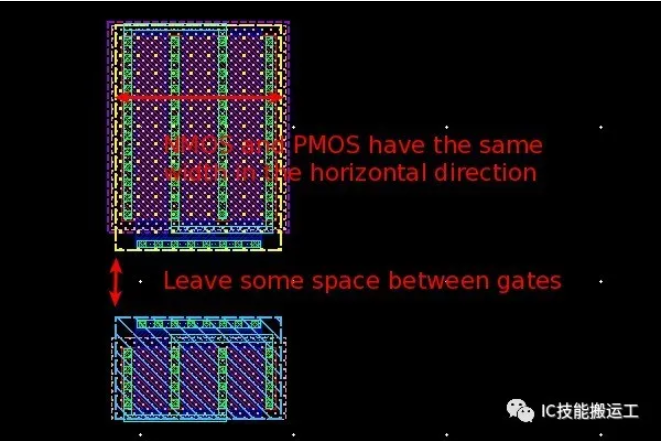

The devices with adjusted size and layout are shown in the figure. Next, start connecting devices, select M1 in LWS column, then use shortcut key P or R to complete the connection between MOS tubes, reserve the lines of AVDD and AVSS at the upper and lower positions respectively, and finally use shortcut key L to name the connection nodes (use txt layer corresponding to metal, for example, M1TXT layer). After completing the above steps, the layout should look similar to the screenshot below.

3872d250b712402a42670c544abecaa1

The remaining content, which may not be easy to understand, and is easily overlooked by many beginners, is to add substrate contact to NMOS and PMOS. So what is substrate contact?

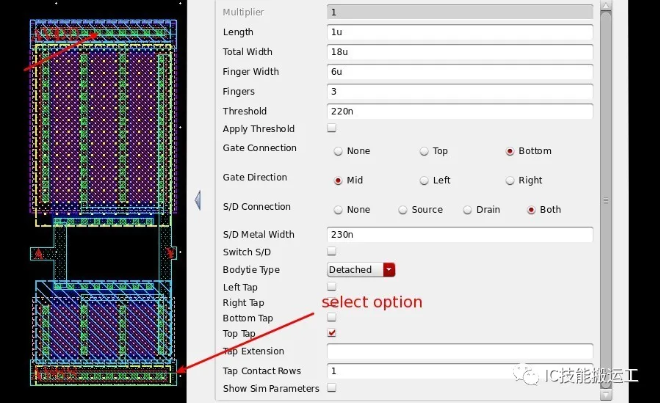

We all know that MOS is a four-terminal device. This can also be noticed in the schematic diagram. The substrate contact in the layout is the fourth terminal of MOS, which is the substrate of the whole chip for NMOS (only for standard CMOS technology) and NWell for PMOS. Therefore, the substrate contact of NMOS is made on p plus, and the substrate contact of PMOS is made on NWell. The realization of substrate contact can also be clearly seen in the cross-sectional view of inverter.

6cea98720d3317a74f105b5649e57c39

After completing the above steps, you can select: Edit->Advanced->Move Origin in the layout design interface, and select the coordinate origin of the layout, which will be more convenient when you need to call it later.
