??Introduction of SCR parameters and models

??Silicon controlled rectifier (SCR), the abbreviation of SCR rectifier, is a high-power semiconductor device with four layers of three PN junctions, also known as thyristor. With the characteristics of small size, relatively simple structure and strong functions, it is one of the commonly used semiconductor devices. This device is widely used in all kinds of electronic equipment and products, such as controllable rectification, inverter, frequency conversion, voltage regulation, contactless switch, etc. Silicon controlled devices are widely used in dimming lamps, speed regulating fans, air conditioners, TV sets, refrigerators, washing machines, cameras, stereo sets, acousto-optic circuits, timing controllers, toy devices, radio remote control, video cameras and industrial controls. The electrode leads of the bidirectional thyristor are irregular, and the G pole is usually led out at the T1 pole side instead of the T2 pole side. There is still a difference between the two main electrodes T1 and T2 of the triac. The trigger of the triac is usually relative to the current between T1 and G.

??1、Parameters of SCR

??(1) Classification according to turn-off, turn-on and control modes: SCR can be divided into ordinary SCR, bidirectional SCR, reverse thyristor, gate turn-off thyristor (GTO), BTG thyristor, temperature-controlled thyristor and light-controlled thyristor according to its turn-off, turn-on and control modes.

(2) Classification by pin and polarity: SCR can be divided into two-pole SCR, three-pole SCR and four-pole SCR according to its pin and polarity.

(3) Classification according to packaging form: SCR can be divided into three types according to its packaging form: metal packaged SCR, plastic packaged SCR and ceramic packaged SCR. Among them, metal-encapsulated SCR is divided into bolt shape, flat plate shape, round shell shape, etc. Plastic-sealed SCR is divided into two types: the type with heat sink and the type without heat sink.

(4) Classification according to current capacity: SCR can be divided into high power SCR, medium power SCR and low power SCR according to current capacity. Usually, high-power silicon controlled rectifiers are mostly packaged in metal shells, while medium and low-power silicon controlled rectifiers are mostly packaged in plastic or ceramic.

(5) Classification according to turn-off speed: SCR can be divided into ordinary SCR and high-frequency (fast) SCR according to its turn-off speed.

(6) Zero-crossing trigger-generally, it is power adjustment, that is, when the sine alternating current voltage phase zero-crossing trigger, it must be zero-crossing before it is triggered. Introduction of thyristor parameters.

(VII) Non-zero-crossing trigger-the thyristor can be triggered when the AC voltage is in any phase. The common trigger is phase shifting, that is, the output percentage can be changed by changing the conduction angle (angular phase) of sinusoidal AC.

2. The rated on-state current (IT) is the maximum stable working current, commonly known as current. The IT of commonly used SCR is generally one ampere to several tens of amperes.

Repetitive peak voltage (VRRM) or off-state repetitive peak voltage (VDRM), commonly known as withstand voltage. The VRRM/VDRM of commonly used SCR is generally several hundred volts to one thousand volts.

Control electrode trigger current (IGT), commonly known as trigger current. The IGT of commonly used SCR is generally several microamperes to several tens of milliamps.

Under the specified ambient temperature and heat dissipation conditions, the average current allowed to pass through the cathode and anode.

??2、Introduction of common single and bidirectional SCR models

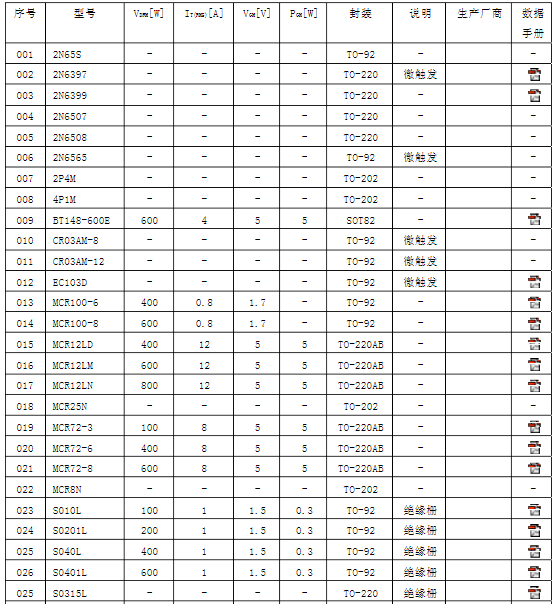

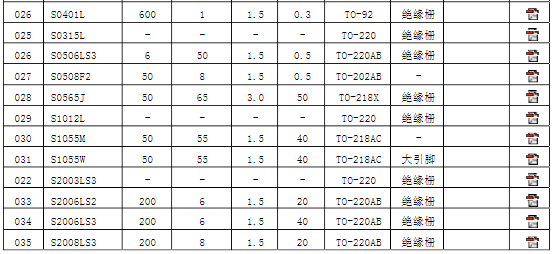

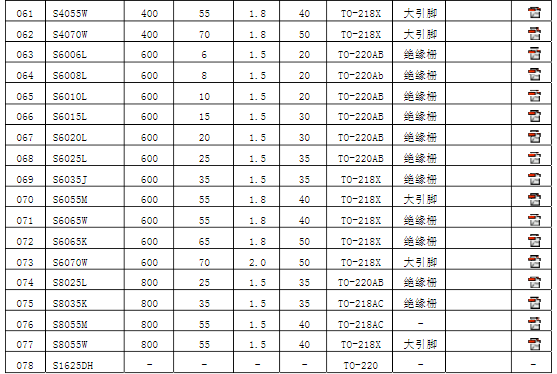

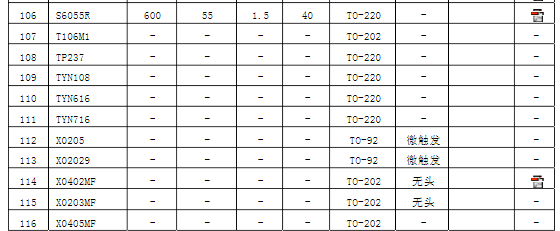

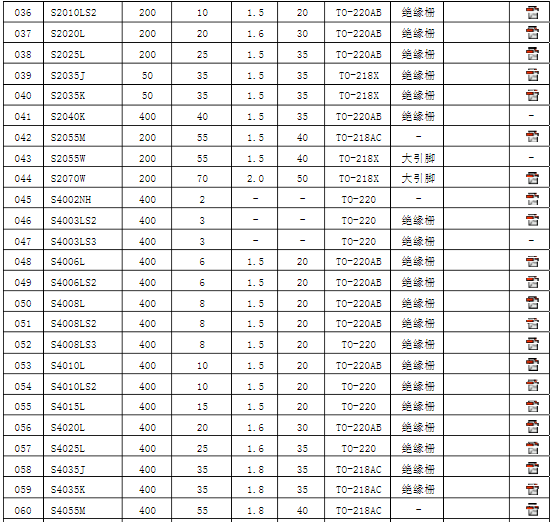

??1、Commonly used unidirectional silicon controlled rectifier:

?? f078a206d7450b167f3d56669027c215
   89251ddb4dc3c33c86cecc0b249c2e7e
   0262f5edf7138712105c5ebd1e3eeffa
   6fef0199df28dc1f8480162a1133213c
   e3c6c73474b3e754d7b85ed8938299b5
e61dfa8f49b35f7242a1d3721b11f4f5

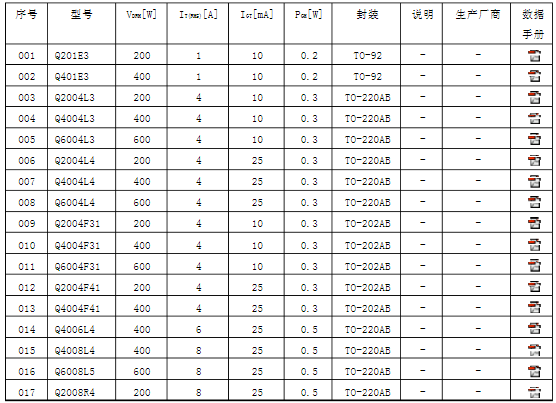

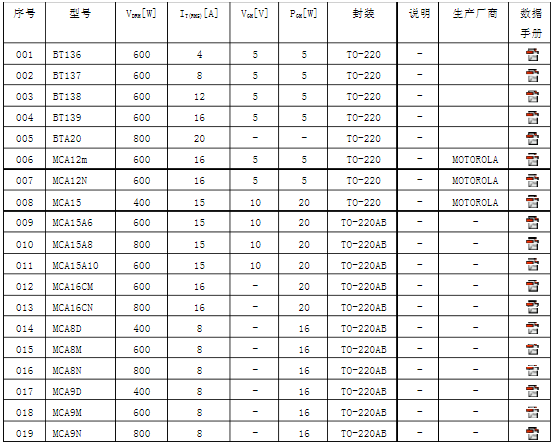

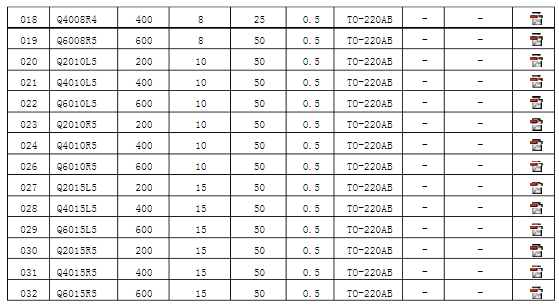

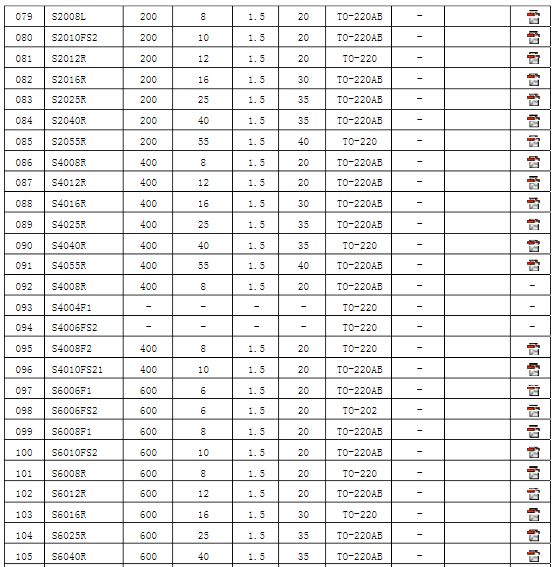

??2、Commonly used bidirectional thyristor:

?? 0efa77b1dca19953f0cf315d5c26ea7a
e481d9b8ebb8a6eaaa74d45259fd359f
ae9b61023f83dbaca5d96f2ad3abe14d

The above is the introduction of SCR models. SCR is the key product used as the control switch of electrical products in our daily life, as well as the function of frequency conversion and voltage regulation. It can help us to better control the use of home appliances, and our understanding of SCR models can help us to make different choices so as to choose different SCR for different electrical products.
