Addressing the signal transmission challenges in the power electronics field, SlkorMicro's optocoupler SL-1007 empowers high-performance applications

Technical Blogs|Technical Blogs|

2023-05-25 16:00:38 968

Slkor is a high-tech enterprise that integrates design, research and development, manufacturing, and sales services. It has mastered the core technology of silicon carbide power devices. Currently, the "Slkor" brand is widely accepted by peers and customers, making SlkorMicro one of the rapidly growing and robust semiconductor companies in China. SlkorMicro's vision is to become a leader among domestic semiconductor enterprises. SlkorMicro (www.slkoric.com) continuously introduces new products, and recently launched the SlkorMicro optocoupler SL-10XX series devices.

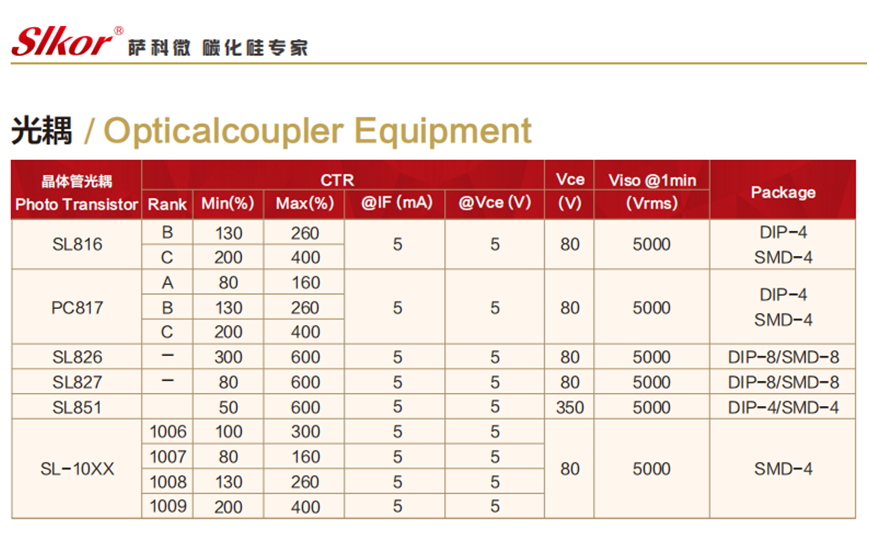

Slkor offers various types of optocoupler products with their respective parameters

Application Background:

Optocouplers are optoelectronic devices that effectively isolate high-voltage and low-voltage circuits, ensuring circuit safety and stability. Optocouplers have wide-ranging applications, especially in situations that require signal isolation and transmission, such as power electronics, industrial automation, medical equipment, and communication devices.

Application Challenges:

In the application of Slkor optocouplers in the field of power electronics, signal transmission between high-voltage and low-voltage circuits has always been a challenging issue. Due to the significant potential difference between high-voltage and low-voltage circuits, direct connection can result in circuit short-circuits or damage. Therefore, optocouplers are necessary for signal isolation and transmission. However, the limited isolation voltage of optocouplers can cause interference, noise, or even circuit damage if the isolation voltage is insufficient. Therefore, in power electronics applications, optocoupler devices with high isolation voltage, good linearity, and fast transmission speed need to be selected to ensure signal transmission and isolation.

Solution:

The Slkor optocoupler SL-1007 is one of the devices in the SL-10XX series. The SL-10XX series devices consist of an infrared emitting diode and a photodetector, enclosed in a 4-pin SOP package. They are halogen-free and do not contain SbzO.

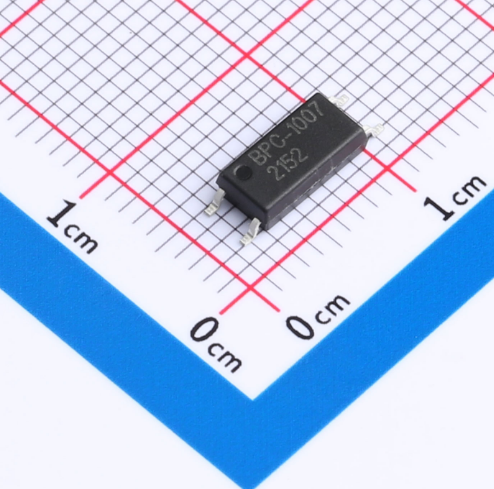

SLKOR optocoupler SL-1007

The SL-1007 optocoupler from Slkormicro is a high-performance optocoupler product with the following parameter specifications:

- Input Voltage Type: DC

- Output Type: Phototransistor

- Number of Output Channels: 1

- Forward Voltage drop: 1.25V

- Reverse Voltage: 6V

- Output Current: 50mA

- Receiver Voltage: 80V

- Collector-Emitter Saturation Voltage (Vce(sat)@Ic,IF): 300mV@1mA, 10mA

- Rise Time: 18us@2mA, 100Ω

- Fall Time: 18us@2mA, 100Ω

- Isolation Voltage (rms): 5kV

- Operating Temperature: -30℃ to +110℃.

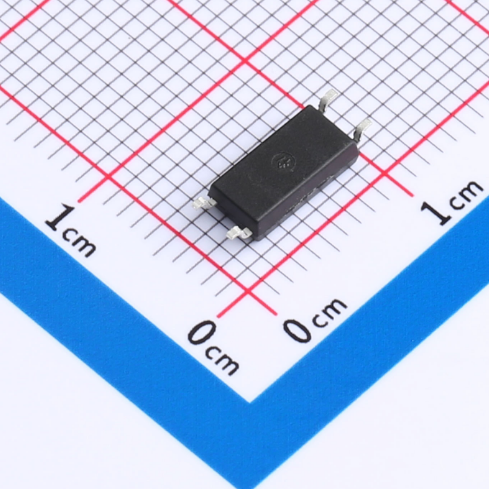

SLKOR optocoupler SL-1007 backside

The excellent performance of the SL-1007 optocoupler from Slkormicro makes it suitable for a wide range of applications, including household appliances, system equipment, telecommunications devices, and measurement instruments. For example, in the field of household appliances, the SL-1007 optocoupler can be used in televisions, audio systems, and other devices. In the area of system equipment, it can be applied in industrial control systems, security systems, and other equipment. In the telecommunications field, the SL-1007 optocoupler is suitable for use in fiber optic communication equipment, optoelectronic conversion devices, and more. In the field of measurement instruments, it can be used in high-precision measurement instruments to achieve signal isolation and anti-interference capabilities.

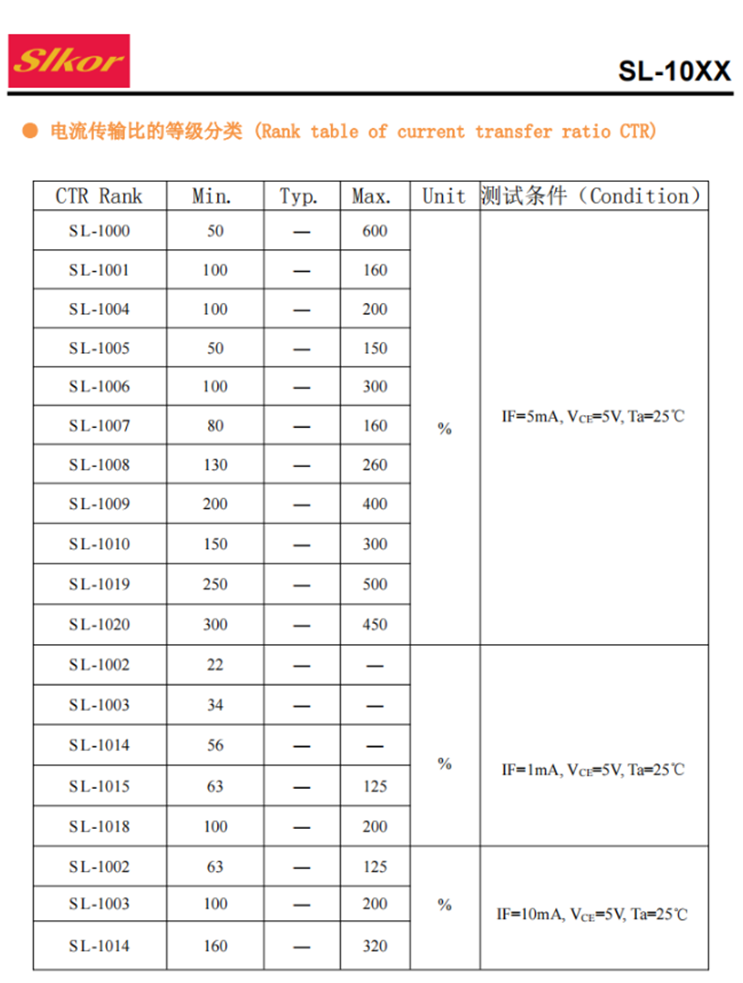

The SL-10XX series devices by Slkormicro

In summary:

The SL-1007 optocoupler is a high-performance and versatile optocoupler product with significant advantages, belonging to the SL-10XX series of devices. The SL-1007 offers high isolation voltage, good linearity, and fast transmission speed, providing users with excellent solutions for signal isolation and transmission. Additionally, it features a small size, lightweight, and easy installation, meeting the requirements of various application scenarios.

About Slkormicro:

Slkormicro Semiconductor Co., Ltd., based in Shenzhen, is a high-tech enterprise that integrates design, research and development, manufacturing, and sales and services. The company's core technology lies in third-generation semiconductor silicon carbide power devices, led by technical experts from Tsinghua University and Yonsei University. Slkormicro's product portfolio includes diodes, transistors, power devices, and power management chips, among others. Under the strong leadership of Mr. Song Shiqiang, the General Manager of Slkormicro and Kinghelm, Slkormicro has transformed from an IP design company for electronic components and power devices into a comprehensive high-tech enterprise.

The "SLKOR" brand has gained a reputable position in the semiconductor industry. Slkormicro's official website, www.slkoric.com, not only showcases their products and promotes the "SLKOR" brand but also serves as a platform for technical exchanges, idea collisions, information sharing, and data queries within the industry. It has become one of the most important platforms for collaborative development in the semiconductor industry. To better serve customers in the Huaqiangbei area, Slkormicro has recently opened its second direct store under the "SLKOR" brand.

Slkormicro's second flagship store has opened in Huaqiang Electronic World

Slkormicro offers a range of products for industrial applications, including silicon carbide (SiC) diodes, SiC MOSFETs, IGBTs, and fifth-generation ultra-fast recovery power diodes. These products meet the high-performance requirements of industries such as new energy vehicles, high-end equipment, communication and power equipment, solar photovoltaics, and medical devices.

For consumer products, Slkormicro provides a variety of power devices such as MOSFETs, thyristors, bridge rectifiers, as well as Schottky diodes, ESD protection diodes, TVS transient voltage suppressor diodes, general-purpose diodes, and transistors. Additionally, Slkormicro offers power management chips, Hall sensors, high-speed optocouplers, and will introduce digital and analog integrated circuit products, aiming to provide customers with more professional and comprehensive services. These products find wide applications in areas such as smartphones, laptops, robots, smart homes, Internet of Things (IoT) and connected vehicles, LED lighting, and 3C digital products.
