Comparison of SL27517 and SL27511: High-Efficiency Low-Side Gate Drivers

In modern power management and driving applications, low-side gate drivers play a crucial role, particularly in driving MOSFETs, IGBTs, and emerging wide-bandgap power devices. Slkor’s SL27517 and SL27511 are two high-performance low-side gate drivers that, while sharing many similar features, differ slightly in terms of pin count and specific parameters.

1. Product Packaging and Pin Configuration

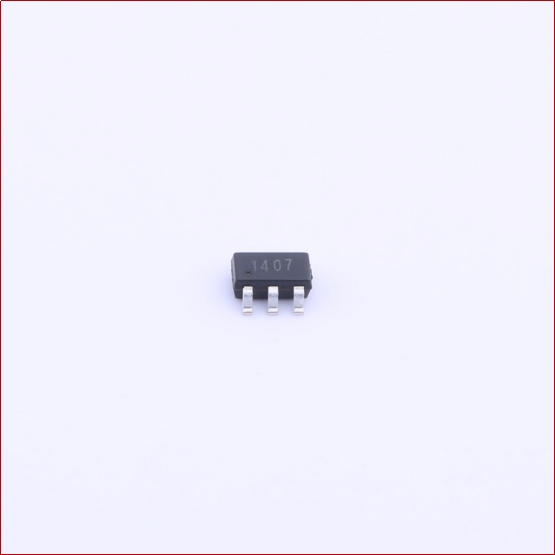

The SL27517 comes in a 5-pin SOT-23 package, while the SL27511 features a 6-pin SOT-23 package. This difference means that their design and layout considerations may vary. For instance, the additional pin on the SL27511 can provide extra functionality or optimized connectivity, which can be a significant advantage in certain designs. The different pin configurations require careful selection based on specific applications, prompting design engineers to consider how the pin layout impacts PCB design.

2. Basic Parameters and Performance

The SL27517 is a single-channel, 4A high-speed low-side gate driver capable of efficiently and safely driving various power devices. One of its main features is its low propagation delay, enabling switching frequencies for MOSFETs to reach several hundred kHz. This high-speed performance is critical for applications requiring rapid switching, especially in data centers and high-performance computing servers, where low latency can significantly enhance overall system efficiency. Additionally, the compact SOT-23 package of the SL27517 helps save board space, making it ideal for miniaturized designs.

The SL27511 is also a single-channel driver but boasts stronger sourcing and sinking capabilities: a peak sourcing current of 4A and a peak sinking current of up to 8A. This makes the SL27511 perform exceptionally well in higher power applications. In scenarios that demand greater drive capability, the SL27511's performance advantages can help designers achieve better drive outcomes.

3. Application Areas

Both drivers are well-suited for synchronous rectification in server and communication power supplies. In these applications, the dead time of the synchronous MOSFET directly impacts converter efficiency. Reduced dead time effectively minimizes power loss, enhances conversion efficiency, and lowers heat generation, thereby improving device reliability. The low propagation delay characteristics of both the SL27517 and SL27511 make them particularly effective in supporting high-frequency switching operations, meeting the stringent demands of modern power conversion.

For example, in high-efficiency power management systems, the SL27517 can enhance converter efficiency through its excellent switching speed, fulfilling the needs of high-power applications. The SL27511, with its higher sinking current capacity, excels in scenarios involving larger loads or higher frequency switching, such as in power management systems for electric vehicles, where it provides stable and efficient drive for motor control.

4. Design Considerations and selection

When choosing between the SL27517 and SL27511, design engineers should consider the specific requirements of their systems. The SL27517 excels in space-constrained applications due to its compact size and fundamental drive capabilities. Conversely, the SL27511 is more suitable for applications requiring higher power handling due to its superior current drive capacity.

Moreover, despite many similarities in performance, engineers should also take into account factors such as supply voltage, ambient temperature, and load characteristics to ensure that the chosen driver can work harmoniously with other components, achieving optimal system performance.

5. Conclusion

In summary, both the SL27517 and SL27511 are outstanding products from Slkor in the realm of low-side gate drivers. Their unique design features and performance advantages enable them to play significant roles in various applications. When making a selection, design engineers should consider multiple factors, including specific requirements, system architecture, and current demands, to ensure optimal power management and system performance.

Whether opting for the SL27517 or the SL27511, users can rely on Slkor’s technical support and services to ensure the best solutions throughout the design and implementation process. These efficient low-side gate drivers not only enhance the performance of electronic devices but also open new possibilities for achieving effective power management.
