Q127. Where are TVS transient suppression diodes used?

188 FAQs|188 FAQs about SLKOR|

2024-10-12 10:20:00 1001

The Role and Applications of TVS Diodes

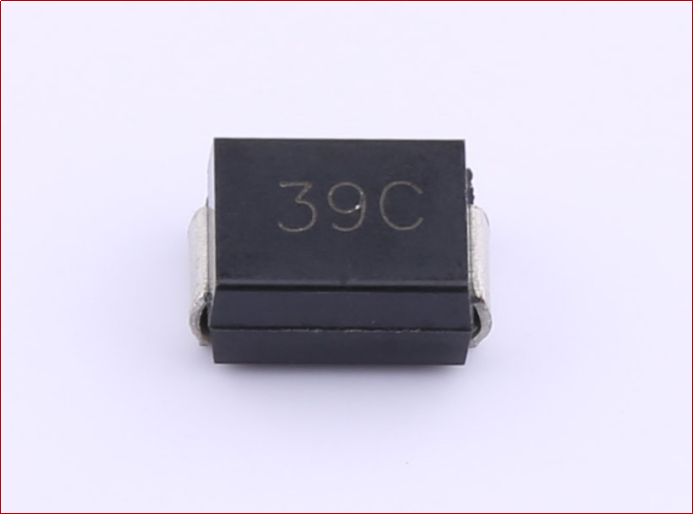

1. What is a TVS Diode?

A TVS (Transient Voltage Suppressor) diode is specifically designed to protect electronic circuits from transient overvoltages, such as surge currents and electrostatic discharges. It can quickly respond to voltage spikes, limiting overvoltage and protecting downstream circuit components from damage.

2. Working Principle of TVS Diodes

The operation of a TVS diode is based on its nonlinear voltage-current characteristics. Under normal operating conditions, the TVS diode is in reverse bias and conducts very little current. However, when a transient overvoltage occurs in the circuit, the TVS diode rapidly switches to a conducting state, diverting excess current to ground and thus limiting the voltage to a safe level. Once the transient voltage disappears, the TVS diode returns to its non-conducting state.

3. Main Functions of TVS Diodes

Overvoltage Protection

The primary function of a TVS diode is to protect circuits from the effects of transient overvoltages. Such overvoltages can be caused by lightning strikes, switching operations, static discharges, etc., which may damage circuit components and even cause device failure.

Enhancing System Reliability

By installing TVS diodes at critical points, the overall reliability of the electronic system can be significantly improved. They help prevent unexpected failures caused by voltage transients, extending the lifespan of devices.

Reducing Maintenance Costs

Since TVS diodes can effectively protect circuits, they reduce the likelihood of device damage, thereby lowering maintenance and repair costs. For mass-produced electronic products, reducing failure rates also means lower production costs.

Compatibility Support

In applications that require connections with other devices, such as USB ports and Ethernet interfaces, TVS diodes can effectively shield against external interference, ensuring the stability and reliability of signal transmission.

4. Applications of TVS Diodes

Consumer Electronics

In consumer electronics such as smartphones, tablets, and televisions, TVS diodes are commonly used in areas like USB ports and HDMI interfaces to protect internal circuits from fluctuations and electrostatic discharge.

Automotive Electronics

With the increasing electronic integration in vehicles, TVS diodes are widely used in automotive applications. For example, they protect critical components such as engine control units (ECUs), sensors, and communication modules from voltage spikes.

Industrial Equipment

In industrial automation equipment, robots, and PLC control systems, TVS diodes are used to protect field buses, sensors, and actuators, ensuring the normal operation of devices in harsh environments.

Communication Equipment

In communication devices such as switches, routers, and base stations, TVS diodes protect data interfaces and power inputs, preventing voltage transients from affecting communication quality.

Medical Devices

Given the critical nature of safety in medical devices, TVS diodes are applied in various medical instruments to prevent transient voltages from damaging the equipment and ensuring patient safety.

5. Considerations When selecting TVS Diodes

When choosing an appropriate TVS diode, consider the following factors:

Rated Power and Peak Pulse Current

Ensure that the rated power and peak pulse current of the selected TVS diode meet the requirements of the specific application.

Working Voltage

The working voltage of the TVS diode should be higher than the normal operating voltage of the circuit but lower than the maximum voltage the circuit can withstand.

Response Time

The shorter the response time of the TVS diode, the better the protection effect. Therefore, for high-frequency applications, choose products with faster response times.

Package Type

select the appropriate package type, such as surface mount or through-hole, based on actual application needs for ease of installation and heat dissipation.

6. Conclusion

TVS diodes play a crucial role in modern electronic devices. They effectively protect circuits from transient overvoltages, enhance system reliability, and reduce maintenance costs, ultimately extending the lifespan of equipment. As electronic technology continues to evolve, the range of applications for TVS diodes will further expand, providing more reliable protection for electronic devices across various industries.
