170.Main Applications of Slkor's IGBT Products

FAQs|FAQs about SLKOR|

2025-03-18 10:55:48 1029

IGBT (Insulated Gate Bipolar Transistor) is a composite voltage-driven power semiconductor device that combines the advantages of two distinct types of transistors: the BJT (Bipolar Junction Transistor) and MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor). This combination allows IGBTs to operate efficiently in high-power applications, offering the best of both worlds: the high input impedance and ease of control of a MOSFET, and the ability to handle large currents and voltages like a BJT. As a result, IGBTs play a pivotal role in modern power electronics and have become integral to various high-performance industries. Slkor's IGBT products, in particular, are designed to take full advantage of these characteristics, offering several benefits that make them highly sought after in numerous industrial applications.

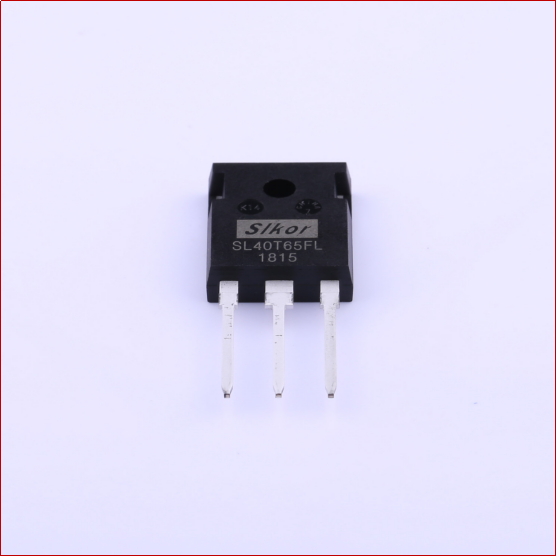

Slkor's IGBT products

Key Features and Advantages of IGBTs

1. High Input Impedance

One of the primary advantages of IGBTs is their high input impedance. This feature means that the gate of the IGBT requires minimal input current to operate, making the control circuit simpler and more efficient. The high input impedance reduces the power consumed by the driver circuit, which is particularly beneficial for high-speed switching and large-scale systems.

2. Low Control Power

Another benefit of IGBT technology is the low control power required for operation. This feature is especially important in power electronics, where efficiency is critical. The reduced power consumption of the driver circuit allows for more energy-efficient systems, which is vital in industries where operational costs and energy consumption are major concerns.

3. Ease of Driving

IGBTs are easy to drive due to their gate voltage control, which means they can be controlled by standard MOSFET gate drivers. This feature makes IGBTs easier to integrate into existing systems that use MOSFETs and reduces the complexity of circuit designs, lowering the cost and time involved in developing new systems.

4. High Switching Frequency

IGBTs are capable of operating at high switching frequencies, making them ideal for applications where fast switching is necessary. High-frequency switching allows for the use of smaller and more efficient passive components such as inductors and capacitors. This leads to more compact designs, lower system costs, and higher overall system efficiency.

5. Large Conduction Current

IGBTs are known for their ability to handle large conduction currents. Unlike MOSFETs, which can struggle to conduct large currents, IGBTs are well-suited for high-power applications where large current flows are required. This characteristic makes them indispensable in industrial power systems, motor drives, and renewable energy systems.

6. Low Conduction Loss

The IGBT's ability to switch efficiently with low conduction losses makes it highly suitable for power conversion applications. Conduction loss refers to the power lost due to the resistance in the device when it is on. IGBTs, particularly those designed for high-efficiency operation, exhibit very low conduction losses, leading to reduced waste heat and higher overall system efficiency.

Due to these advantages, IGBTs are widely used in several industries, providing a critical role in applications ranging from energy conversion to transportation. Below are some of the key sectors where Slkor's IGBT products are applied:

Industries Utilizing IGBT Technology

1. New Energy Vehicle Industry

The rise of electric vehicles (EVs) and hybrid vehicles has created a significant demand for efficient power semiconductor devices. IGBTs are essential components in the powertrains of new energy vehicles. They are used in electric motor drives, battery management systems, and DC-DC converters to control the flow of electrical energy and enable smooth, efficient vehicle operation. With the increasing focus on reducing the environmental impact of transportation, IGBTs help maximize energy efficiency, extending the range of EVs and improving overall performance.

2. Electric Power Industry

In the electric power industry, IGBTs are widely employed in power converters, inverters, and rectifiers. These devices are critical for converting electrical energy between AC (alternating current) and DC (direct current) in renewable energy systems, such as solar and wind power generation. IGBTs enable efficient switching in power conversion circuits, improving grid stability and the integration of renewable energy sources into existing power grids. They are also used in high-voltage direct current (HVDC) transmission systems, where efficient power conversion is necessary for long-distance transmission.

3. Rail Transportation Industry

The rail transportation industry relies heavily on IGBTs for the operation of electric trains and high-speed rail systems. IGBTs are used in traction inverters, which convert DC from the power supply into AC to drive electric motors. The high switching speed and efficiency of IGBTs make them ideal for controlling the motors in electric trains, enabling smooth acceleration, deceleration, and improved energy efficiency. IGBTs also contribute to reducing the weight and size of the equipment, which is crucial in modern rail systems, where space and energy efficiency are of paramount importance.

4. Industrial Automation Industry

IGBTs are key components in industrial automation systems, including robotics, motor drives, and programmable logic controllers (PLCs). In motor control applications, IGBTs are used in inverters and variable frequency drives (VFDs) to control the speed and torque of motors. This allows for precise motion control, which is essential in industries such as manufacturing, assembly, and materials handling. Additionally, IGBTs play a significant role in industrial power supplies, where high efficiency and reliable operation are crucial for maintaining continuous production and reducing downtime.

5. Home Appliance Industry

The home appliance industry has also seen a growing adoption of IGBTs in various products, such as air conditioners, refrigerators, washing machines, and heating systems. IGBTs are used in power supply circuits, motor drives, and compressors, enabling energy-efficient operation of these devices. With the increasing demand for smart appliances that are both energy-efficient and reliable, IGBTs help reduce energy consumption, improve performance, and extend the lifespan of home appliances.

6. Aerospace and *Industry

In the aerospace and*industry, IGBTs are used in a variety of critical applications, such as power conversion systems for aircraft and satellite systems. IGBTs are employed in electrical propulsion systems, power distribution systems, and backup power systems, where efficiency, reliability, and performance are crucial. Their high switching speed, low conduction losses, and high thermal performance make them ideal for aerospace applications that require the handling of high power levels while maintaining safety and efficiency.

Conclusion

Slkor's IGBT products are indispensable components in modern power electronics. Their high input impedance, low control power, ease of driving, high switching frequency, large conduction current capability, and low conduction loss make them suitable for a wide array of applications. From the new energy vehicle industry to the aerospace and*sector, IGBTs enable the development of energy-efficient, high-performance systems across numerous industries. As technology continues to evolve and the demand for efficient energy conversion and control grows, IGBTs will remain at the forefront of power electronics, driving innovation and sustainability in various sectors.
